AA63-BCMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

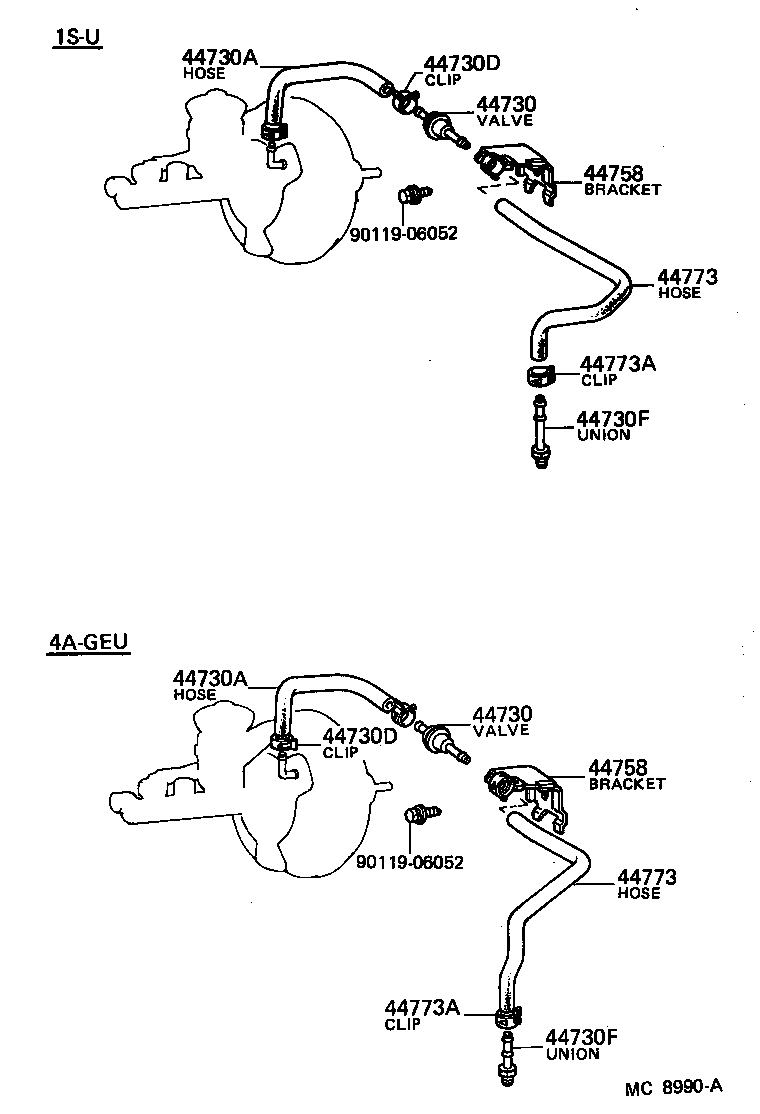

ILLUST NO. 2 OF 2(8107-8507)AA63,SA60

Click highlighted areas on diagram

diagram 44730 44730 44730A 44730A 44730D 44730D 44730F 44730F 44758 44758 44773 44773 44773A 44773A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AA63,GA61,MA6#,RA63,SA60,TA6#

 4
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AA63,GA61,MA6#,RA63,SA60,TA6#

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51020

AA63

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51020

AA63

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

RA63,SA60,TA61,63..GT,GTR,ST,SV,SX

 1
44773 - HOSE, VACUUM, NO.2
44773-14390

AA63

 1
44773 - HOSE, VACUUM, NO.2
44773-14390

AA63

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AA63,GA61,MA6#,RA63,SA60,TA6#

 2
Common parts
90119-06052

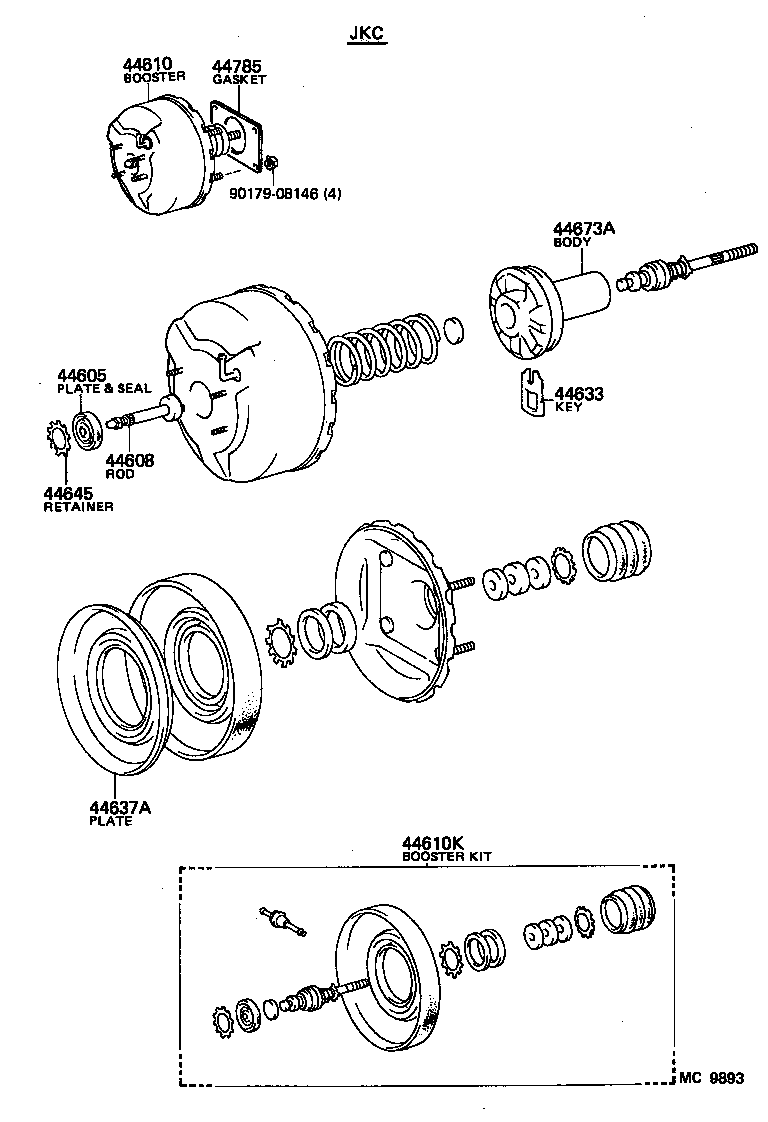

ILLUST NO. 1 OF 2(8308-8507)AA63,TA63

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44637A 44645 44673A 44785 9017908146
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AA63,TA63

 1
44610 - BOOSTER ASSY, BRAKE
44610-24020

GA61,MA61,RA63,TA61,63..GT,GTR,ST,SX

 1
44610-14650

AA63

 1
44610K - BOOSTER KIT, BRAKE
04443-14450

AA63

 1
04443-24010

GA61,MA61,RA63,TA61,63..G,GT,GTR,L,S,ST,SX

JKC

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AA63,TA63

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

AA63,TA63

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
44673A - BODY, BOOSTER VALVE
44673-32040

AA63,TA63

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

AA63,GA61,MA6#,RA63,SA60,TA6#

 1
Common parts
90179-08146
