TA67V-AXMFSW (1981)
Toyota Carina Fr
(8109- )SED,V,WG

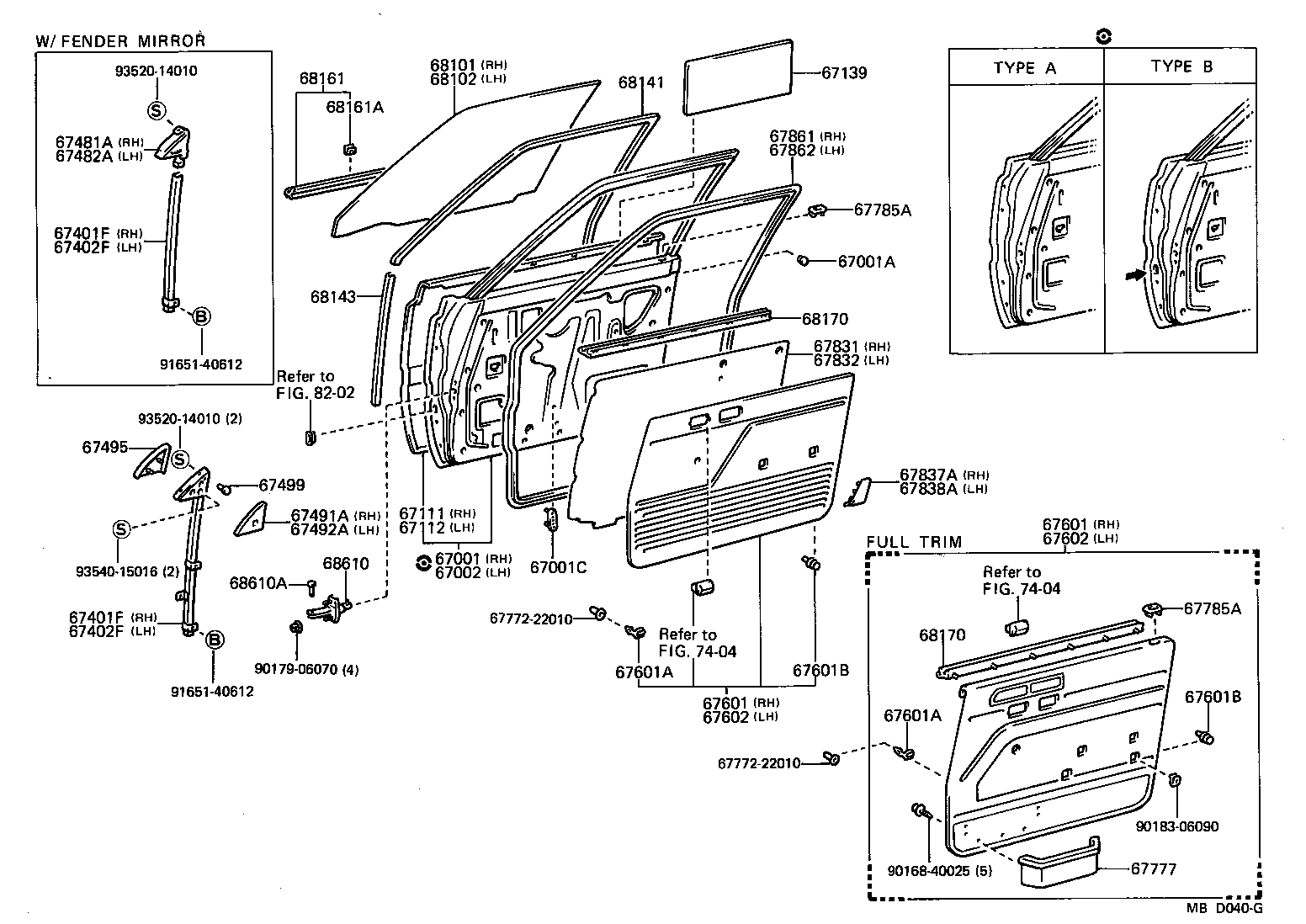

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-14140 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG W/O HARNESS HOLE(TYPE A) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
4 | ||
| 67001C - GROMMET(FOR FRONT DOOR PANEL) | ||||
| 90541-07011 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-14240 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG W/O HARNESS HOLE(TYPE A) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-14160 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-14170 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67812-20050 |
AA60,CA6#,RA63,SA60,TA6# |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-14110 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-14110 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-14110 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-14110 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-14040 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-14030 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1B41001 |
KA67,TA67..SG BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1B41006 |
KA67,TA67..SG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1B41001 |
KA67,TA67..SG BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1B41006 |
KA67,TA67..SG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
22 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
22 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B11001 |
CA67,KA67,TA67..SG BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1B11006 |
CA67,KA67,TA67..SG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B11001 |
CA67,KA67,TA67..SG BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1B11006 |
CA67,KA67,TA67..SG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CA67,TA67..SG |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CA67,TA67..SG |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-14100 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-14040 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-14230 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-14230 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-14250 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG *TT,厚さ=4.0,T=4.0,*TT |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-14260 |
AA60,CA6#,RA63,SA60,TA6#..SED,V,WG *TT,厚さ=4.0,T=4.0,*TT |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-91C01 |
CA67,KA67,TA67 |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-91C01 |
CA67,KA67,TA67 |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-14140 |
CA67,KA67,TA67..SG RH |
1 | ||
| 68220-14110 |
CA67,KA67,TA67..SG LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-14140 |
CA67,KA67,TA67..SG RH |
1 | ||
| 68220-14110 |
CA67,KA67,TA67..SG LH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-14030 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
2 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 90183-06090 | ||||
| 91651-40612 | ||||
| 93520-14010 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8202 | ||||
