TA67V-AXKRSW (1981)
Toyota Carina Fr

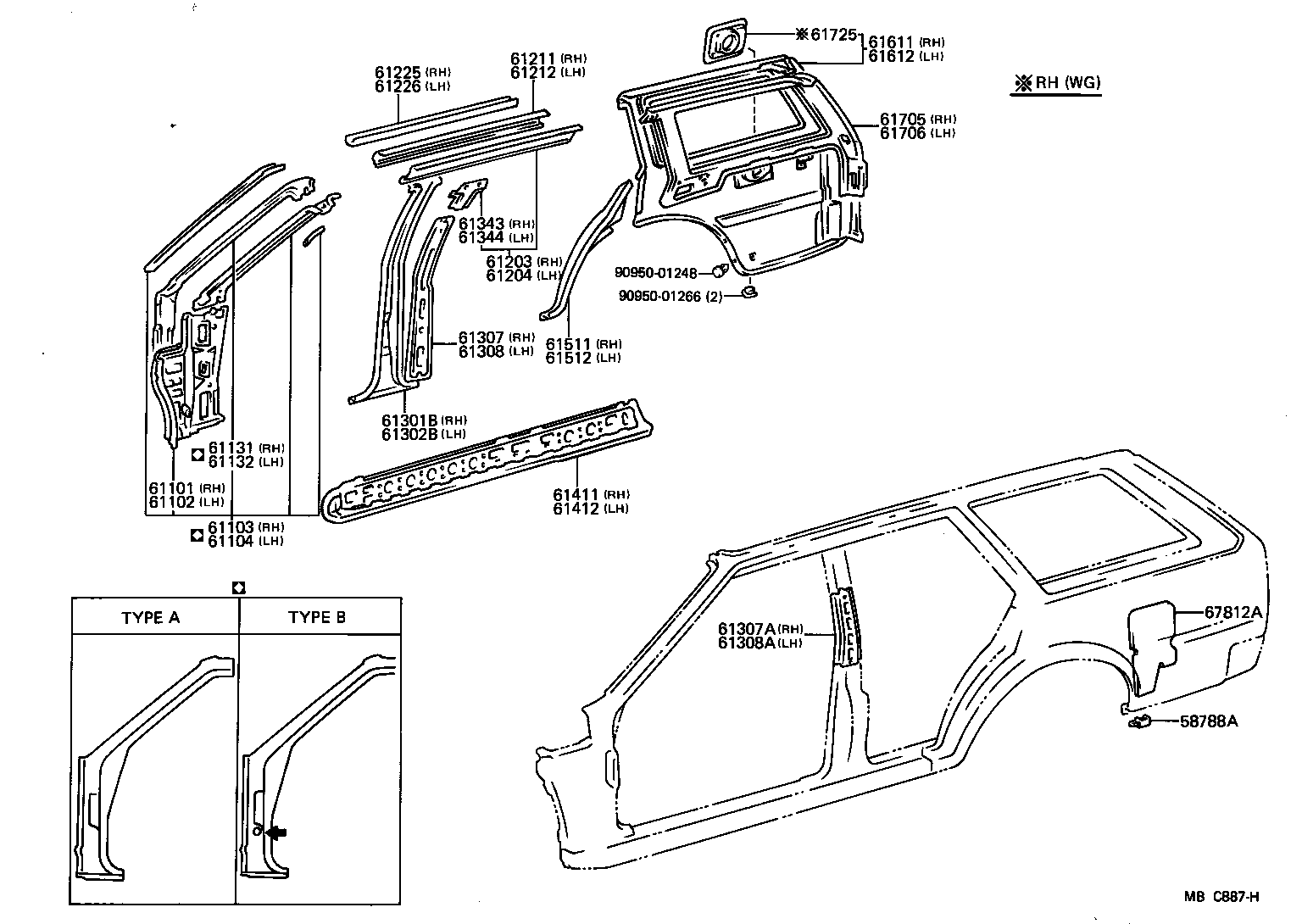

ILLUST NO. 1 OF 2(8109- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58788A - CLIP, JACK HANDLE | ||||
| 58788-13010 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-14100 |
AA60,CA6#,KA67,SA60,TA63,67..(SED,V,WG)..(DLX,GTT,SG,ST,STD) W/FENDER ANTENNA |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-14090 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14170 |
AA6#,CA6#,KA67,SA60,TA63,67..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD) W/FENDER ANTENNA,TYPE A |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14190 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG W/O HARNESS HOLE(TYPE A) |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61027-14120 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG W/O HARNESS HOLE(TYPE A) |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61028-14100 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG W/O HARNESS HOLE(TYPE A) |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-14060 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-14060 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61343-14050 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61307A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61344-14050 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61308A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH | ||||
| 61338-14010 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-14040 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-14040 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-14900 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-14901 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-91790 |
CA67,KA67,TA67 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-91790 |
CA67,KA67,TA67 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-91C01 |
CA67,KA67,TA67 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-91C01 |
CA67,KA67,TA67 |
1 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| Common parts | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
ILLUST NO. 2 OF 2(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-91790 |
CA67,KA67,TA67 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-91C01 |
CA67,KA67,TA67 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-91C01 |
CA67,KA67,TA67 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-91C01 |
CA67,KA67,TA67 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-91C01 |
CA67,KA67,TA67 |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-91790 |
CA67,KA67,TA67 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14120 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14120 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14120 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14120 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 55299-30010 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01270 | ||||
