TA67V-AXKFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

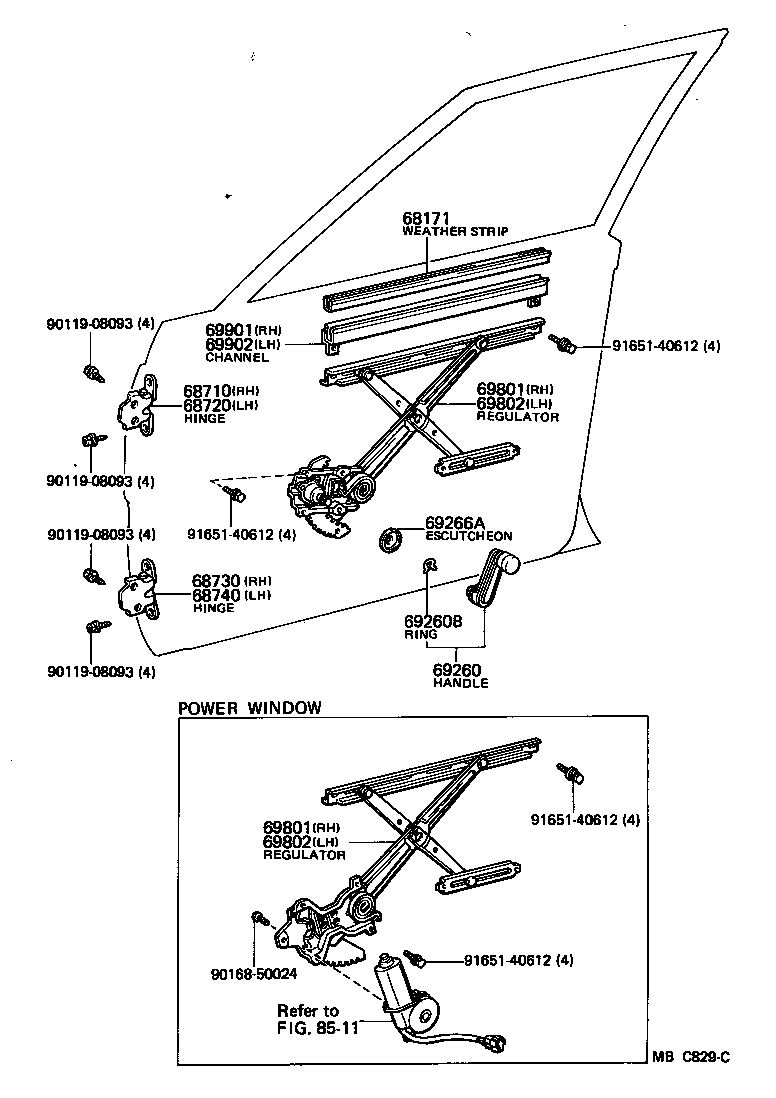

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69801 69802 69802 69901 69902 8511 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402006

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 2
69260-1402001

AA60,CA6#,RA63,SA60,TA6#..CP,SED,V

BLACK,BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AA60,CA6#,RA63,SA60,TA6#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-2201008

AA60,CA6#,RA63,SA60,TA6#

NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14120

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14120

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14110

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14110

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-14070

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-14070

AA60,CA6#,RA63,SA60,TA6#..SED,V,WG

 1
Common parts
90119-08093
90168-50024
91651-40612
Linked diagrams
8511
