TA67V-AXKDSW (1981)
Toyota Carina Fr

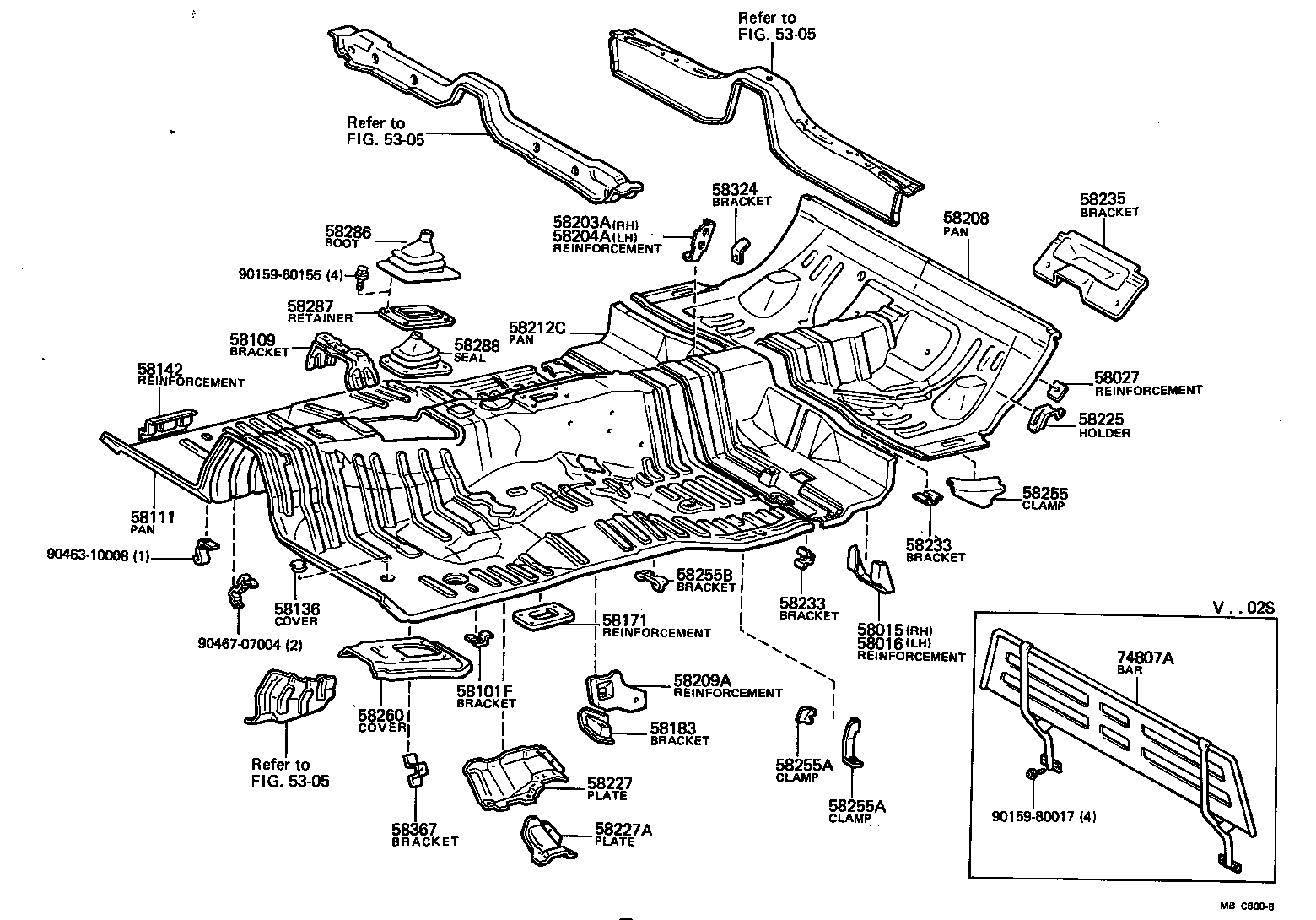

ILLUST NO. 1 OF 2(8109- )CA67,KA67,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 57443-91C02 |
CA67,KA67,TA67 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 57443-91C02 |
CA67,KA67,TA67 |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58273-91255 |
CA67,KA67,TA67 |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
8 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# LH |
1 | ||
| 58183-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# RH |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58213-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58213-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# LH |
1 | ||
| 58277-24010 |
AA60,CA6#,SA60,TA67 RH |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58225 - HOLDER, REAR SEAT CUSHION | ||||
| 58225-91C01 |
CA67,KA67,TA67 |
2 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# RH |
1 | ||
| 58227-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# LH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58228-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# RH |
1 | ||
| 58229-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# LH |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-91255 |
CA67,KA67,TA67 |
2 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-91255 |
CA67,KA67,TA67 |
2 | ||
| 58235 - BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING | ||||
| 58235-91255 |
CA67,KA67,TA67 |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58038-91C01 |
CA67,KA67,TA67 RH |
1 | ||
| 58039-91C01 |
CA67,KA67,TA67 LH |
1 | ||
| 58255A - CLAMP, PARKING BRAKE CABLE, NO.2 | ||||
| 58265-91255 |
CA67,KA67,TA67 RH |
1 | ||
| 58276-91255 |
CA67,KA67,TA67 LH |
1 | ||
| 58255A - CLAMP, PARKING BRAKE CABLE, NO.2 | ||||
| 58265-91255 |
CA67,KA67,TA67 RH |
1 | ||
| 58276-91255 |
CA67,KA67,TA67 LH |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-14010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-14080 |
CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-14060 |
CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-14040 |
CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-14070 |
CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 58326-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14040 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 90159-60155 | ||||
| 90159-80017 | ||||
| 90463-10008 | ||||
| 90467-07004 | ||||
| Linked diagrams | ||||
| 5305 | ||||

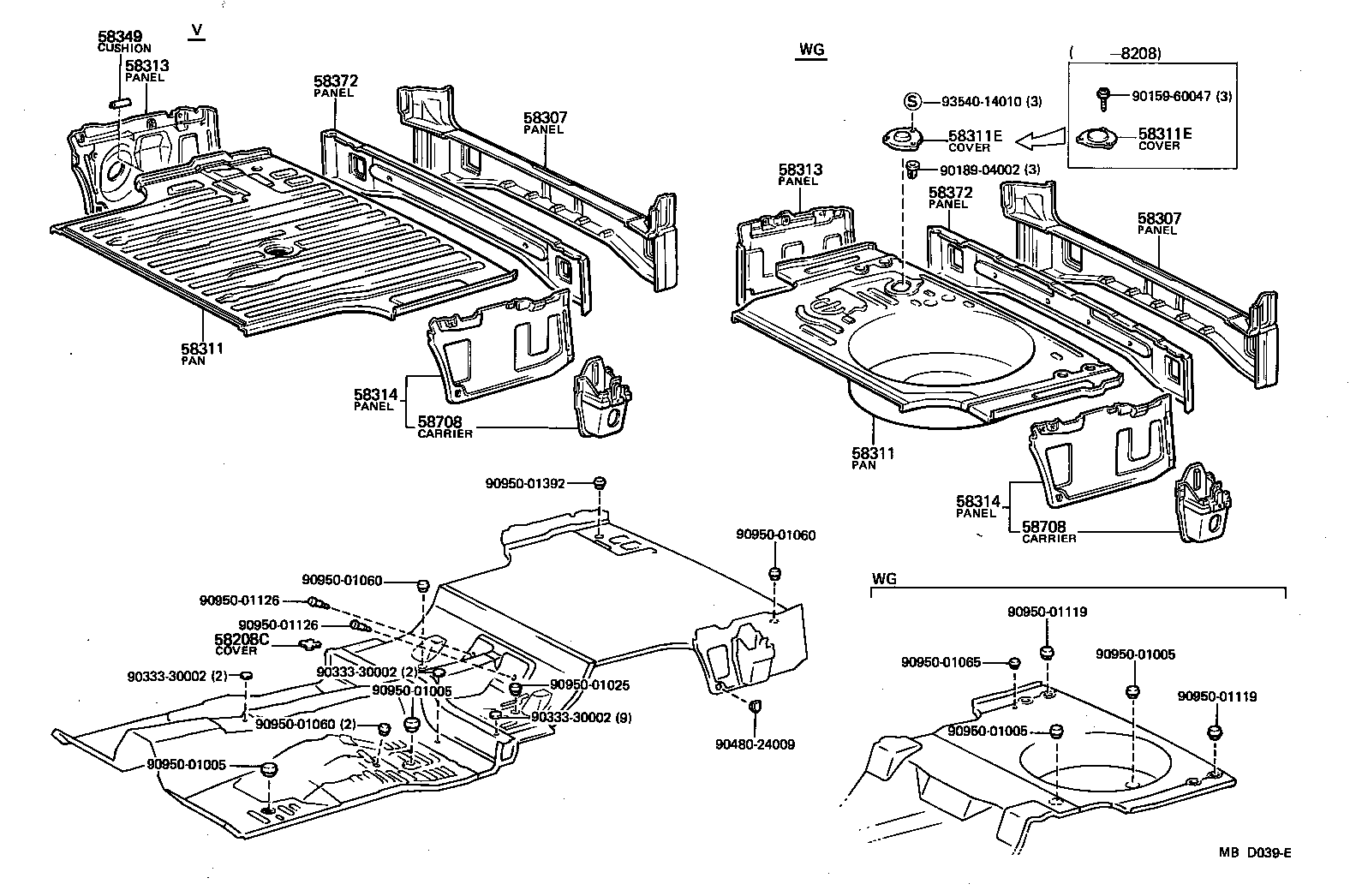

ILLUST NO. 2 OF 2(8109- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58208C - COVER, CENTER FLOOR HOLE | ||||
| 58285-14010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58306-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58306-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58349 - CUSHION, REAR FLOOR SIDE | ||||
| 58349-91600 |
CA67,KA67,TA67 |
1 | ||
| 58372 - PANEL, BODY LOWER BACK, INNER | ||||
| 58372-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58372 - PANEL, BODY LOWER BACK, INNER | ||||
| 58372-91C01 |
CA67,KA67,TA67 |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-15020 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-15020 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90480-24009 | ||||
| 90950-01005 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01119 | ||||
| 90950-01126 | ||||
| 90950-01392 | ||||
| 93540-14010 | ||||
