TA67V-AXKDSW (1981)
Toyota Carina Fr
Production
Sep 1981
-
Aug 1983
Engine
12TJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8308)12TJ

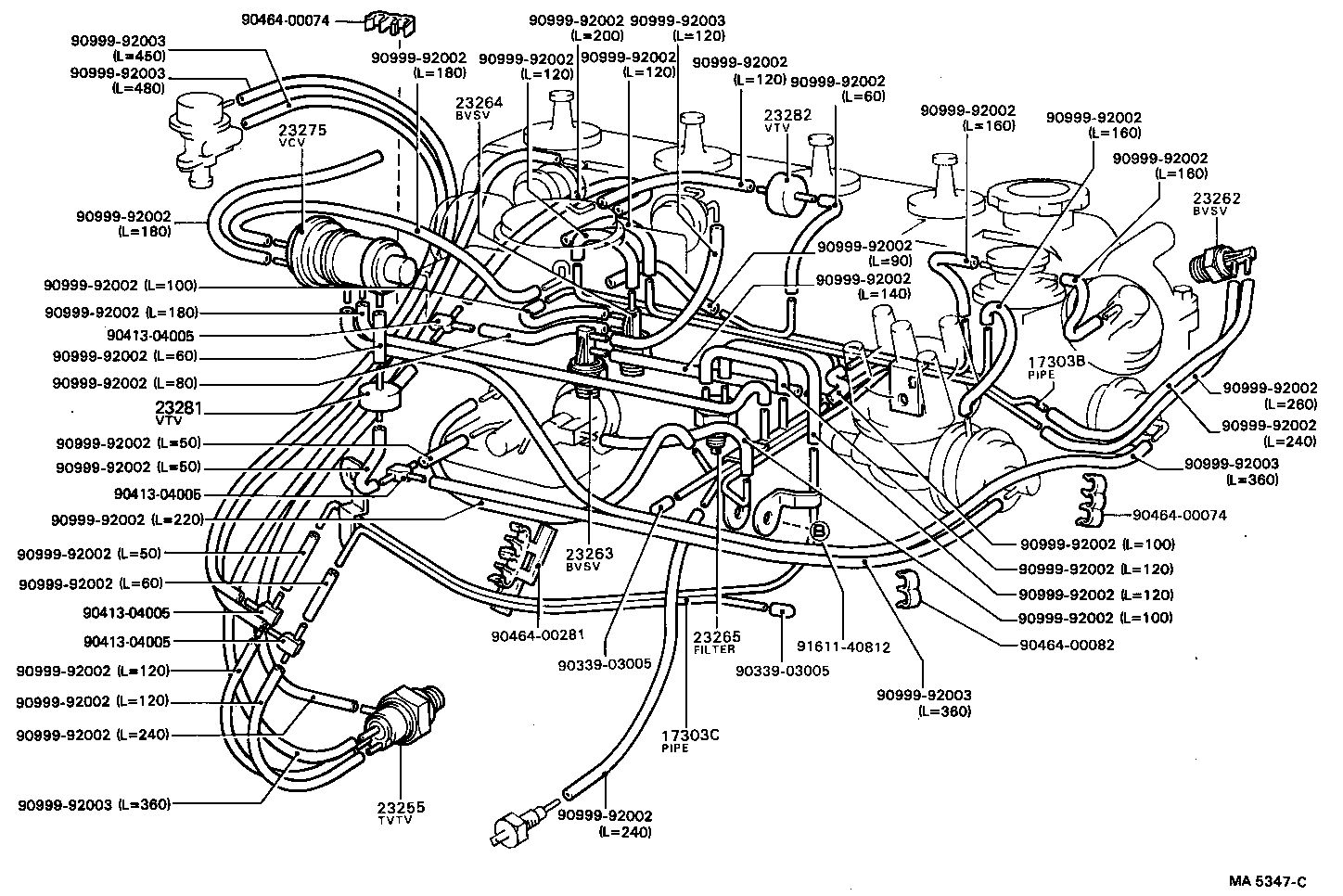

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-18060 |
12TJ..TA67 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17303-27050 |
12TJ..TA67 |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01085 |
12TJ..TA67 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
12TJ..TA67 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05058 |
12TJ..TA67 |
1 | ||
| 23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3 | ||||
| 25810-24010 |
12TJ..TA67 |
1 | ||
| 25810-24020 |
12TJ..TA67 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
12TJ..TA67 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03121 |
12TJ..TA67 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01080 |
12TJ..TA67 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
12TJ..TA67 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00281 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40812 | ||||
(8109- )12TJ,2TGEU,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
