TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8804)V,WG

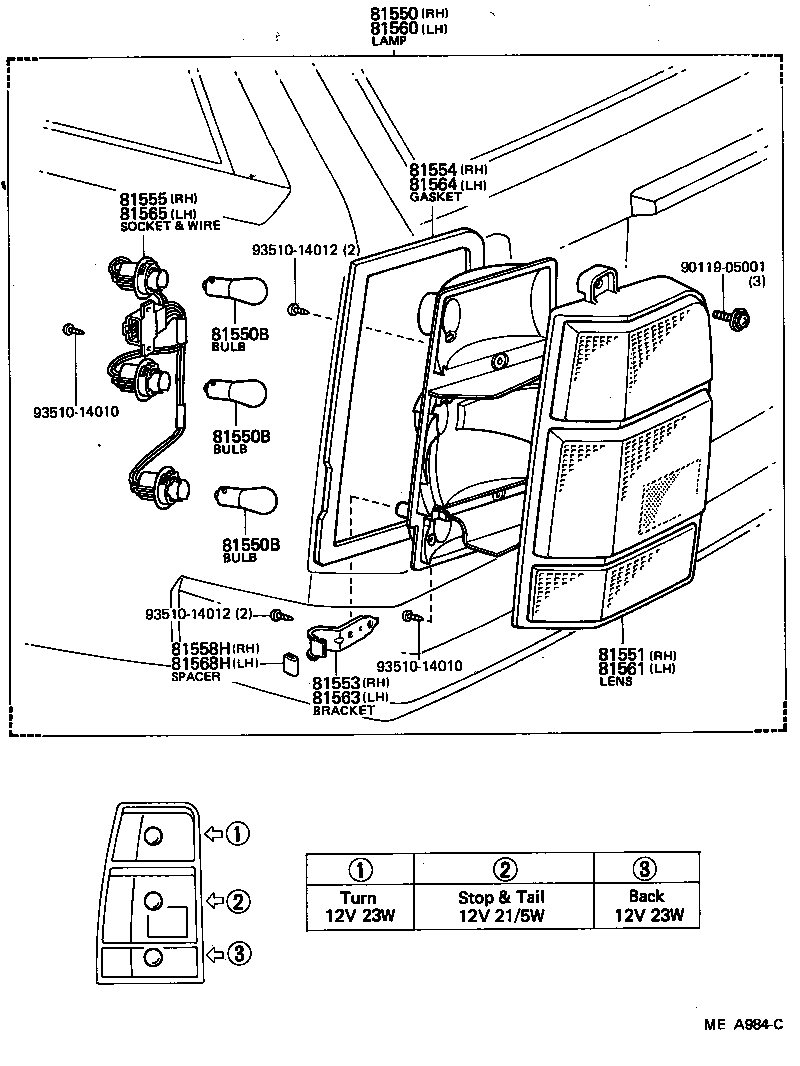

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81553 81554 81555 81558H 81560 81561 81563 81564 81565 81568H 9011905001 9351014010 9351014010 9351014012 9351014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80110

CA67,KA67,SA60,TA67..V,WG

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 2
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 2
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 21/5W,12V 21/5W

 2
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
81557-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81558H - SPACER, REAR COMBINATION LAMP, RH
81558-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80114

CA67,KA67,SA60,TA67..V,WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
81557-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91C01

CA67,KA67,SA60,TA67..V,WG

 1
81568H - SPACER, REAR COMBINATION LAMP, LH
81558-91C01

CA67,KA67,SA60,TA67..V,WG

 1
Common parts
90119-05001
93510-14010
93510-14012
