TA67V-AXHFSW (1981)
Toyota Carina Fr
ILLUST NO. 2 OF 2(8109-8308)TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91C01 |
TA67 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
TA67 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KA67,TA67 *H,L=200 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-91C02 |
TA67 |
1 | ||
| 77261-91C01 |
TA67 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AA60,RA63,SA60,TA6# *H,L=260 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
KA67,TA67 *H,L=280 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-91C01 |
TA67 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
TA67 *H,L=280 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
KA67,TA67 *H,L=220 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77273-20010 |
TA67 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-14230 |
AA60,SA60,TA67 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19930 |
TA67 *H,L=260,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
AA60,SA60,TA67 *H,L=130,内径=7.6 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
TA67 *H,L=330,ﾏｰｸ=#* |
1 | ||
| 95411-19930 |
TA67 *H,L=300,ﾏｰｸ=#* |
1 | ||
| 77740E - HOSE, FUEL, NO.5(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
TA67 *H,L=360,ﾏｰｸ=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14070 |
AA60,RA63,SA60,TA6# |
1 | ||
| 77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23819-27020 |
AA63,RA63,SA60,TA6# |
1 | ||
| 77740H - TUBE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 23818-27010 |
TA67 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-14090 |
AA60,SA60,TA67 |
1 | ||
| Common parts | ||||
| 90461-06488 | ||||
| 90461-07019 | ||||
| 90461-08517 | ||||
| 90463-06038 | ||||
| 90464-00020 | ||||
| 90467-12011 | ||||
| 90480-07454 | ||||
| 90480-17002 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

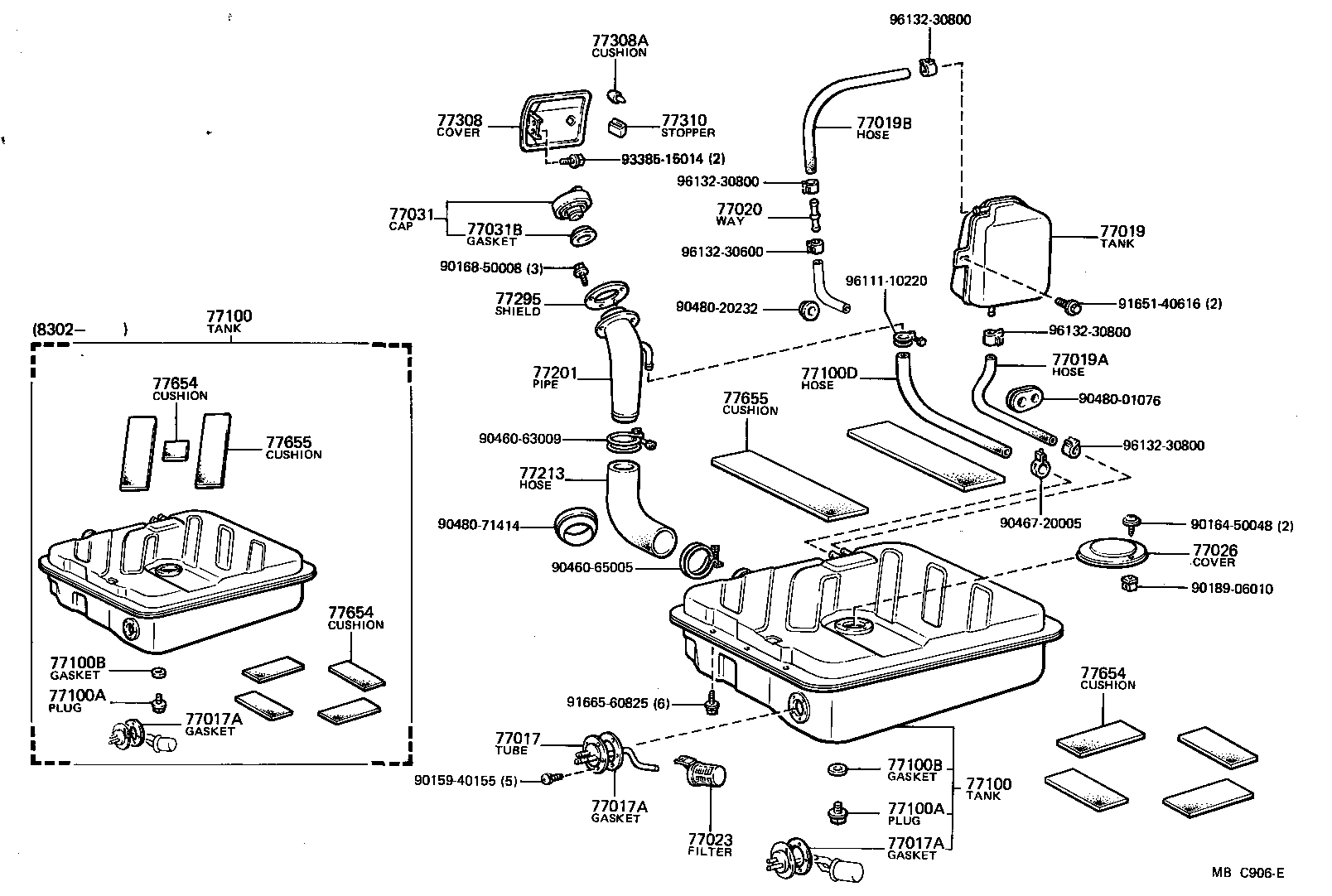

ILLUST NO. 1 OF 2(8109- )CA67,KA67,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-91C02 |
KA67,TA67 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-20030 |
CA67,KA67,TA67 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-20030 |
CA67,KA67,TA67 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-20030 |
CA67,KA67,TA67 |
1 | ||
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77191-21010 |
CA67,KA67,TA67 |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 95332-08060 |
CA67,KA67,TA67 *H,L=480,内径=7.6 |
1 | ||
| 77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK) | ||||
| 95332-08060 |
CA67,KA67,TA67 *H,L=460,内径=7.6 |
1 | ||
| 77020 - WAY, 2(FOR FUEL EXPANSION TANK) | ||||
| 90412-08001 |
CA67,KA67,TA67 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AA60,KA67,SA60,TA67 |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91600 |
CA67,KA67,TA67 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AA60,CA6#,RA63,SA60,TA6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19125 |
TA67 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19125 |
TA67 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
CA67,KA67,TA67 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
CA67,KA67,TA67 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CA67,KA67,TA67 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CA67,KA67,TA67 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22012 |
CA67,KA67,TA67 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91258 |
CA67,KA67,TA67 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91C01 |
CA67,KA67,TA67 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-12010 |
CA67,KA67,TA67 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91C01 |
CA67,KA67,TA67 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CA67,KA67,TA67 |
2 | ||
| 77310 - STOPPER, FUEL INLET BOX | ||||
| 77358-20010 |
CA67,KA67,TA67 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CA67,KA67,TA67 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CA67,KA67,TA67 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CA67,KA67,TA67 100X200 |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-91602 |
CA67,TA67 100X450 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-91602 |
CA67,TA67 100X450 |
2 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90164-50048 | ||||
| 90168-50008 | ||||
| 90189-06010 | ||||
| 90460-63009 | ||||
| 90460-65005 | ||||
| 90467-20005 | ||||
| 90480-01076 | ||||
| 90480-20232 | ||||
| 90480-71414 | ||||
| 91651-40616 | ||||
| 91665-60825 | ||||
| 93385-15014 | ||||
| 96111-10220 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
