TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )V,WG

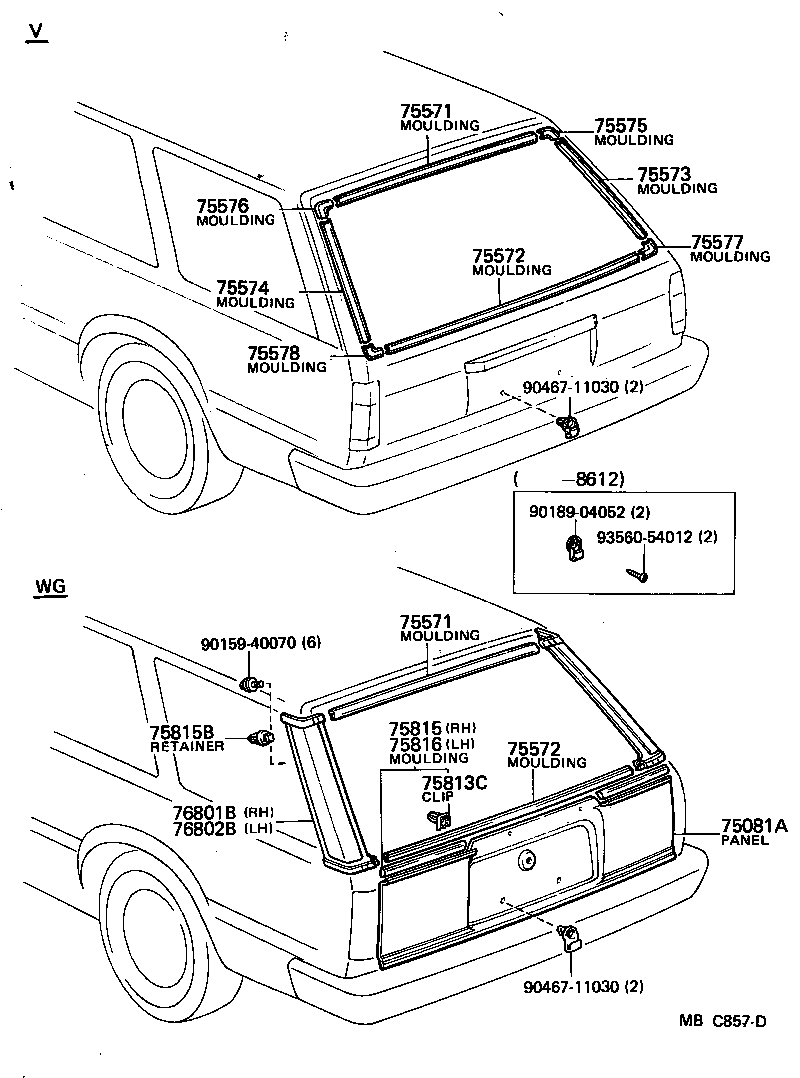

Click highlighted areas on diagram

diagram 75081A 75571 75571 75572 75572 75573 75574 75575 75576 75577 75578 75813C 75815 75815B 75816 76801B 76802B 9015940070 9018904052 9046711030 9046711030 9356054012
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91C01

CA67,KA67,TA67..DLX,SG

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91C01

CA67,KA67,TA67..DLX,SG

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-91C01

CA67,KA67,TA67..DLX,SG

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-91C01

CA67,KA67,TA67..DLX,SG

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-91C01

CA67,KA67,TA67..DLX,SG

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-91C01

CA67,KA67,TA67..DLX,SG

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-91C01

CA67,KA67,TA67..DLX,SG

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-91C01

CA67,KA67,TA67..DLX,SG

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75583-91C01

CA67,KA67,TA67..DLX,SG

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75583-91C01

CA67,KA67,TA67..DLX,SG

 1
Common parts
90159-40070
90189-04052
90467-11030
93560-54012
