TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )CA67,KA67,TA67..05S

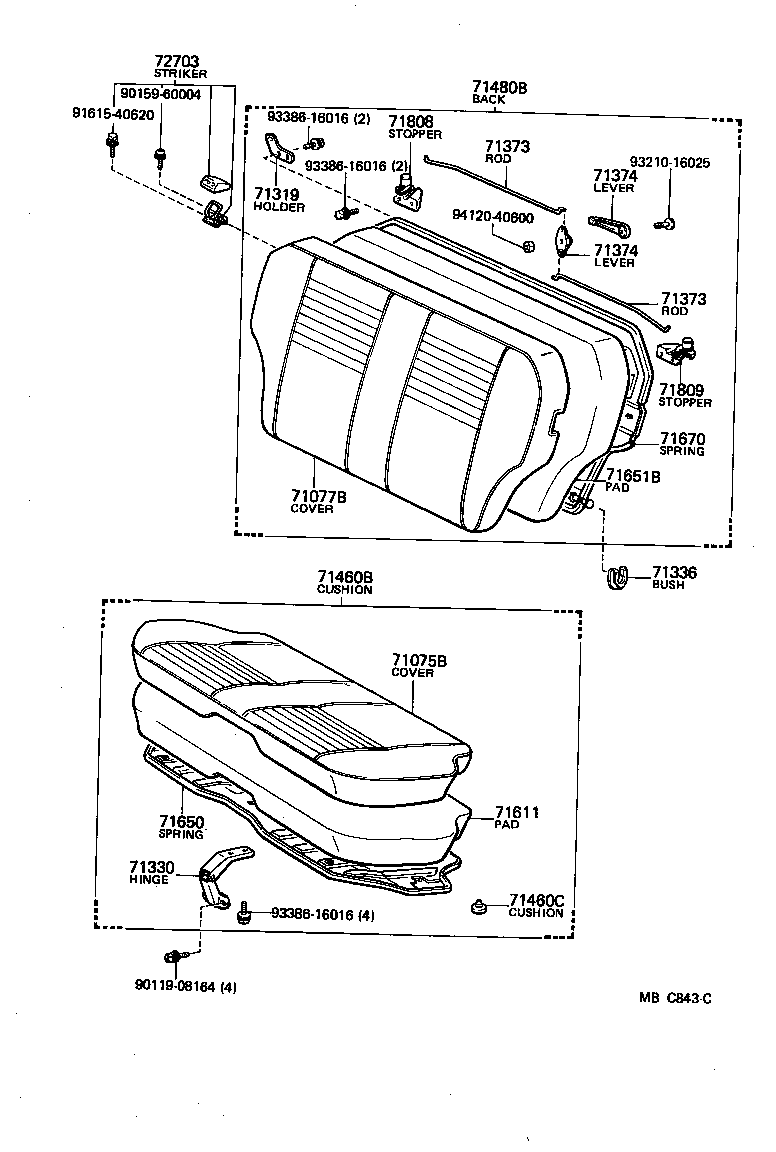

Click highlighted areas on diagram

diagram 71075B 71077B 71319 71330 71336 71373 71373 71374 71374 71460B 71460C 71480B 71611 71650 71651B 71670 71808 71809 72703 9011908164 9015960004 9161540620 9321016025 9338616016 9338616016 9388616016 9412040600
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-91C0301

CA67,TA67..SG

FB,BLACK,BLACK,TRIM2#

 1
71075-91C0305

CA67,TA67..SG

FB,BEIGE,BEIGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-91C0301

CA67,TA67..SG

FB,BLACK,BLACK,TRIM2#

 1
71077-91C0305

CA67,TA67..SG

FB,BEIGE,BEIGE,TRIM4#

 1
71319 - HOLDER, REAR SEAT BACK
71398-13010

CA67,KA67,TA67..05S

 1
71330 - HINGE ASSY, REAR SEAT CUSHION
71301-91C01

CA67,KA67,TA67..05S

 1
71336 - BUSH OR SPACER, REAR SEAT BACK HINGE
90386-12021

AA6#,CA67,KA67,RA63,SA60,TA6#..(CP,V,WG)..05S

 2
71373 - ROD, REAR SEAT BACK LOCKING
72651-91C01

CA67,KA67,TA67..05S

RH

 1
72652-91C01

CA67,KA67,TA67..05S

LH

 1
71373 - ROD, REAR SEAT BACK LOCKING
72651-91C01

CA67,KA67,TA67..05S

RH

 1
72652-91C01

CA67,KA67,TA67..05S

LH

 1
71374 - LEVER, REAR SEAT BACK ROD CONTROL
72636-13010

CA67,KA67,TA67..05S

OUTER

 1
72637-13030

CA67,KA67,TA67..05S

INNER

 1
71374 - LEVER, REAR SEAT BACK ROD CONTROL
72636-13010

CA67,KA67,TA67..05S

OUTER

 1
72637-13030

CA67,KA67,TA67..05S

INNER

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-91C0301

CA67,TA67..SG

FB,BLACK,BLACK,TRIM2#

 1
71460-91C0305

CA67,TA67..SG

FB,BEIGE,BEIGE,TRIM4#

 1
71460C - CUSHION (FOR REAR SEAT CUSHION)
90541-09011

CA67,KA67,TA67..05S

 3
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-91C0301

CA67,TA67..SG

FB,BLACK,BLACK,TRIM2#

 1
71480-91C0305

CA67,TA67..SG

FB,BEIGE,BEIGE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-91C02

CA67,KA67,TA67..05S

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71201-91C01

CA67,KA67,TA67..05S

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-15020

CA67,KA67,TA67..05S

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71202-91C01

CA67,KA67,TA67..05S

 1
71808 - STOPPER SUB-ASSY, REAR SEAT BACK, RH
72630-91C01

CA67,KA67,TA67..05S

 1
71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH
72640-91C01

CA67,KA67,TA67..05S

 1
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72610-91C0101

CA67,KA67,TA67..05S

BLACK,BLACK,TRIM2#

 2
72610-91C0106

CA67,KA67,TA67..05S

DARK BROWN,BROWN,TRIM4#

 2
Common parts
90119-08164
90159-60004
91615-40620
93210-16025
93386-16016
93886-16016
94120-40600
