TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )V,WG

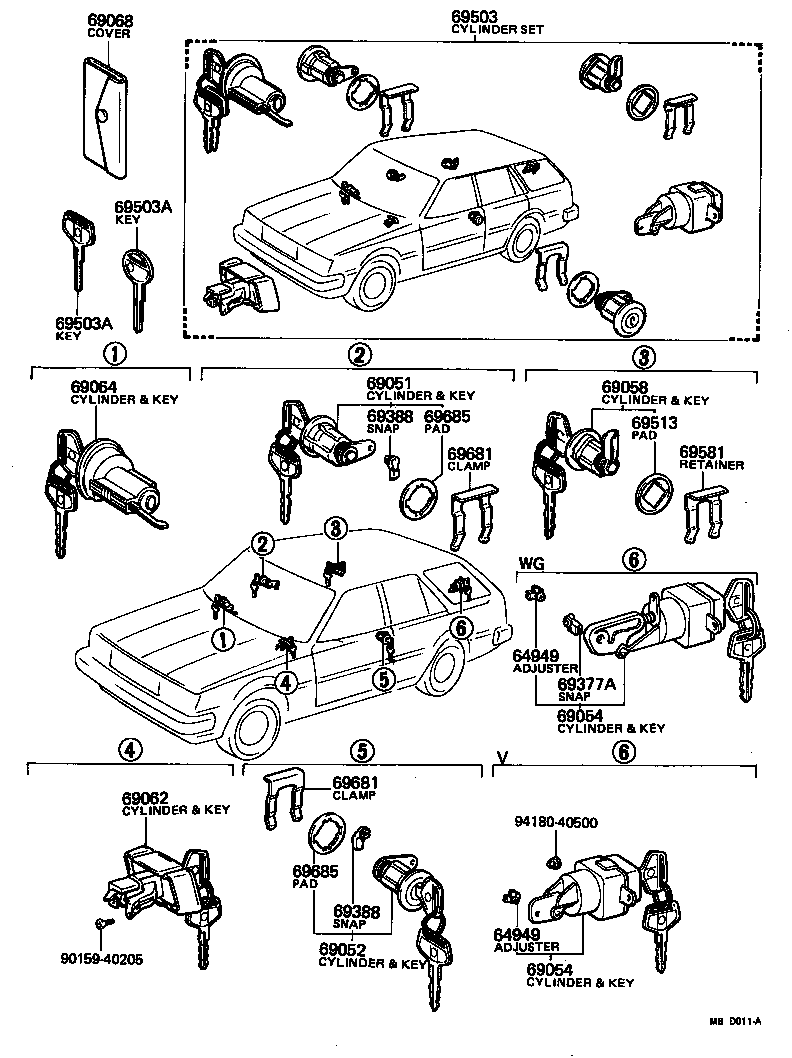

Click highlighted areas on diagram

diagram 64949 64949 69051 69052 69054 69054 69058 69062 69064 69068 69377A 69388 69388 69503 69503A 69503A 69513 69581 69681 69681 69685 69685 9015940205 9418040500
Part # Description Qty Price
64949 - ADJUSTER, BACK DOOR LOCK CONTROL LINK
64949-21020

CA67,KA67,SA60,TA67..V,WG

 1
64949 - ADJUSTER, BACK DOOR LOCK CONTROL LINK
64949-21020

CA67,KA67,SA60,TA67..V,WG

 1
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-19285

CA67,TA67

 1
69051-19285

CA67,SA60,TA67..V,WG

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-19285

CA67,SA60,TA67..V,WG

 1
69052-19285

CA67,TA67

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-91256

CA67,KA67,TA67

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-91256

CA67,KA67,TA67

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-19155

CA67,SA60,TA67..V,WG

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-91C0101

CA67,KA67,SA60,TA67..V,WG

BLACK,BLACK,TRIM2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-91C01

CA67,KA67,SA60,TA67..V,WG

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AA60,CA6#,RA63,SA60,TA6#

LH

 1
69759-24080

AA60,CA6#,RA63,SA60,TA6#

RH

 1
69759-24090

CA67,TA67

LH

 1
69759-24080

CA67,TA67

RH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AA60,CA6#,RA63,SA60,TA6#

LH

 1
69759-24080

AA60,CA6#,RA63,SA60,TA6#

RH

 1
69759-24090

CA67,TA67

LH

 1
69759-24080

CA67,TA67

RH

 1
69503 - CYLINDER SET, LOCK
69005-91C0101

CA67,TA67

BLACK,BLACK,TRIM2#

 1
69503A - KEY, BLANK
90999-00071

CA67,KA67,SA60,TA67..V,WG

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00067

CA67,KA67,SA60,TA67..V,WG

ﾏｽﾀｰｷｰ,MASTER KEY

 2
69503A - KEY, BLANK
90999-00071

CA67,KA67,SA60,TA67..V,WG

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00067

CA67,KA67,SA60,TA67..V,WG

ﾏｽﾀｰｷｰ,MASTER KEY

 2
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

AA60,CA6#,RA63,SA60,TA6#

 1
69513-14010

CA67,TA67

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

AA60,CA6#,RA63,SA60,TA6#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
Common parts
90159-40205
94180-40500
