TA67V-AXHFSW (1981)
Toyota Carina Fr
Production
Sep 1981
-
Aug 1983
Engine
12TJ
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )V,WG

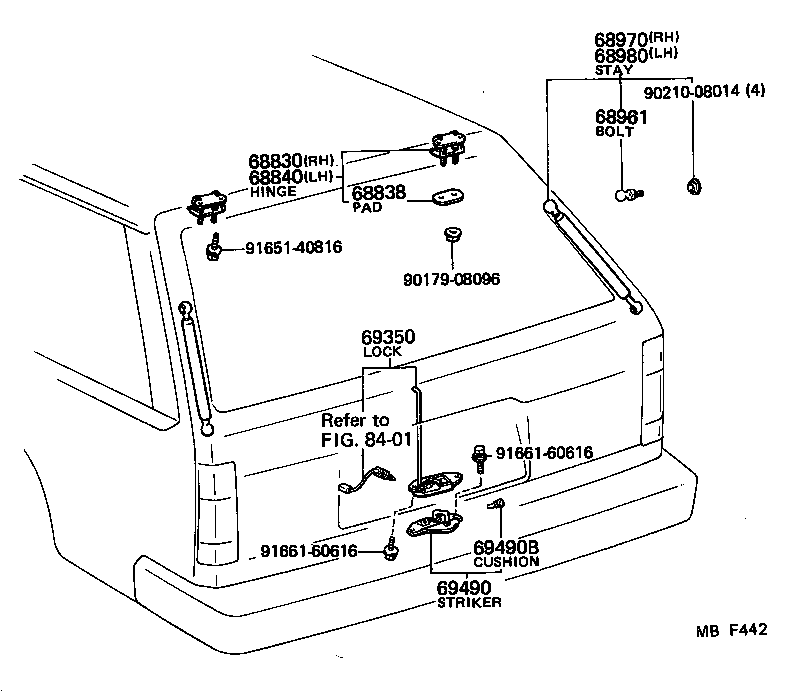

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-15010 |
CA67,KA67,SA60,TA67..V,WG |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14010 |
CA67,KA67,SA60,TA67..V,WG |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19235 |
CA67,TA67 KAYABA |
1 | ||
| 68950-19215 |
CA67,TA67 TOKICO |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-19125 |
CA67,TA67 KAYABA |
1 | ||
| 68960-19105 |
CA67,TA67 TOKICO |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-91C01 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| 69490B - CUSHION(FOR BACK DOOR LOCK STRIKER) | ||||
| 90541-06002 |
CA67,KA67,SA60,TA67..V,WG |
1 | ||
| Common parts | ||||
| 90179-08096 | ||||
| 90210-08014 | ||||
| 91651-40816 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
