TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983

Engine 12TJ

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8109- )CP,V,WG

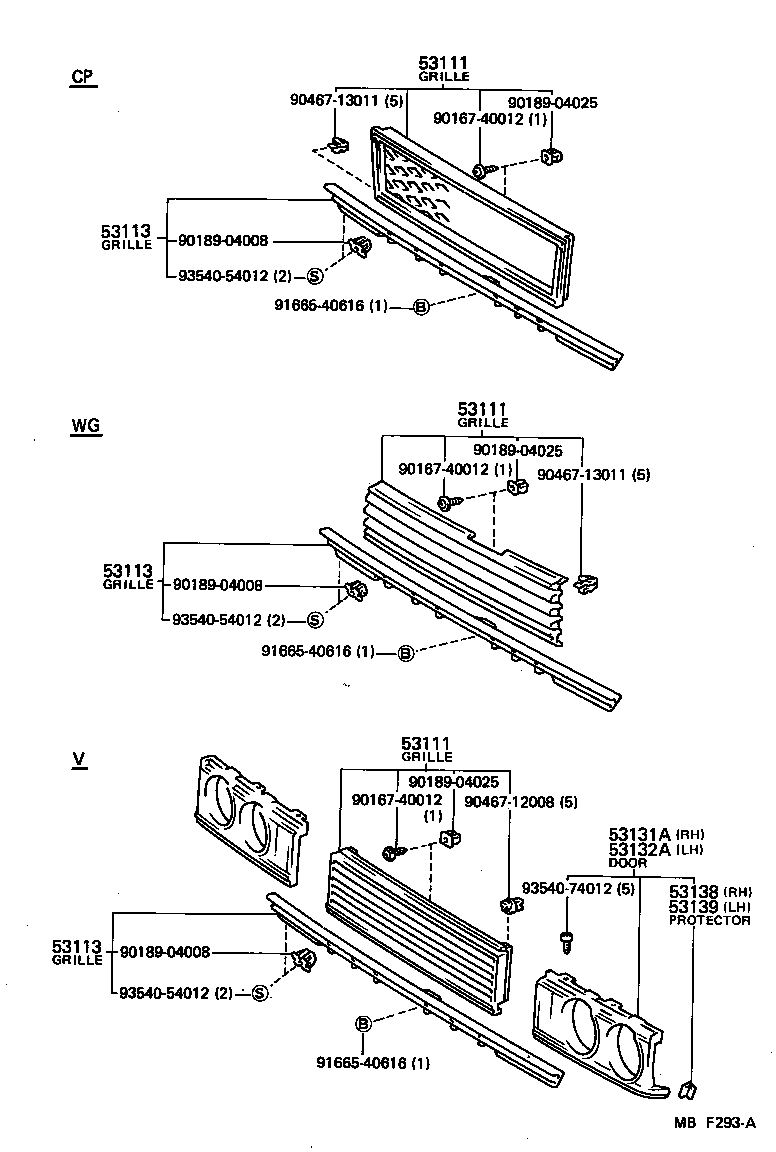

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
53111 - GRILLE, RADIATOR
53111-19505	CA67,KA67,TA67..DLX,SG	09/1981 - 04/1988	1
53111 - GRILLE, RADIATOR
53111-19505	CA67,KA67,TA67..DLX,SG	09/1981 - 04/1988	1
53111 - GRILLE, RADIATOR
53111-19505	CA67,KA67,TA67..DLX,SG	09/1981 - 04/1988	1
53113 - GRILLE, RADIATOR, LH OR LOWER
53112-14040	CA67,KA67,TA67..SG	09/1981 - 04/1988	1
53113 - GRILLE, RADIATOR, LH OR LOWER
53112-14040	CA67,KA67,TA67..SG	09/1981 - 04/1988	1
53113 - GRILLE, RADIATOR, LH OR LOWER
53112-14040	CA67,KA67,TA67..SG	09/1981 - 04/1988	1
53131A - DOOR, HEADLAMP, RH
53130-19075	CA67,KA67,TA67..DLX,SG	09/1981 - 04/1988	1
53132A - DOOR, HEADLAMP, LH
53140-19075	CA67,KA67,TA67..DLX,SG	09/1981 - 04/1988	1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-14090	AA60,CA6#,RA63,SA60,TA6#..SED,V	09/1981 - 05/1983	1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-14090	AA60,CA6#,RA63,SA60,TA6#..SED,V	09/1981 - 05/1983	1
Common parts
90167-40012
90189-04008
90189-04025
90467-12008
90467-13011
91665-40616
93540-54012
93540-74012
