TA67V-AXHFSW (1981)
Toyota Carina Fr

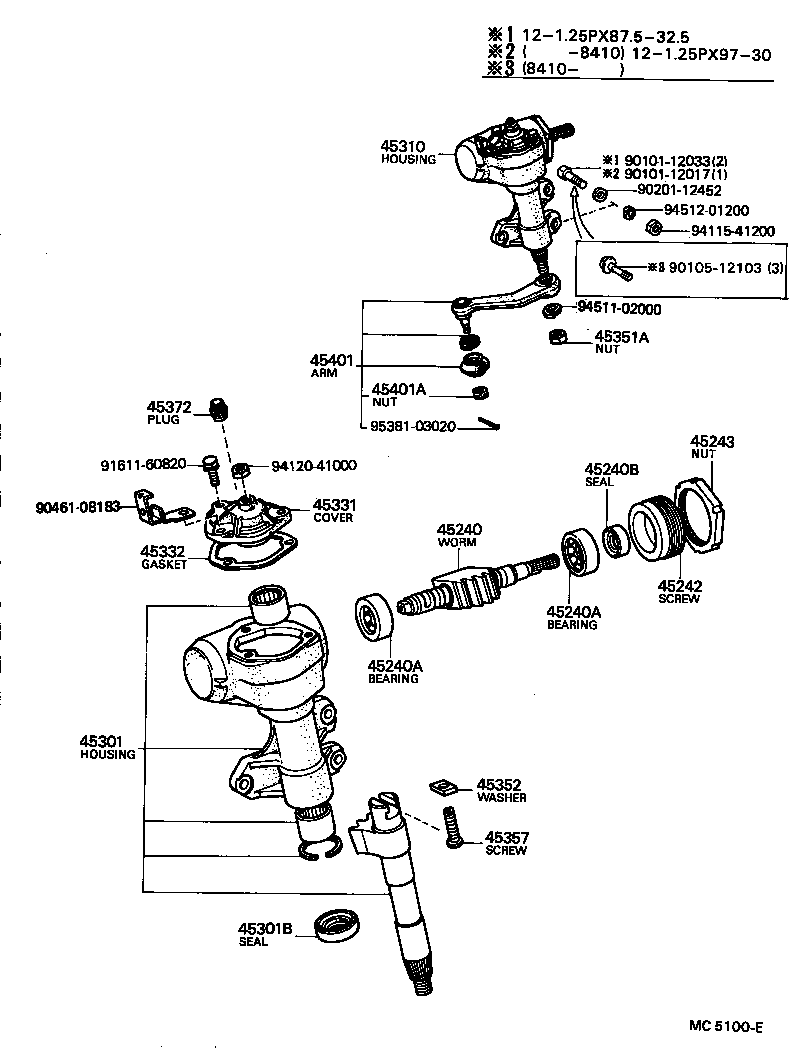

ILLUST NO. 1 OF 2(8109- )CA67,KA67,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22090 |
CA67,KA67,TA67 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CA67,KA67,TA67 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-19001 |
CA67,KA67,TA67 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
CA67,KA67,TA67 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22040 |
CA67,KA67,TA67 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
CA67,KA67,TA67 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22071 |
CA67,KA67,TA67 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
CA67,KA67,TA67 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-14130 |
CA67,KA67,TA67 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
CA67,KA67,TA67 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
CA67,KA67,TA67 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
CA67,KA67,TA67 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
CA67,KA67,TA67 厚さ=2.00,T=2.00 |
1 | ||
| 45352-14040 |
CA67,KA67,TA67 厚さ=2.12,T=2.12 |
1 | ||
| 45352-14050 |
CA67,KA67,TA67 厚さ=2.16,T=2.16 |
1 | ||
| 45352-14030 |
CA67,KA67,TA67 厚さ=2.08,T=2.08 |
1 | ||
| 45352-14060 |
CA67,KA67,TA67 厚さ=2.20,T=2.20 |
1 | ||
| 45352-14020 |
CA67,KA67,TA67 厚さ=2.04,T=2.04 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
CA67,KA67,TA67 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
CA67,KA67,TA67 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19225 |
CA67,KA67,TA67 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
CA67,KA67,TA67 |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90105-12103 | ||||
| 90201-12452 | ||||
| 90461-08183 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
(8109- )AA60..SED ; (8109- )AA60..CP..SG,ST ; (8109- )AA63,CA60,RA63,SA60,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19175 |
CA67,KA67,TA67 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-19025 |
CA67,KA67,TA67 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14060 |
CA67,KA67,TA67 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14060 |
CA67,KA67,TA67 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||

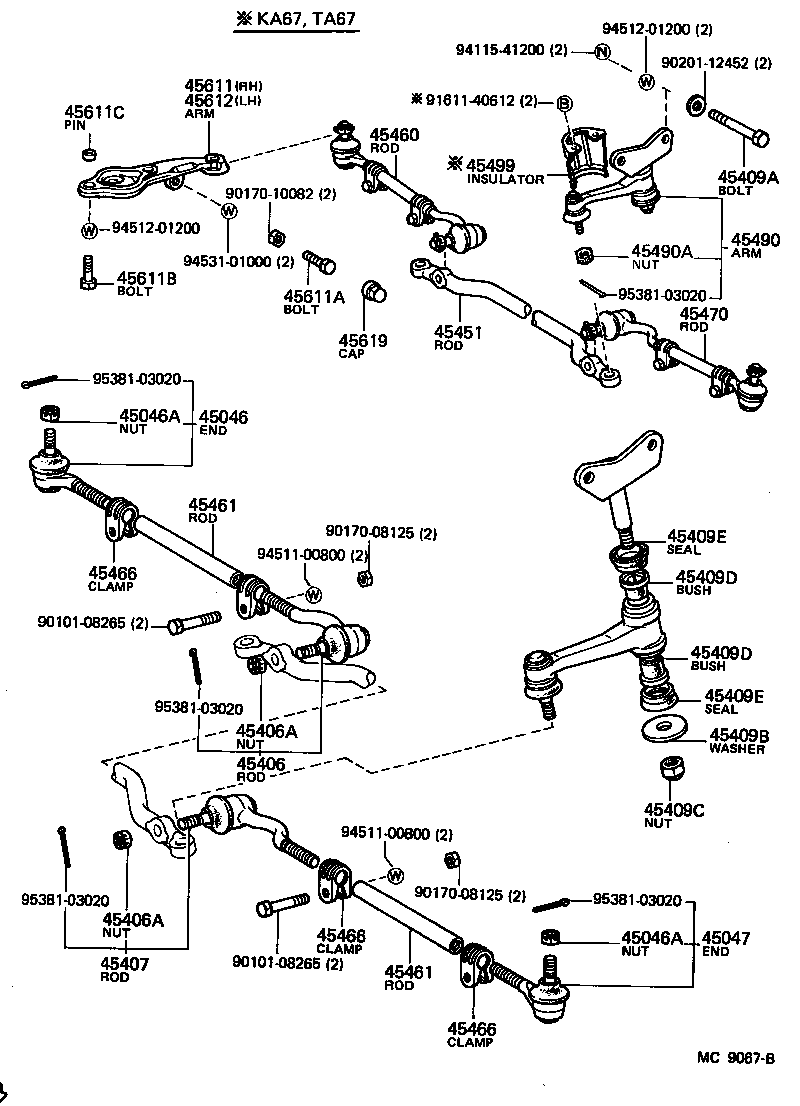

ILLUST NO. 2 OF 2(8109- )CA67,KA67,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29075 |
CA67,KA67,TA67 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29075 |
CA67,KA67,TA67 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-19016 |
CA67,KA67,TA67 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
CA67,KA67,TA67 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
CA67,KA67,TA67 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-19075 |
CA67,KA67,TA67 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12017 |
CA67,KA67,TA67 |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
CA67,KA67,TA67 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
CA67,KA67,TA67 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
CA67,KA67,TA67 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
CA67,KA67,TA67 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
CA67,KA67,TA67 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
CA67,KA67,TA67 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-14070 |
CA67,KA67,TA67 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19175 |
CA67,KA67,TA67 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
CA67,KA67,TA67 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
CA67,KA67,TA67 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-19025 |
CA67,KA67,TA67 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-19255 |
CA67,KA67,TA67 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
CA67,KA67,TA67 |
1 | ||
| 45499 - INSULATOR, IDLER ARM, HEAT | ||||
| 45499-14020 |
KA67,TA67 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14060 |
CA67,KA67,TA67 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14060 |
CA67,KA67,TA67 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90201-12452 | ||||
| 91611-40612 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
