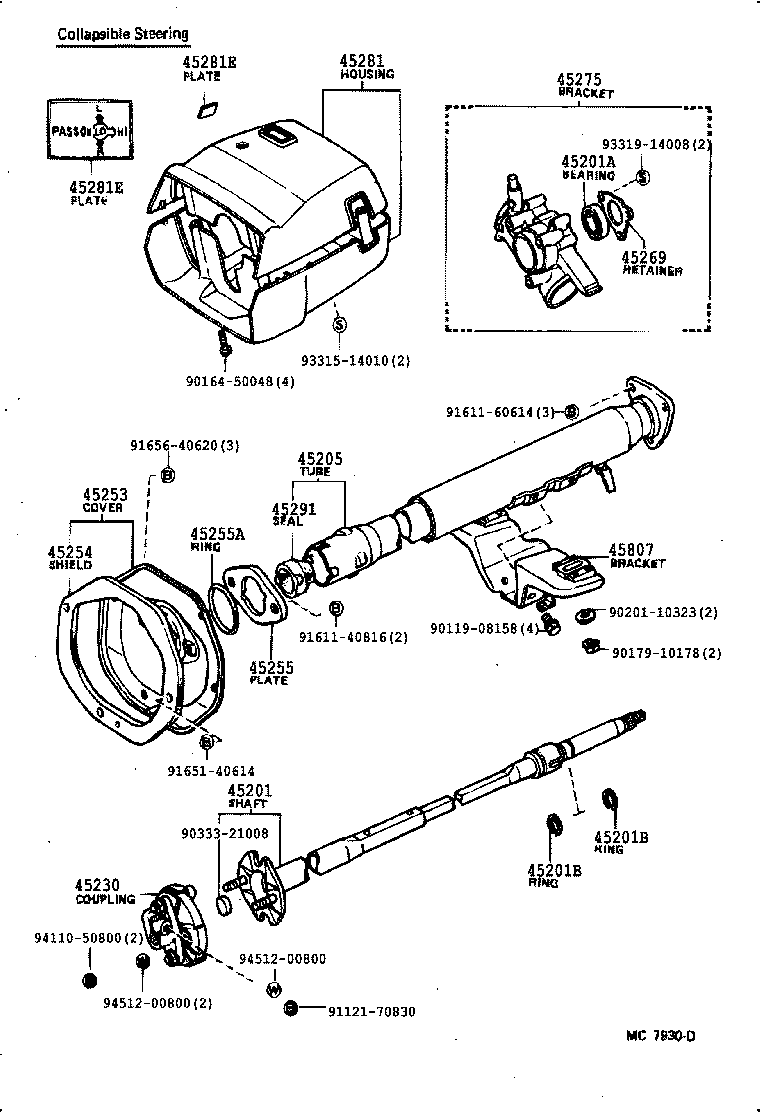

Toyota Carina fr TA67 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-14080	CA67,KA67,TA67 COLLAPSIBLE STRG	09/1981 - 04/1988	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038	AA60,CA67,KA67,TA67..DLX,SG,STD	09/1981 - 04/1988	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=1.20,T=1.2	09/1981 - 04/1988	2
90520-17196	AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ=1.35−1.45,T=1.4	09/1981 - 04/1988	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=1.20,T=1.2	09/1981 - 04/1988	2
90520-17196	AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ=1.35−1.45,T=1.4	09/1981 - 04/1988	2
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-14130	CA67,KA67,TA67 COLLAPSIBLE STEERING	09/1981 - 04/1988	1
45230 - COUPLING ASSY, FLEXIBLE
45230-14020	CA67,KA67,TA67	09/1981 - 04/1988	1
45253 - COVER, STEERING COLUMN HOLE
45025-14130	CA67,KA67,TA67	09/1981 - 04/1988	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-24011	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-12020	CA67,KA67,TA67	09/1981 - 04/1988	1
45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
90301-45202	CA67,KA67,TA67	09/1981 - 04/1988	1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010	AA60,CA67,KA67,TA67..DLX,SG,STD	09/1981 - 06/1984	1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-24030	AA60,CA67,TA67..DLX,SG,STD	09/1981 - 09/1982	1
45281 - HOUSING, STEERING COLUMN
45286-2490001	AA60,CA67,KA67,TA67..DLX,SG,STD BLACK,BLACK,TRIM2#	09/1981 - 04/1988	1
45281E - PLATE, SAFETY CAUTION
45283-22010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
45281E - PLATE, SAFETY CAUTION
45283-22010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
45291 - SEAL, MAIN SHAFT UPPER DUST
45292-14030	CA67,KA67,TA67 COLLAPSIBLE STEERING	09/1981 - 04/1988	1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-24011	AA60,CA67,KA67,TA67..DLX,SG,STD	09/1981 - 04/1988	1
Common parts
90119-08158
90164-50048
90179-10178
90201-10323
90333-21008
91121-70830
91611-40816
91611-60614
91651-40614
91656-40620
93315-14010
93319-14008
94110-50800
94512-00800

TA67V-AXHFSW (1981)

(8109- )CA67,KA67,TA67
