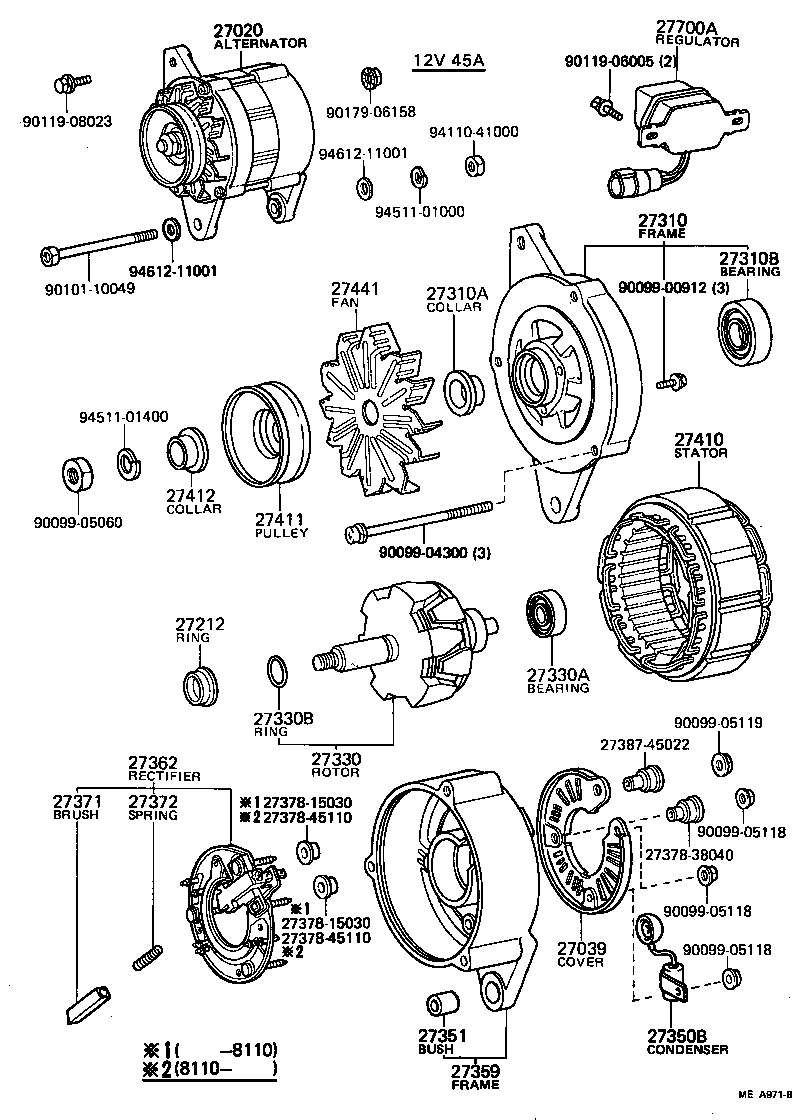

Toyota Carina fr TA67 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-38120	12TJ..TA67 12V 45A,12V 45A	09/1981 - 08/1983	1
27039 - COVER, ALTERNATOR REAR END
27039-18011	12TJ..TA67 12V 45A	09/1981 - 08/1983	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	12TJ,5KJ..KA67,TA67 12V 45A	09/1981 - 04/1988	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010	12TJ..TA67 12V 45A	09/1981 - 08/1983	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040	12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6# 12V 45A,55A,60A,65A	09/1981 - 09/1984	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125	12TJ,3AU,5KJ..AA60,KA67,TA67 12V 45A,55A	09/1981 - 04/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020	12TJ,5KJ..KA67,TA67 12V 45A	09/1981 - 04/1988	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116	12TJ,3AU,5KJ..AA60,KA67,TA67 12V 45A,55A	09/1981 - 04/1988	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	12TJ,5KJ..KA67,TA67 12V 45A	09/1981 - 04/1988	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051	12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6# 12V 45A,55A,60A,65A	09/1981 - 04/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050	12TJ..TA67 12V 45A	09/1981 - 08/1983	1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011	12TJ..TA67 12V 45A	10/1981 - 08/1983	1
27362-15030	12TJ..TA67 12V 45A	09/1981 - 10/1981	1
27371 - BRUSH, ALTERNATOR
27371-31011	12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6# 12V 45A,55A,60A,65A	09/1981 - 04/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011	12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6# 12V 45A,55A,60A,65A	09/1981 - 04/1988	2
27410 - STATOR ASSY, ALTERNATOR
27410-38120	12TJ,5KJ..KA67,TA67 12V 45A	09/1981 - 04/1988	1
27411 - PULLEY, ALTERNATOR
27411-31042	12TJ,3TEU..TA63,67 12V 45A,55A,60A	09/1981 - 08/1983	1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030	12TJ,3AU..AA60,TA67 12V 45A,55A	09/1981 - 12/1987	1
27441 - FAN, ALTERNATOR
27441-34030	12TJ,3AU,5KJ..AA60,KA67,TA67 12V 45A,55A	09/1981 - 04/1988	1
27700A - REGULATOR ASSY, GENERATOR
27700-63010	12TJ,3AU,1C,5KJ,1SU..AA60,CA6#,KA67,SA60,TA67 12V 45A,55A	09/1981 - 04/1988	1
Common parts
27378-15030
27378-38040
27378-45110
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-06005
90119-08023
90179-06158
94110-41000
94511-01000
94511-01400
94612-11001

TA67V-AXHFSW (1981)

(8109-8308)12TJ
