TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8308)12TJ

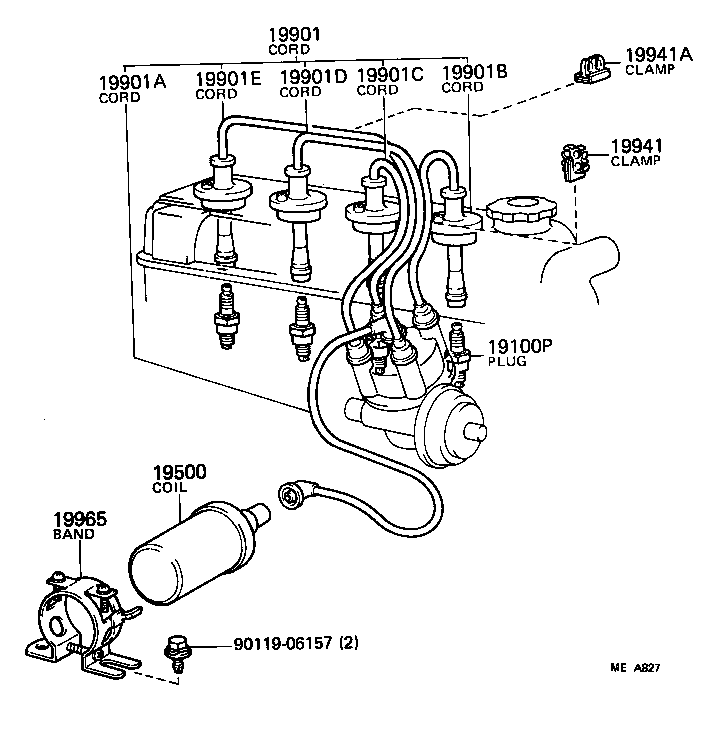

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 19965 9011906157
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01087

12TJ..TA67

BP5EK-A(NGK)

 4
90919-01090

12TJ..TA67

W16ET-S(DENSO)

 4
19500 - COIL ASSY, IGNITION
90919-02117

12TJ..TA67

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21120

12TJ..TA67

 1
19901A - CORD, COIL RESISTIVE
90919-13105

12TJ..TA67

 1
90919-13105

12TJ,2TGEU..TA61,67

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12149

12TJ..TA67

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12150

12TJ..TA67

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12151

12TJ..TA67

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12152

12TJ..TA67

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00053

12TJ..TA67

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00001

12TJ..TA67

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03076

12TJ..TA67

 1
Common parts
90119-06157
