TA67V-AXHFSW (1981)

Toyota Carina Fr

Production Sep 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8308)12TJ,3TEU

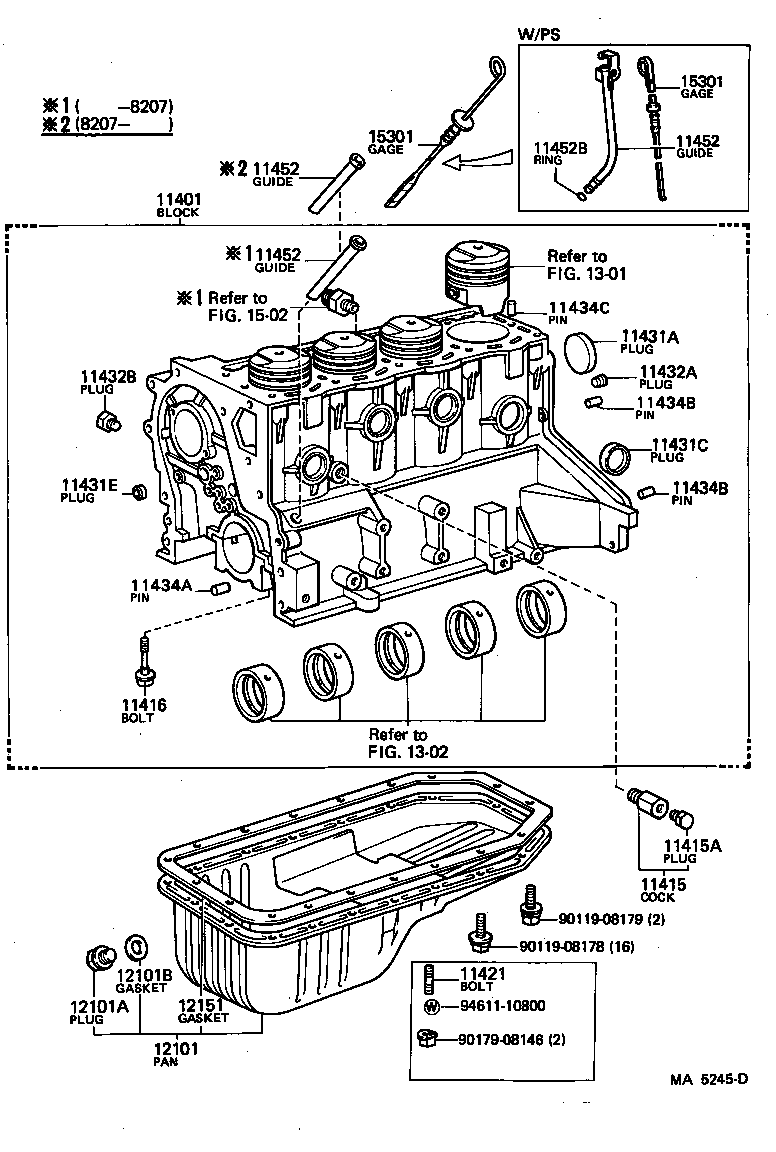

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431A 11431C 11431E 11432A 11432B 11434A 11434B 11434B 11434C 11452 11452 11452 11452B 12101 12101A 12101B 12151 1301 1302 1502 15301 15301 9011908178 9011908179 9017908146 9461110800
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29276

12TJ..TA67

 1
11401-29275

12TJ..TA67

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

12TJ,2TGEU,3T#..TA6#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

12TJ,2TGEU,3T#..TA6#

L=28

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

12TJ,2TGEU,3T#..TA6#

*12-1.25PX62-21

 10
11421 - BOLT, STUD(FOR OIL PAN)
92122-40818

12TJ,3TEU..TA63,67

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

12TJ,2TGEU,3T#..TA6#

OD=50

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

12TJ,2TGEU,3T#..TA6#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-01800

12TJ,2TGEU,3T#..TA6#

OD=18

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

12TJ,2TGEU,3TEU..TA6#

 1
90344-53002

12TJ,3TEU..TA63,67

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12TJ,3TEU..TA63,67

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

12TJ,2TGEU,3T#..TA6#

長さ=18,外径=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

12TJ,2TGEU,3T#..TA6#

長さ=22,外径=10,L=22,OD=10

 2
90250-08120

12TJ,2TGEU,3T#..TA6#

長さ=18,外径=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

12TJ,2TGEU,3T#..TA6#

長さ=22,外径=10,L=22,OD=10

 2
90250-08120

12TJ,2TGEU,3T#..TA6#

長さ=18,外径=8,L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

12TJ,2TGEU,3T#..TA6#

長さ=18,外径=8,L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-18010

12TJ,3TEU..TA63,67

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-18010

12TJ,3TEU..TA63,67

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-18010

12TJ,3TEU..TA63,67

 1
12101 - PAN SUB-ASSY, OIL
12101-29105

12TJ,2TGEU,3T#..TA6#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

12TJ,2TGEU,3T#..TA6#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

12TJ,2TGEU,3T#..TA6#

 1
12151 - GASKET, OIL PAN
12151-25010

12TJ,2TGEU,3T#..TA6#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-18010

12TJ,3TEU..TA63,67

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-18010

12TJ,3TEU..TA63,67

 1
Common parts
90119-08178
90119-08179
90179-08146
94611-10800
Linked diagrams
1301
1302
1502
