TA67V-AXHDSW (1981)
Toyota Carina Fr
Production
Sep 1981
-
Aug 1983
Engine
12TJ
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )

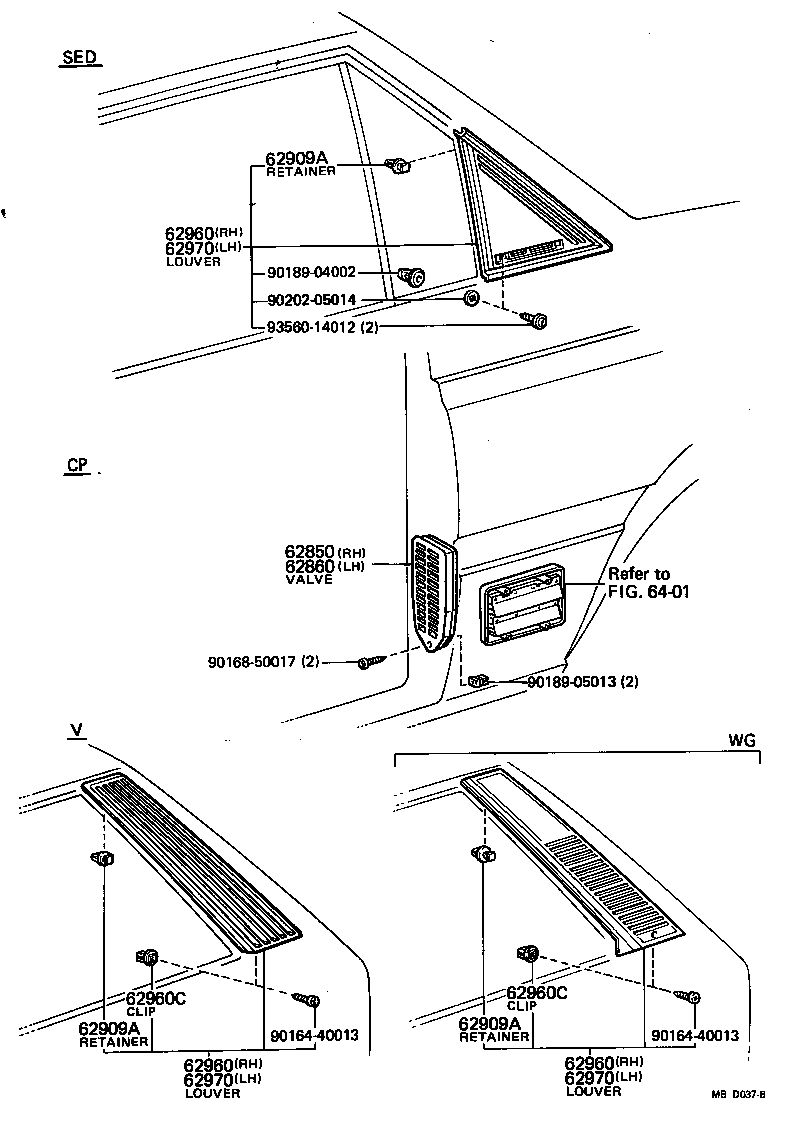

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER | ||||
| 62955-91C01 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
4 | ||
| 62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER | ||||
| 62955-91C01 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
4 | ||
| 62909A - RETAINER SUB-ASSY, QUARTER VENTILATION LOUVER | ||||
| 62955-91C01 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
4 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62905-19275 |
CA67,KA67,TA67 |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62905-19275 |
CA67,KA67,TA67 |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62905-19275 |
CA67,KA67,TA67 |
1 | ||
| 62960C - CLIP, ROOF SIDE VENT LOUVER | ||||
| 62908-91C01 |
CA67,KA67,SA60,TA67..V,WG |
2 | ||
| 62960C - CLIP, ROOF SIDE VENT LOUVER | ||||
| 62908-91C01 |
CA67,KA67,SA60,TA67..V,WG |
2 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62906-19255 |
CA67,KA67,TA67 |
1 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62906-19255 |
CA67,KA67,TA67 |
1 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62906-19255 |
CA67,KA67,TA67 |
1 | ||
| Common parts | ||||
| 90164-40013 | ||||
| 90168-50017 | ||||
| 90189-04002 | ||||
| 90189-05013 | ||||
| 90202-05014 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 6401 | ||||
