TA67V-AUKDSW (1982)

Toyota Carina Fr

Production Jun 1982 - Aug 1983
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8804)V,WG

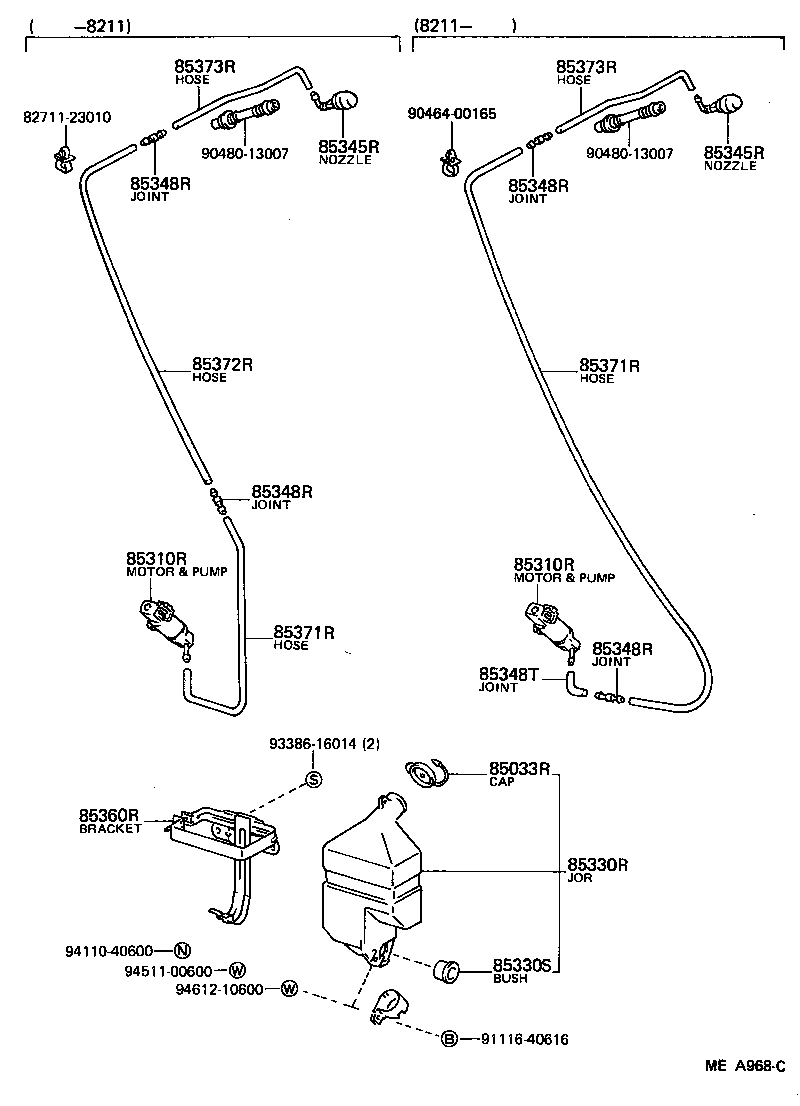

Click highlighted areas on diagram

diagram 8271123010 85033R 85310R 85310R 85330R 85330S 85345R 85345R 85348R 85348R 85348R 85348R 85348T 85360R 85371R 85371R 85372R 85373R 85373R 9046400165 9048013007 9048013007 9111640616 9338616014 9411040600 9451100600 9461210600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

CA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

CA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85330R - JAR ASSY, REAR WASHER
85330-23011

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85345R - NOZZLE, REAR WASHER
85035-91255

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85345R - NOZZLE, REAR WASHER
85035-91255

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 2
85360R - BRACKET ASSY, REAR WASHER
85360-15010

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

CA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

*H,L=450

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

CA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

*H,L=450

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

CA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

*H,L=900

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

*H,L=300

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST)

*H,L=300

 1
Common parts
82711-23010
90464-00165
90480-13007
91116-40616
93386-16014
94110-40600
94511-00600
94612-10600
