TA67V-AUKDSW (1982)

Toyota Carina Fr

Production Jun 1982 - Aug 1983
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)12TJ

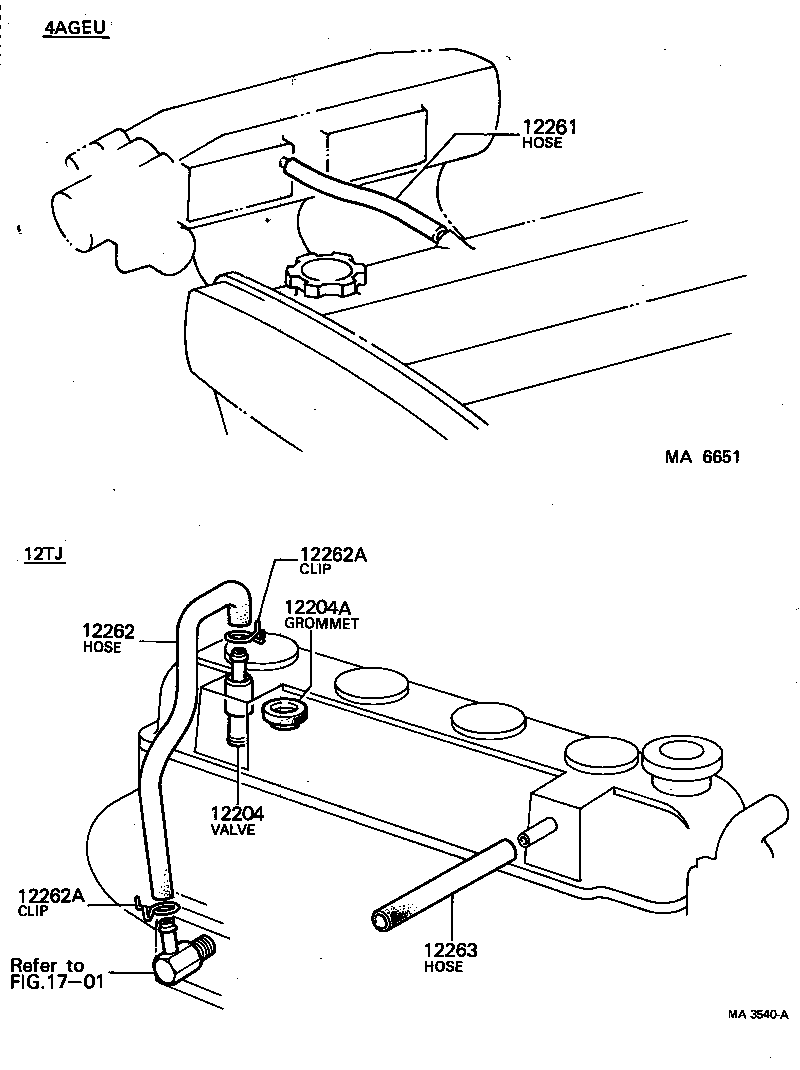

Click highlighted areas on diagram

MA6651,MA3540A

diagram 12204 12204A 12261 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28010

12TJ..TA67

 1
12204-28010

12TJ..TA67

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

12TJ,3TEU..TA63,67

 1
90480-18180

12TJ,3TEU..TA63,67

 1
12262 - HOSE, VENTILATION, NO.2
12261-25012

12TJ..TA67

 1
12261-25012

12TJ..TA67

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

12TJ..TA67

 2
90467-16010

12TJ..TA67

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

12TJ..TA67

 2
90467-16010

12TJ..TA67

 2
12263 - HOSE, VENTILATION, NO.3
90445-20012

12TJ..TA67

 1
90445-20012

12TJ..TA67

 1
Linked diagrams
1701
