TA63-AEPSE (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)AA63,RA63,TA61,63

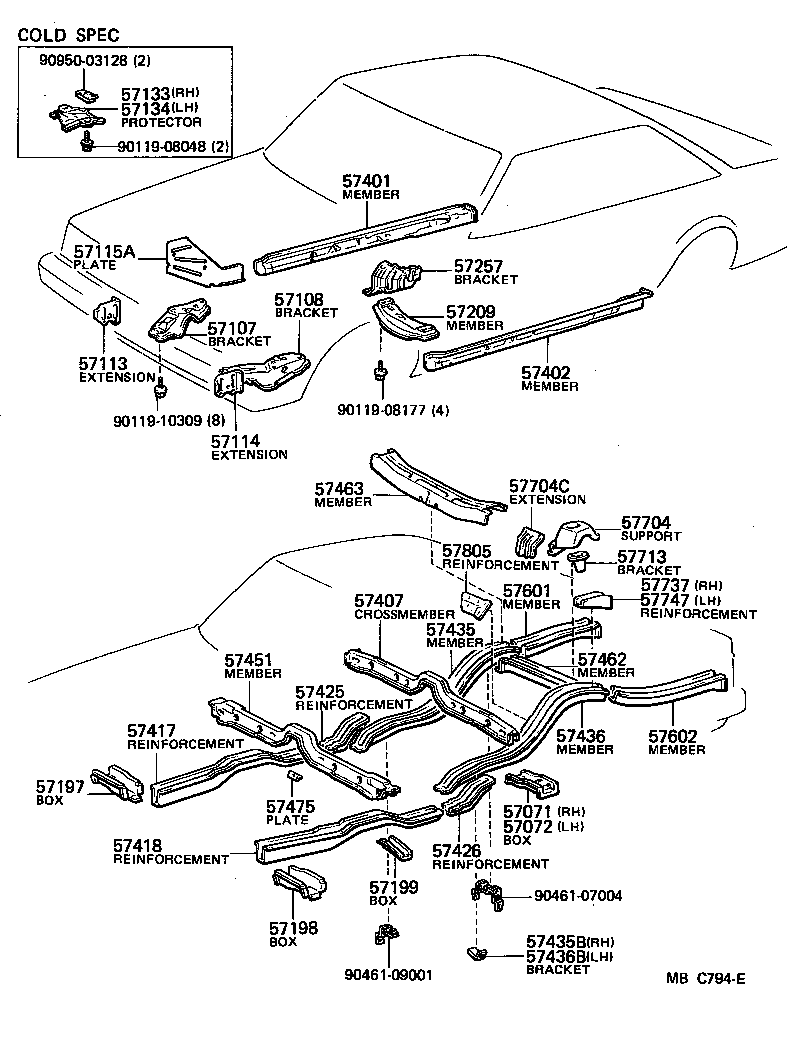

Click highlighted areas on diagram

diagram 57071 57072 57107 57108 57113 57114 57115A 57133 57134 57197 57198 57199 57209 57257 57401 57402 57407 57417 57418 57425 57426 57435 57435B 57436 57436B 57451 57462 57463 57475 57601 57602 57704 57704C 57713 57737 57747 57805 9011908048 9011908177 9011910309 9046107004 9046109001 9095003128
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-14030

AA63,RA63,TA61,63

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-14030

AA63,RA63,TA61,63

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14070

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-14090

AA6#,CA60,RA63,SA60,TA61,63

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-14030

AA6#,CA6#,KA67,RA63,SA60,TA6#

COLD SPEC

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

COLD SPEC

 1
57197 - BOX, TORQUE, FRONT RH
57197-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57198 - BOX, TORQUE, FRONT LH
57198-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14190

TA63,67..ATM..(DLX,SE,SG,ST)

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57257-14050

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

RH

 1
57258-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

LH

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-14190

AA63,RA63,TA61,63

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-14190

AA63,RA63,TA61,63

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-14010

AA6#,CA60,RA63,SA60,TA61,63

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-24010

AA6#,CA60,RA63,SA60,TA61,63

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-24010

AA6#,CA60,RA63,SA60,TA61,63

 1
57435 - MEMBER, CENTER FLOOR SIDE, RH
57435-24010

AA63,RA63,TA61,63

 1
57435B - BRACKET, FLOOR BRAKE HOSE, REAR RH
58289-14020

AA63,RA63,TA61,63

 1
57436 - MEMBER, CENTER FLOOR SIDE, LH
57436-14020

AA63,RA63,TA61,63

 1
57436B - BRACKET, FLOOR BRAKE HOSE, REAR, LH
58299-14010

AA63,RA63,TA61,63

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57405-14100

AA63,RA63,TA61,63

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 4
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14110

AA63,RA63,TA61,63

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14100

AA63,RA63,TA61,63

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57723-14030

AA63,RA63,TA61,63

RH

 1
57724-14020

AA63,RA63,TA61,63

LH

 1
57704C - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-14040

AA63,TA63..SED

RH,W/O *BS

 1
64218-14030

AA63,TA63..SED

LH,W/O *BS

 1
57713 - BRACKET, REAR SPRING BUMPER SUPPORT
57713-14020

AA63,RA63,TA61,63

RH

 1
57714-14010

AA63,RA63,TA61,63

LH

 1
57737 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH
57737-24010

AA63,RA63,TA61,63

 1
57747 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH
57747-24010

AA63,RA63,TA61,63

 1
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-14030

AA63,RA63,TA61,63

RH

 1
57806-14030

AA63,RA63,TA61,63

LH

 1
Common parts
90119-08048
90119-08177
90119-10309
90461-07004
90461-09001
90950-03128
