TA63-AEPSE (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8109- )

Click highlighted areas on diagram

diagram 51201 51204B 51296 51441 51448 51961 51962 51962 9011908048 9011908048 9011912007 9017912021 9161961225 9166140830 9166560825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-14220

TA61,63..GT,SE,ST

 1
51204B - DAMPER SUB-ASSY, FRONT SUSPENSION MEMBER
51204-14010

TA63..SE,ST

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

AA6#,CA60,RA63,SA60,TA61,63

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14060

AA60,TA6#

 1
51448 - PROTECTOR, OIL PAN
51447-14040

AA60,KA67,SA60,TA6#

 1
51961 - HOOK, NO.1
51963-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
Common parts
90119-08048
90119-12007
90179-12021
91619-61225
91661-40830
91665-60825

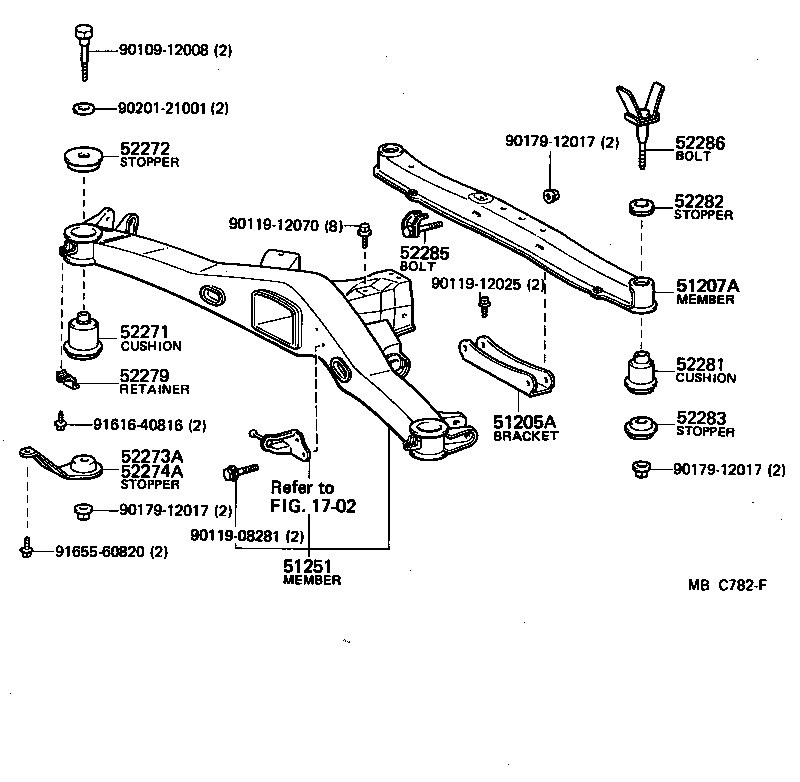

ILLUST NO. 2 OF 2(8109-8507)AA63,RA63,TA61,63

Click highlighted areas on diagram

diagram 1702 51205A 51207A 51251 52271 52272 52273A 52274A 52279 52281 52282 52283 52285 52286 9010912008 9011908281 9011912025 9011912070 9017912017 9017912017 9017912017 9020121001 9161640816 9165560820
Part # Description Qty Price
51205A - BRACKET SUB-ASSY, DIFFERENTIAL SUPPORT
51205-14010

AA63,RA63,TA61,63

 1
51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT
51207-14010

AA63,RA63,TA61,63

 1
51251 - MEMBER SUB-ASSY, REAR SUSPENSION
51206-14020

AA63,TA61,63..GT,SE,ST

 1
52271 - CUSHION, REAR SUSPENSION MEMBER
52271-22030

RA63,TA61,63

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-14010

AA63,RA63,TA61,63

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-14010

AA63,RA63,TA61,63

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-14010

AA63,RA63,TA61,63

 1
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-14010

AA63,RA63,TA61,63

 2
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-14010

AA63,RA63,TA61,63

 2
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-14010

AA63,RA63,TA61,63

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-14011

AA63,RA63,TA61,63

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-14010

AA63,RA63,TA61,63

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-14011

AA63,RA63,TA61,63

 2
Common parts
90109-12008
90119-08281
90119-12025
90119-12070
90179-12017
90201-21001
91616-40816
91655-60820
Linked diagrams
1702
