TA63-AEPSE (1981)
Toyota Carina Fr

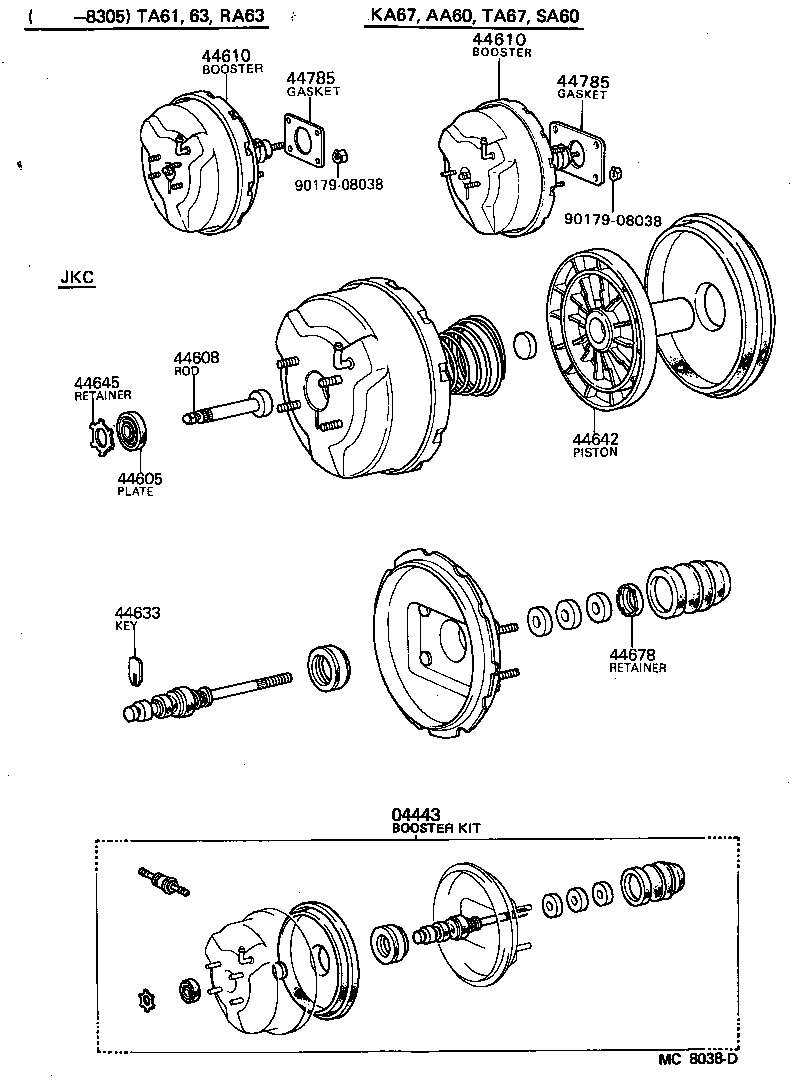

ILLUST NO. 1 OF 2(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-24010 |
RA63,TA61,63..GT,SE,ST JKC |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
RA63,TA61,63 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-24020 |
RA63,TA61,63..GT,SE,ST JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-24020 |
RA63,TA61,63..GT,SE,ST JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
AA60,RA63,SA60,TA6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30310 |
RA63,TA61,63 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
AA60,RA63,SA60,TA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

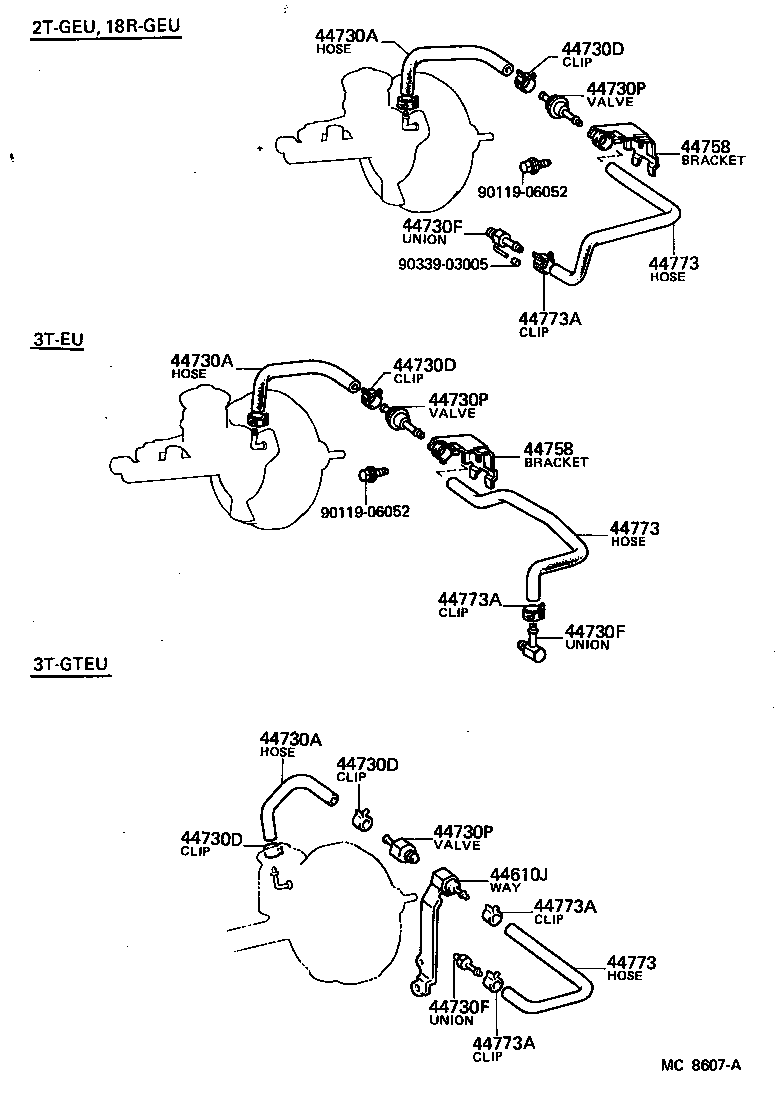

ILLUST NO. 2 OF 2(8109-8507)RA63,TA61,63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14120 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14120 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14120 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90407-09055 |
TA63..SE,ST |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90407-09055 |
TA63..SE,ST |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90407-09055 |
TA63..SE,ST |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14100 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14100 |
AA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-14360 |
TA63..SE,ST |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-14360 |
TA63..SE,ST |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-14360 |
TA63..SE,ST |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90339-03005 | ||||
