TA63-AEPQZ (1982)

Toyota Carina Fr

Production Oct 1982 - Jul 1985
Engine 3TGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8507)3TGTEU

Click highlighted areas on diagram

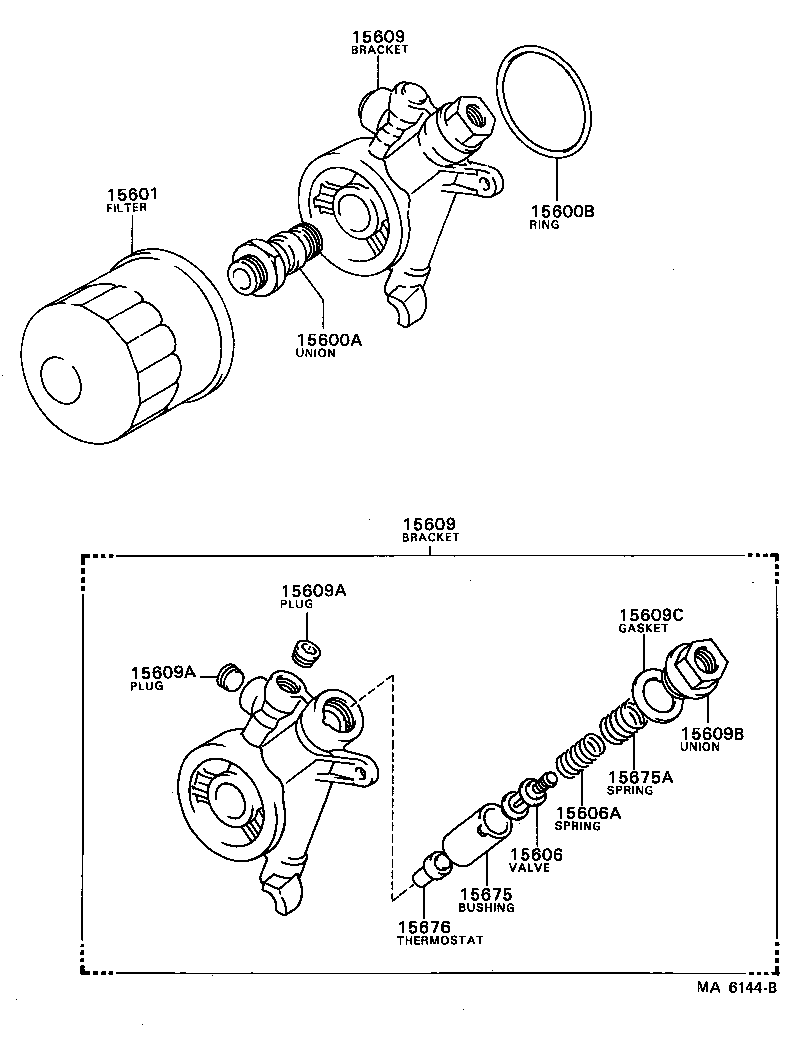

diagram 15600A 15600B 15601 15606 15606A 15609 15609 15609A 15609A 15609B 15609C 15675 15675A 15676
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20010

3TGTEU..TA63

 1
15600B - RING, O, NO.1(FOR OIL FILTER)
96732-31065

3TGTEU..TA63

 1
15601 - FILTER SUB-ASSY, OIL
15600-25010

12TJ,2TGEU,3T#..TA6#

 1
15606 - VALVE SUB-ASSY, OIL SWITCHING
15606-88280

3TGTEU..TA63

 1
15606-88280

3TGTEU..TA63..4FC

 1
15606A - SPRING, COMPRESSION(FOR OIL SWITCHING VALVE)
90501-14073

3TGTEU..TA63

 1
90501-14073

3TGTEU..TA63..4FC

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15670-88280

3TGTEU..TA63..4FC

 1
15670-88280

3TGTEU..TA63

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15670-88280

3TGTEU..TA63..4FC

 1
15670-88280

3TGTEU..TA63

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90344-53004

3TGTEU..TA63

 2
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90344-53004

3TGTEU..TA63

 2
15609B - UNION(FOR OIL FILTER BRACKET)
90404-16018

3TGTEU..TA63

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-24003

3TGTEU..TA63

 1
15675 - BUSHING, OIL VALVE
15675-88280

3TGTEU..TA63..4FC

 1
15675-88280

3TGTEU..TA63

 1
15675A - SPRING, COMPRESSION(FOR OIL VALVE BUSHING)
90501-18053

3TGTEU..TA63

 1
90501-18053

3TGTEU..TA63..4FC

 1
15676 - THERMOSTAT, OIL
15676-88280

3TGTEU..TA63..4FC

 1
15676-88280

3TGTEU..TA63

 1
