TA63-AEMQZ (1982)

Toyota Carina Fr

Production Oct 1982 - Jul 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)RA63,TA63..5F..GT,GTT ; (8508- )CA67

Click highlighted areas on diagram

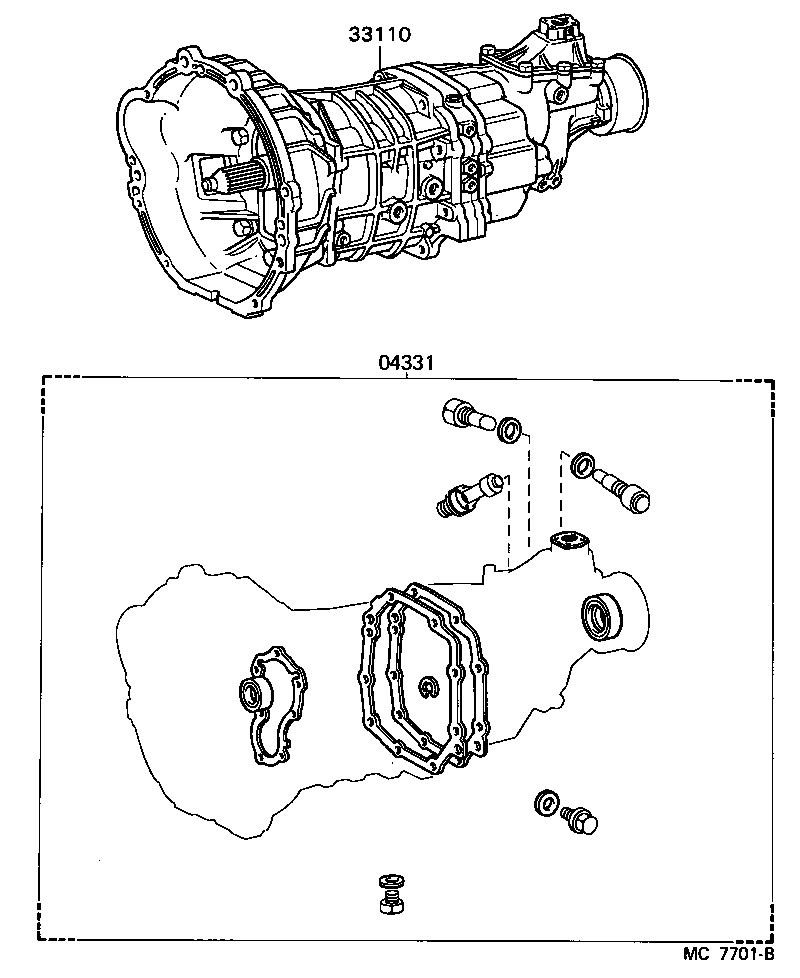

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-20050

RA63,TA63..5F..(GT,GTT)

 1
04331-14030

AA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-14550

TA6#..5F..(GT,SE,SG,ST)

 1
33030-14710

TA63..5F..GTT

 1
