TA63-AEMQZ (1982)
Toyota Carina Fr
Production
Oct 1982
-
Jul 1985
Engine
3TGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8507)2TGEU,3TGTEU

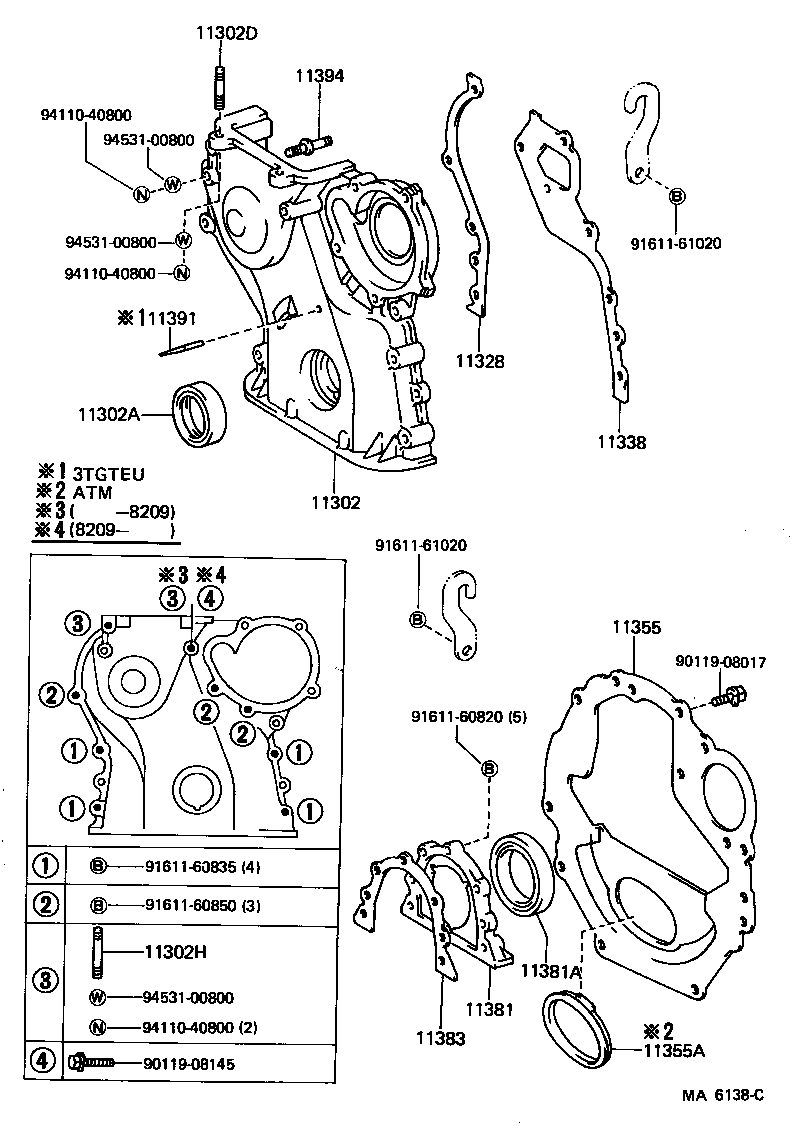

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88280 |
3TGTEU..TA63 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38013 |
3TGTEU..TA63 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-08015 |
2TGEU,3TGTEU..TA61,63 L=37,S=13.5&13.5 |
2 | ||
| 11302H - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90072-11618 |
2TGEU,3TGTEU..TA61,63 L=88,S=10&10 |
2 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88220 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11338 - GASKET, TIMING CHAIN COVER, NO.2 | ||||
| 11338-88220 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-25012 |
12TJ,2TGEU,3T#..TA6#..MTM |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-25010 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-75113 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-25010 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-40010 |
3TGTEU..TA63 |
1 | ||
| 11394 - SHAFT, CHAIN TENSHIONER | ||||
| 11394-34010 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| Common parts | ||||
| 90119-08017 | ||||
| 90119-08145 | ||||
| 91611-60820 | ||||
| 91611-60835 | ||||
| 91611-60850 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
