TA63-ACPSE (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

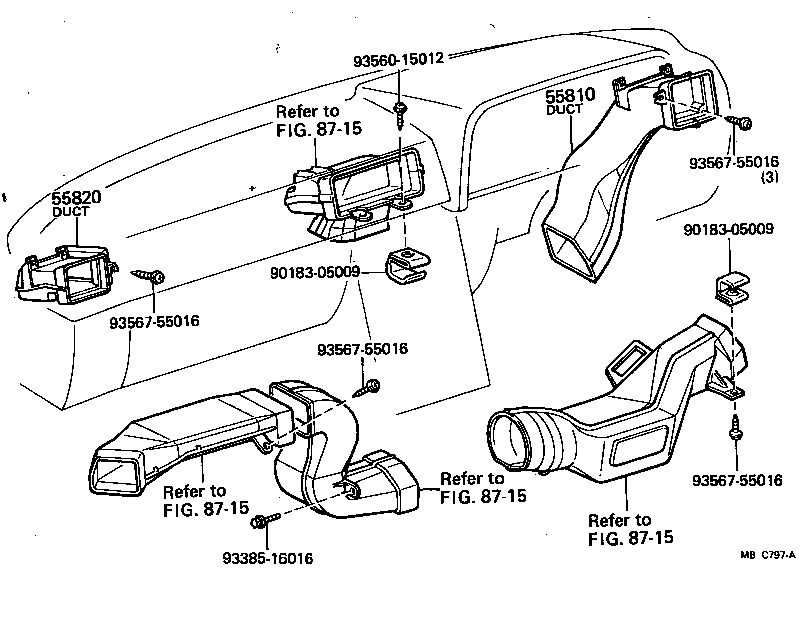

Click highlighted areas on diagram

diagram 55810 55820 8715 8715 8715 8715 9018305009 9018305009 9338516016 9356015012 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55089-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
Common parts
90183-05009
93385-16016
93560-15012
93567-55016
Linked diagrams
8715
