TA63-ACPEE (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3TEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

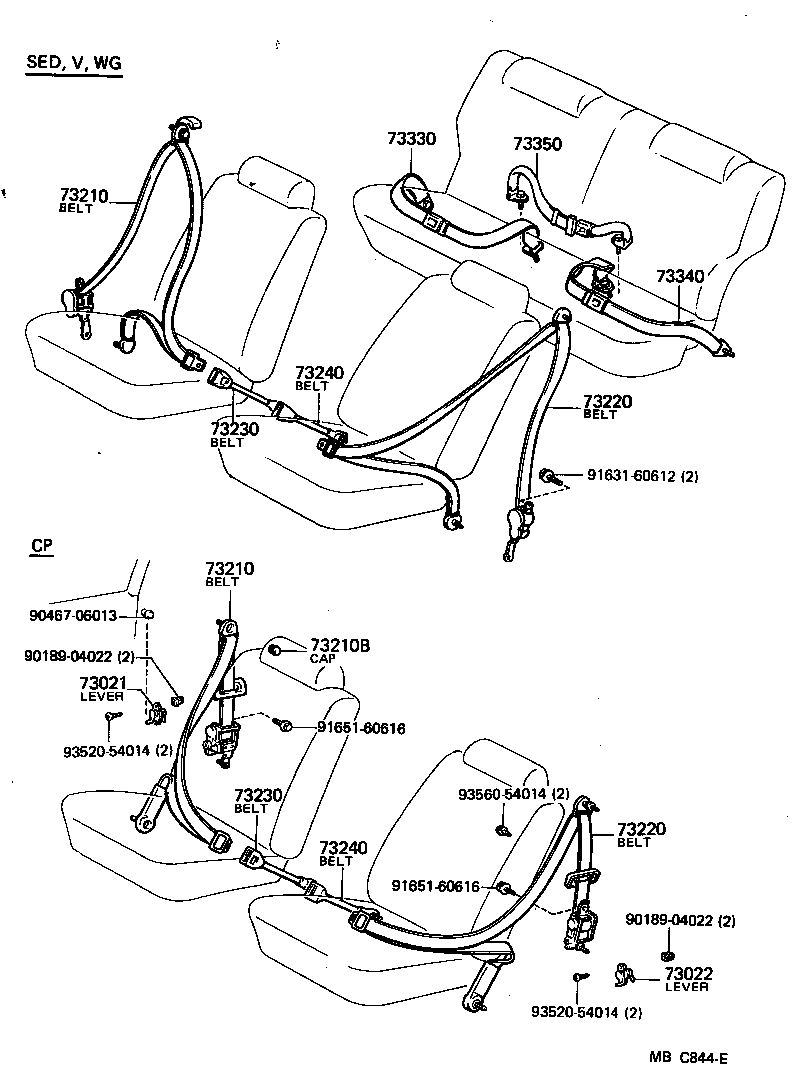

Click highlighted areas on diagram

diagram 73021 73022 73210 73210 73210B 73220 73220 73230 73230 73240 73240 73330 73340 73350 9018904022 9018904022 9046706013 9163160612 9165160616 9165160616 9352054014 9352054014 9356054014
Part # Description Qty Price
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-14020

AA6#,RA63,SA60,TA61,63..CP

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-14020

AA6#,RA63,SA60,TA61,63..CP

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73210-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73210-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73210-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73210-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 2
73178-1201004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 2
73178-1201006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1421001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73220-1421004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73220-1421006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1421001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73220-1421004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73220-1421006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1420001

AA60,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1419004

AA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
73230-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73230-1419006

AA60,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73230-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73230-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1420001

AA60,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1419004

AA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
73230-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73230-1419006

AA60,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73230-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73230-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1419004

AA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
73230-1420001

AA60,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73230-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73230-1419006

AA60,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73230-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1419004

AA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
73230-1420001

AA60,RA63,SA60,TA6#

BLACK,BLACK,TRIM2#

 1
73230-1427006

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

DARK BROWN,BROWN,TRIM4#

 1
73230-1427004

AA60,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)

BLUE,BLUE,TRIM8#

 1
73230-1419006

AA60,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73230-1427001

AA60,RA63,SA60,TA61,63..CP

BLACK,BLACK,TRIM2#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1411004

AA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
73330-1411001

AA60,CA60,RA63,SA60,TA61,63..CP,SED

BLACK,BLACK,TRIM2#

 1
73330-1411006

AA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1411001

AA60,CA60,RA63,SA60,TA61,63..CP,SED

BLACK,BLACK,TRIM2#

 1
73330-1411006

AA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
73330-1411004

AA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
Common parts
90189-04022
90467-06013
91631-60612
91651-60616
93520-54014
93560-54014
