TA63-ACMSE (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3TEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

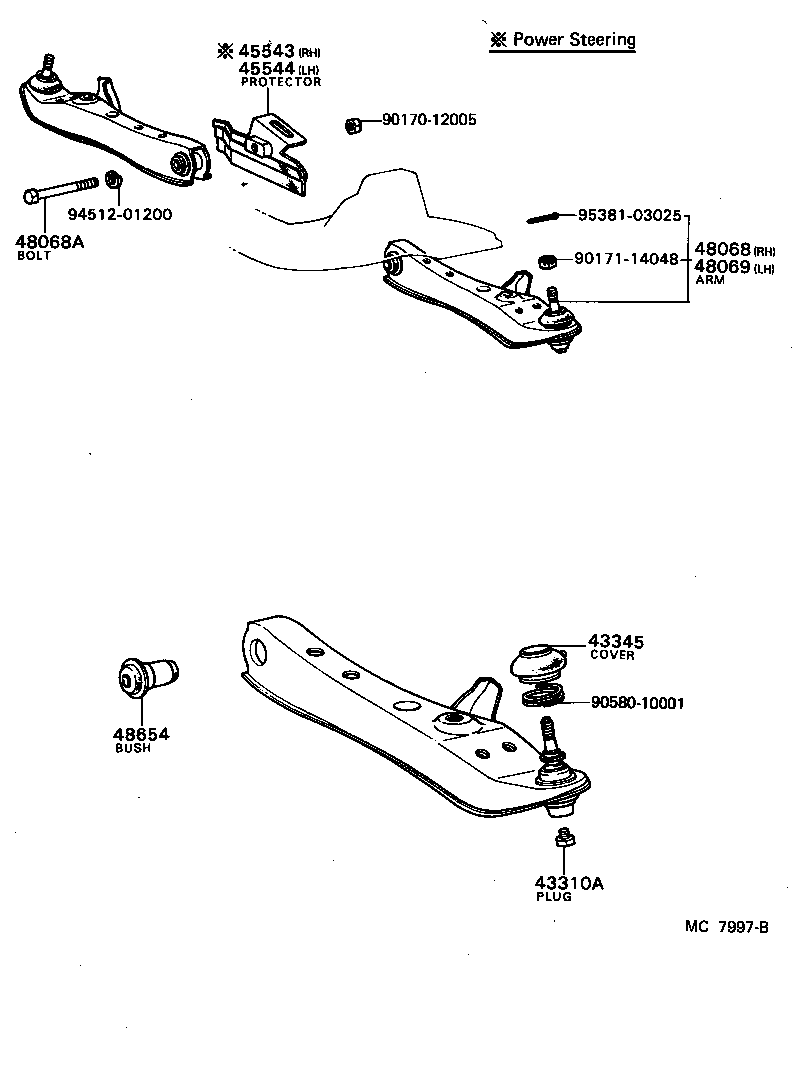

Click highlighted areas on diagram

diagram 43310A 43345 45543 45544 48068 48068A 48069 48654 9017012005 9017114048 9058010001 9451201200 9538103025
Part # Description Qty Price
43310A - PLUG (FOR BALL JOINT)
90345-06014

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
43345 - COVER, LOWER BALL JOINT DUST
43345-14020

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
45543 - PROTECTOR, STEERING RACK BOOT, RH
45543-14010

TA63

 1
45544 - PROTECTOR, STEERING RACK BOOT, LH
45544-14010

TA63

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19105

AA6#,CA60,RA63,SA60,TA61,63

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-12291

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19085

AA6#,CA60,RA63,SA60,TA61,63

 1
48654 - BUSH, LOWER ARM
48654-12010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
Common parts
90170-12005
90171-14048
90580-10001
94512-01200
95381-03025
