TA63-ACMQZ (1982)

Toyota Carina Fr

Production Oct 1982 - Jul 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

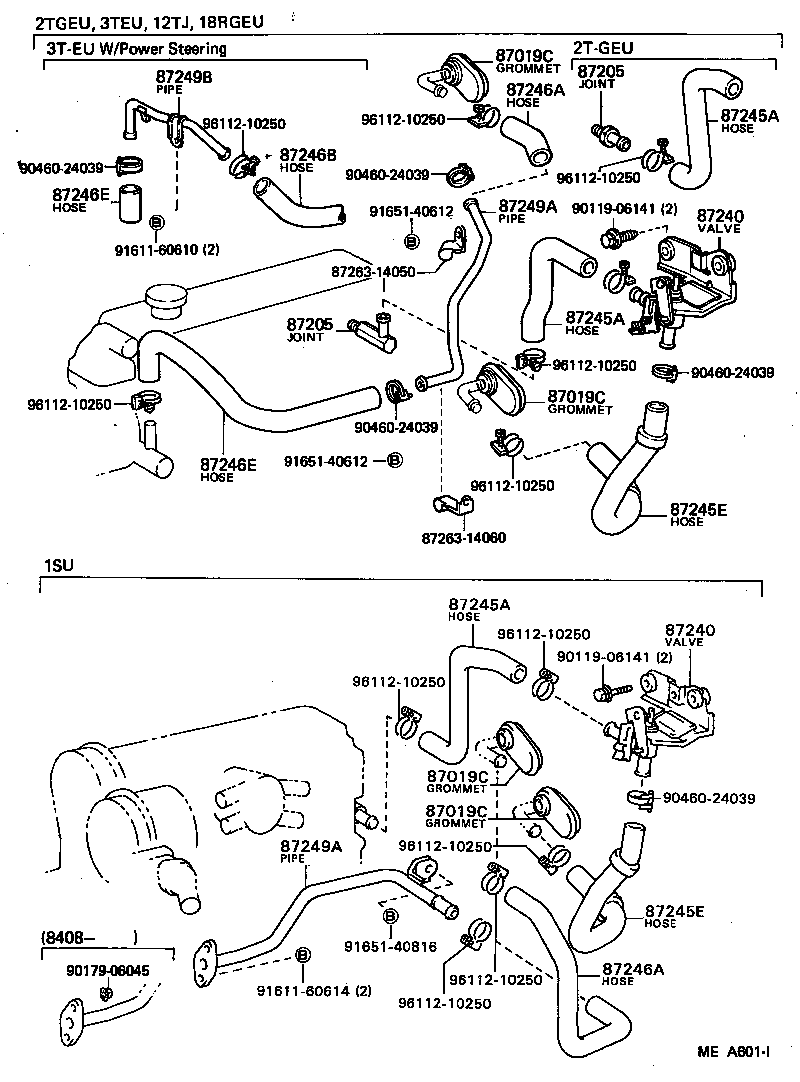

ILLUST NO. 1 OF 2(8109-8804)RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245A 87245E 87245E 87246A 87246A 87246B 87246E 87246E 87249A 87249A 87249B 8726314050 8726314060 9011906141 9011906141 9017906045 9046024039 9046024039 9046024039 9046024039 9046024039 9161160610 9161160614 9165140612 9165140612 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-14040

TA63..GTT

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-14040

TA63..GTT

 1
87240 - VALVE ASSY, HEATER WATER
88670-14060

AA63,CA60,RA63,SA60,TA61,63

W/*AAC

 1
87240-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
87240 - VALVE ASSY, HEATER WATER
88670-14060

AA63,CA60,RA63,SA60,TA61,63

W/*AAC

 1
87240-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14770

RA63,TA63,67..DLX,GT,SE,SG,ST,STD

 1
87245-1B110

TA63..GTT

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14770

RA63,TA63,67..DLX,GT,SE,SG,ST,STD

 1
87245-1B110

TA63..GTT

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14770

RA63,TA63,67..DLX,GT,SE,SG,ST,STD

 1
87245-1B110

TA63..GTT

 1
87245E - HOSE, HEATER WATER, INLET E
87245-14740

RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-14740

RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1B040

CA6#,RA63,TA6#..DLX,GT,SE,SG,ST,STD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1B040

CA6#,RA63,TA6#..DLX,GT,SE,SG,ST,STD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B080

TA63..GTT

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B080

TA63..GTT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14170

RA63,TA6#..DLX,GT,SE,SG,ST,STD

 1
87208-14200

TA63..GTT

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14170

RA63,TA6#..DLX,GT,SE,SG,ST,STD

 1
87208-14200

TA63..GTT

 1
Common parts
87263-14050
87263-14060
90119-06141
90179-06045
90460-24039
91611-60610
91611-60614
91651-40612
91651-40816
96112-10250

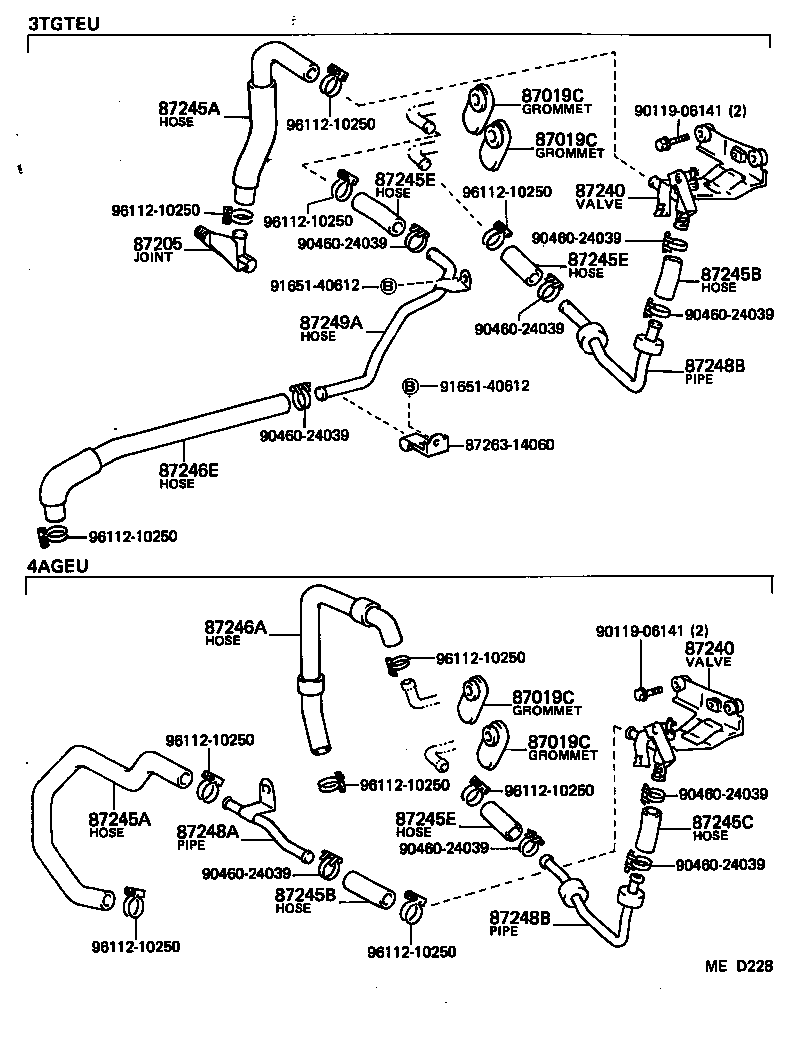

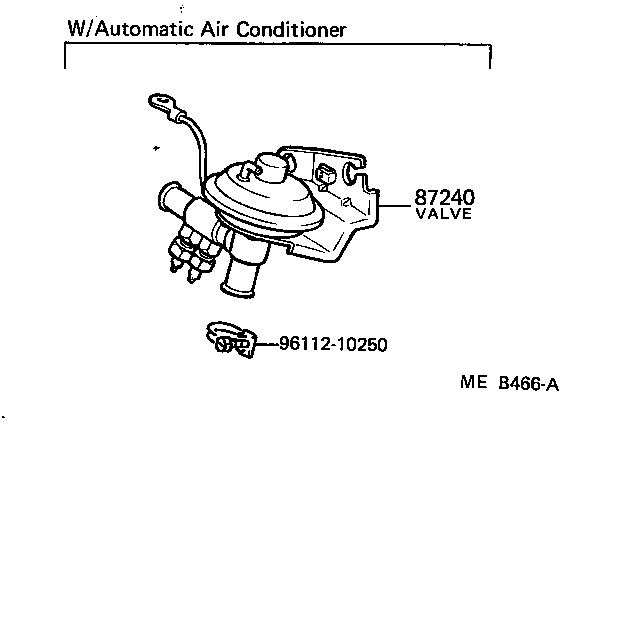

ILLUST NO. 2 OF 2(8109-8804)

Click highlighted areas on diagram

diagram 87240 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
88670-14060

AA63,CA60,RA63,SA60,TA61,63

W/*AAC

 1
87240-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
Common parts
96112-10250
