TA63-ACMEE (1981)
Toyota Carina Fr

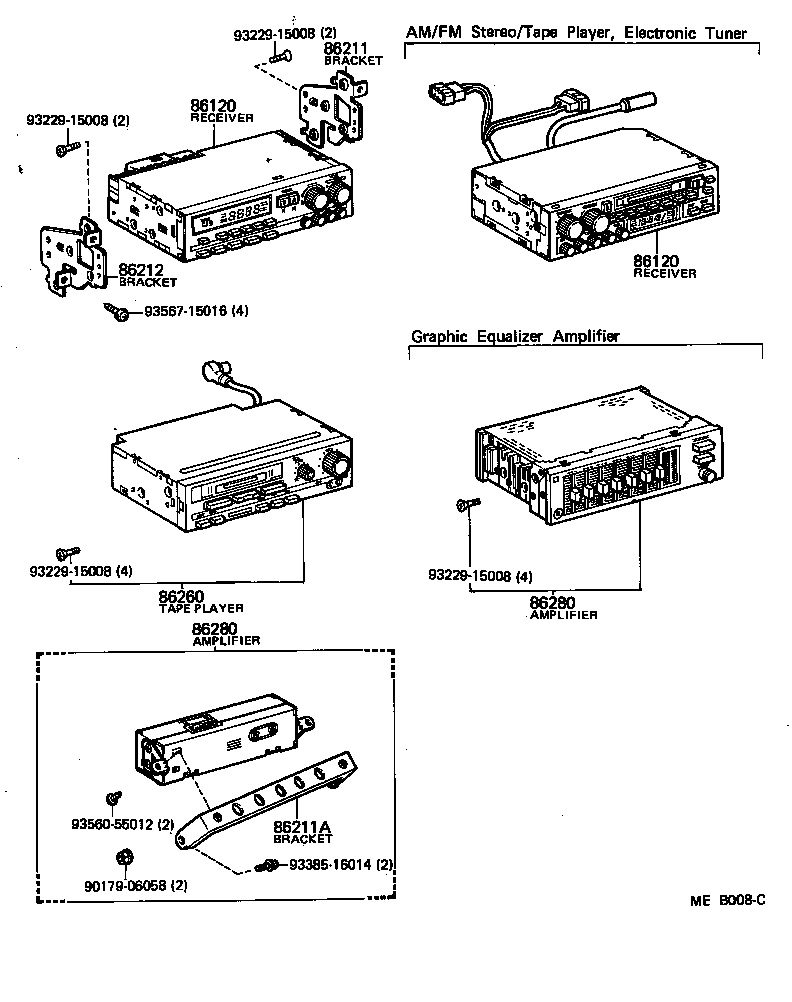

ILLUST NO. 1 OF 2(8109-8804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14550 |
CA60,SA60,TA63..SE AM/FM MULTIPLEX 5-BUTTON |
1 | ||
| 86120-14560 |
CA60,RA63,SA60,TA61,63..GT,SE *26 |
1 | ||
| 86120-14570 |
CA60,RA63,SA60,TA61,63..GT,GTT,SE *27 |
1 | ||
| 86120-20480 |
CA60,SA60,TA63..SE *29 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14550 |
CA60,SA60,TA63..SE AM/FM MULTIPLEX 5-BUTTON |
1 | ||
| 86120-14560 |
CA60,RA63,SA60,TA61,63..GT,SE *26 |
1 | ||
| 86120-14570 |
CA60,RA63,SA60,TA61,63..GT,GTT,SE *27 |
1 | ||
| 86120-20480 |
CA60,SA60,TA63..SE *29 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-14110 |
AA60,CA6#,RA63,SA60,TA6# AM,*19 OR *27 |
1 | ||
| 86211-14160 |
CA60,RA63,SA60,TA61,63..GT,SE AM/FM MULTIPLEX 5-BUTTON OR*26 |
1 | ||
| 86211-14180 |
RA63,TA61,63..GT,SE AM/FM MULTI,5-BUT OR *26,W/*CC |
1 | ||
| 86211A - BRACKET, STEREO COMPONENT, NO.1 | ||||
| 86211-14120 |
AA6#,CA67,KA67,RA63,SA60,TA6# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-14060 |
AA60,CA6#,RA63,SA60,TA6# AM,*19 OR *27 |
1 | ||
| 86212-14130 |
CA60,RA63,SA60,TA61,63..GT,SE AM/FM MULTIPLEX 5-BUTTON OR*26 |
1 | ||
| 86212-14150 |
RA63,TA61,63..GT,SE AM/FM MULTI,5-BUT OR *26,W/*CC |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19075 |
CA60,RA63,SA60,TA61,63..GT,SE 5-SPEAKER,W/RECORDING |
1 | ||
| 86260-19076 |
CA60,RA63,SA60,TA61,63..GT,SE 5-SPEAKER,W/RECORDING |
1 | ||
| 86260-19065 |
CA60,RA63,SA60,TA61,63..GT,SE 5-SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-19065 |
CA60,RA63,SA60,TA61,63..GT,SE 5-SPEAKER,GRAPHIC EQUALIZER |
1 | ||
| 86280-19075 |
AA63,CA60,RA63,SA60,TA61,63..GT,GTT,SE 5-SPEAKER |
1 | ||
| 86280-19085 |
CA60,RA63,SA60,TA61,63..GT,GTT,SE 5-SPEAKER,RECEIVER=*27 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-19065 |
CA60,RA63,SA60,TA61,63..GT,SE 5-SPEAKER,GRAPHIC EQUALIZER |
1 | ||
| 86280-19075 |
AA63,CA60,RA63,SA60,TA61,63..GT,GTT,SE 5-SPEAKER |
1 | ||
| 86280-19085 |
CA60,RA63,SA60,TA61,63..GT,GTT,SE 5-SPEAKER,RECEIVER=*27 |
1 | ||
| Common parts | ||||
| 90179-06058 | ||||
| 93229-15008 | ||||
| 93385-16014 | ||||
| 93560-55012 | ||||
| 93567-15016 | ||||

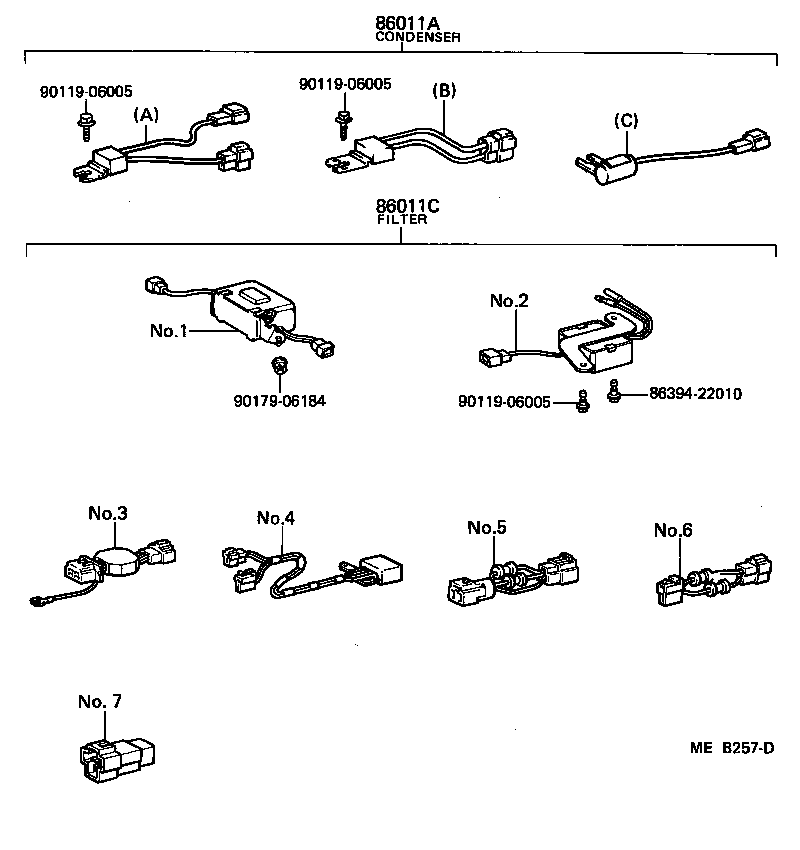

ILLUST NO. 2 OF 2(8109-8804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04036 |
AA60,RA63,SA60,TA6# (A)IGNITION COIL |
1 | ||
| 90980-04023 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE (C)DEFOGGER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05071 |
RA63,TA61,63..CP..(GT,SE) NO.2 (DEFOGGER) |
1 | ||
| 90980-05073 |
AA60,CA60,RA63,SA60,TA61,63..CP,SED NO.7 (STOP LAMP SWITCH) |
1 | ||
| 90980-05078 |
AA6#,CA6#,KA67,RA63,SA60,TA6# NO.5 (FLASHER) |
1 | ||
| 90980-05080 |
AA6#,CA6#,KA67,RA63,SA60,TA6# NO.6 (STOP LAMP SWITCH) |
1 | ||
| 90980-05022 |
AA6#,CA6#,KA67,RA63,SA60,TA6# NO.3 (FR WIPER MOTOR) |
1 | ||
| 90980-05077 |
AA6#,CA6#,KA67,RA63,SA60,TA6# NO.4 (HEATER BLOWER MOTOR) |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90179-06184 | ||||
