TA61-AEMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8109-8804)

Click highlighted areas on diagram

diagram 88453 88460 88460 88460B 88460B 88460B 88460C 88460C 88460C 88460D 88461A 88467 88467 8846714040 8846714050 8846714050 88470 88470B 88479 88550 8859614010 88635A 8868814430 8868814530 8868814540 88716A 88716B 8871812280 8889712120 8889712120 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9331514008 9338515010 9338516030 9338516030 9338516035 9338516040 9338616016 9338616016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460 - CONDENSER ASSY, COOLER
88460-14210

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14410

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14410

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14410

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14400

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14400

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14400

AA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
88470B - BOLT, FUSE
90099-04579

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AA6#,CA6#,KA67,RA63,SA60,TA6#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14740

AA60,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
Common parts
88467-14040
88467-14050
88596-14010
88688-14430
88688-14530
88688-14540
88718-12280
88897-12120
90179-06032
93315-14008
93385-15010
93385-16030
93385-16035
93385-16040
93386-16016

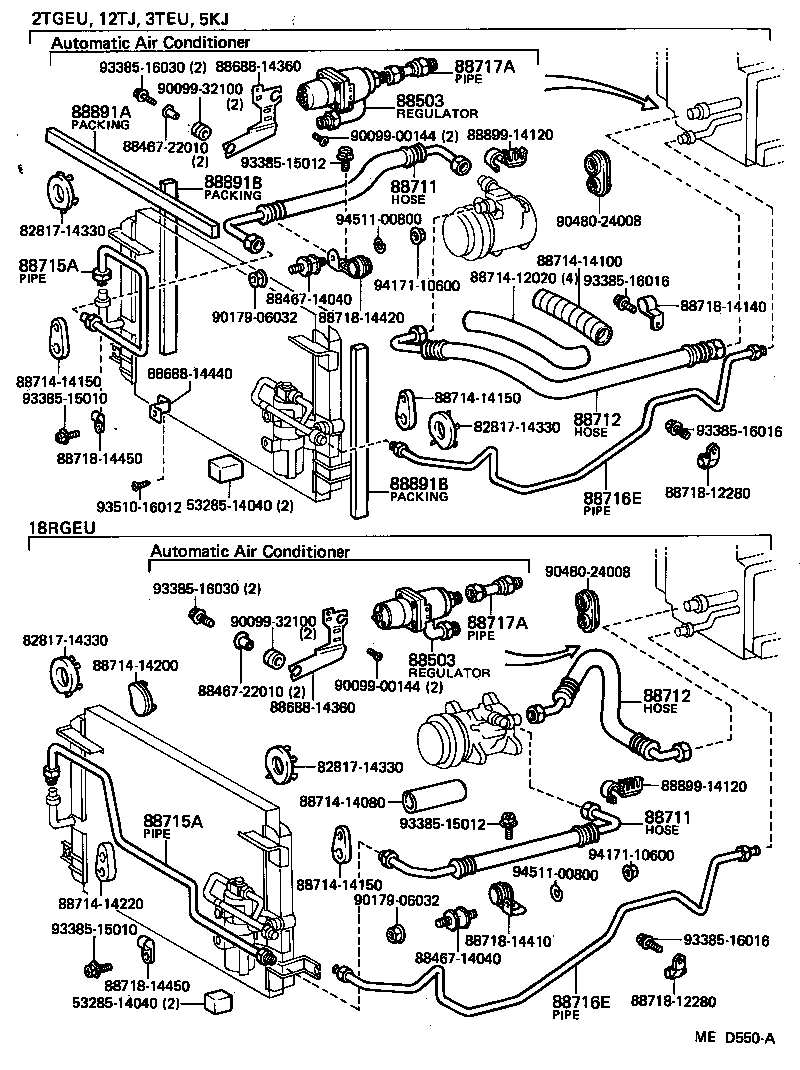

ILLUST NO. 2 OF 2(8109-8305)RA63,TA6#..DLX,GT,SE,SG,ST,STD ; (8308- )KA67

Click highlighted areas on diagram

diagram 5328514040 5328514040 8281714330 8281714330 8281714330 8281714330 8846714040 8846714040 8846722010 8846722010 88503 88503 8868814360 8868814360 8868814440 88711 88711 88712 88712 8871412020 8871414080 8871414100 8871414150 8871414150 8871414150 8871414200 8871414220 88715A 88715A 88716E 88716E 88717A 88717A 8871812280 8871812280 8871814140 8871814410 8871814420 8871814450 8871814450 88891A 88891B 88891B 8889914120 8889914120 9009900144 9009900144 9009932100 9009932100 9017906032 9017906032 9048024008 9048024008 9338515010 9338515010 9338515012 9338515012 9338516016 9338516016 9338516016 9338516030 9338516030 9351016012 9417110600 9417110600 9451100800 9451100800
Part # Description Qty Price
88503 - REGULATOR ASSY, PRESSURE
88503-20050

TA61,63..GT,SE,ST

W/*AAC

 1
88503 - REGULATOR ASSY, PRESSURE
88503-20050

TA61,63..GT,SE,ST

W/*AAC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14420

TA6#..DLX,GT,SE,SG,ST,STD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14420

TA6#..DLX,GT,SE,SG,ST,STD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14730

TA6#..DLX,GT,SE,SG,ST,STD

 1
88712-14750

TA61,63..GT,SE,ST

W/*AAC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14730

TA6#..DLX,GT,SE,SG,ST,STD

 1
88712-14750

TA61,63..GT,SE,ST

W/*AAC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

TA6#..DLX,GT,SE,SG,ST,STD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14130

TA6#..DLX,GT,SE,SG,ST,STD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14240

CA60,RA63,SA60,TA61,63..GT,SE,SG,ST

W/*AAC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14240

CA60,RA63,SA60,TA61,63..GT,SE,SG,ST

W/*AAC

 1
88891A - PACKING A (FOR COOLER)
53293-14040

TA61,67..MTM

 1
88891B - PACKING B (FOR COOLER)
53291-14020

KA67,TA6#

 2
88891B - PACKING B (FOR COOLER)
53291-14020

KA67,TA6#

 2
Common parts
53285-14040
82817-14330
88467-14040
88467-22010
88688-14360
88688-14440
88714-12020
88714-14080
88714-14100
88714-14150
88714-14200
88714-14220
88718-12280
88718-14140
88718-14410
88718-14420
88718-14450
88899-14120
90099-00144
90099-32100
90179-06032
90480-24008
93385-15010
93385-15012
93385-16016
93385-16030
93510-16012
94171-10600
94511-00800
