TA61-AEMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8305)2TGEU

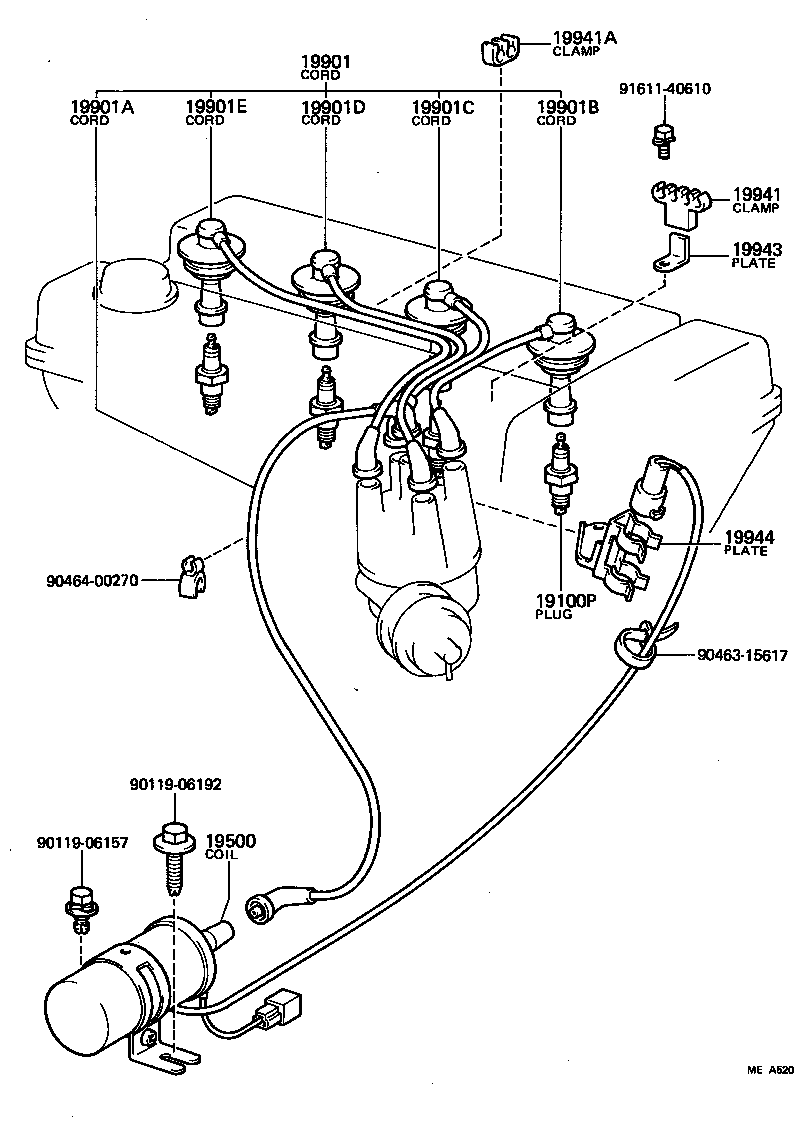

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 19943 19944 9011906157 9011906192 9046315617 9046400270 9161140610
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01104

2TGEU..TA61

BPR5EY11,BPR5EY11(NGK)

 4
90919-01091

2TGEU..TA61

W16EXR−U11,W16EXR-U11(DENSO)

 4
19500 - COIL ASSY, IGNITION
90919-02131

2TGEU..TA61

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21266

2TGEU..TA61

 1
19901A - CORD, COIL RESISTIVE
90919-13102

2TGEU..TA61

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90072-76848

2TGEU..TA61

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90072-76849

2TGEU..TA61

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90072-76850

2TGEU..TA61

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90072-76851

2TGEU..TA61

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-88260

2TGEU..TA61

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00208

2TGEU..TA61

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-88260

2TGEU..TA61

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-88261

2TGEU..TA61

 1
Common parts
90119-06157
90119-06192
90463-15617
90464-00270
91611-40610
