TA61-AEMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8305)2TGEU

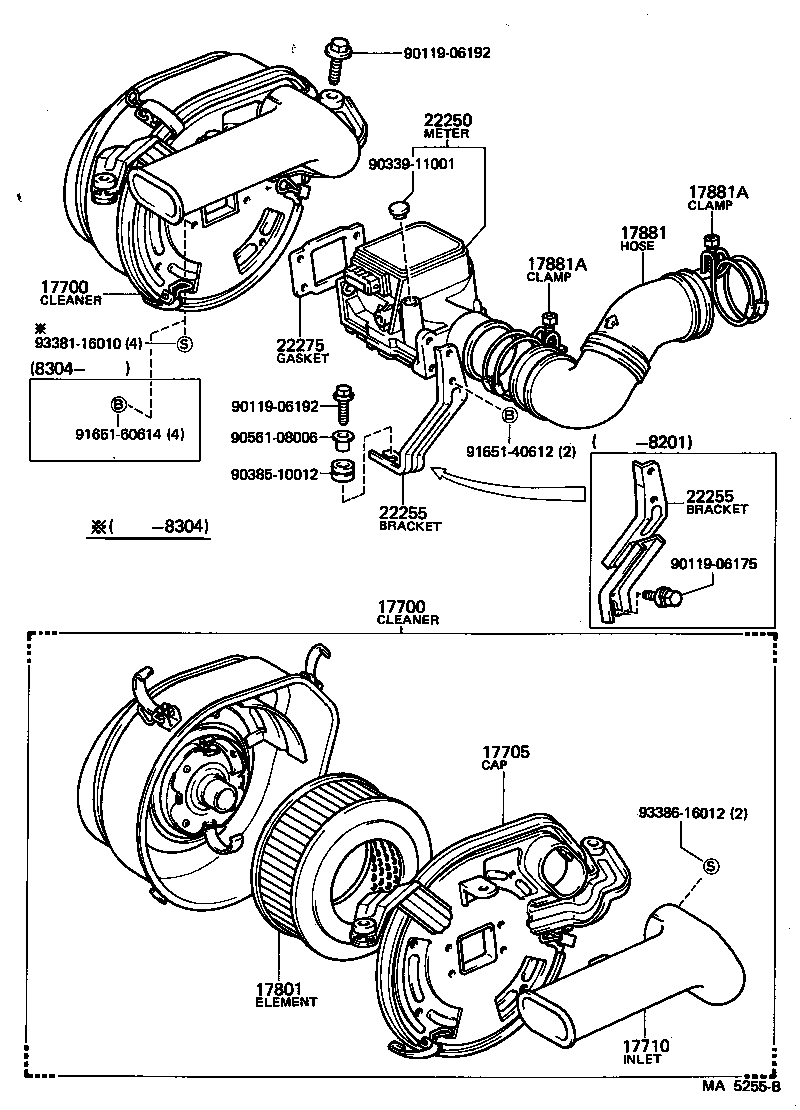

Click highlighted areas on diagram

diagram 17700 17700 17705 17710 17801 17881 17881A 17881A 22250 22255 22255 22275 9011906175 9011906192 9011906192 9033911001 9038510012 9056108006 9165140612 9165160614 9338116010 9338616012
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-26260

2TGEU..TA61

 1
17700-26260

2TGEU..TA61

 1
17700 - CLEANER ASSY, AIR
17700-26260

2TGEU..TA61

 1
17700-26260

2TGEU..TA61

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-26060

2TGEU..TA61

 1
17705-26060

2TGEU..TA61

 1
17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1
17751-34040

2TGEU,3T#..TA61,63

 1
17751-34040

2TGEU,3T#..TA61,63

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24010

2TGEU,3TEU..TA61,63

 1
17801-24010

2TGEU,3TEU..TA61,63

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26051

2TGEU..TA61

 1
17881-26051

2TGEU..TA61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

2TGEU,3TEU..TA61,63

 2
96111-10710

2TGEU,3TEU..TA61,63

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

2TGEU,3TEU..TA61,63

 2
96111-10710

2TGEU,3TEU..TA61,63

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-26011

2TGEU..TA61

 1
22250-26011

2TGEU..TA61

 1
22255 - BRACKET, AIR FLOW METER
22255-34020

2TGEU,3TEU..TA61,63

 1
22255-34020

2TGEU,3TEU..TA61,63

 1
22255 - BRACKET, AIR FLOW METER
22255-34020

2TGEU,3TEU..TA61,63

 1
22255-34020

2TGEU,3TEU..TA61,63

 1
22275 - GASKET, AIR FLOW METER
22275-26021

2TGEU,3TEU..TA61,63

 1
22275-26021

2TGEU,3TEU..TA61,63

 1
Common parts
90119-06175
90119-06192
90339-11001
90385-10012
90561-08006
91651-40612
91651-60614
93381-16010
93386-16012
