TA61-AEMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8305)2TGEU

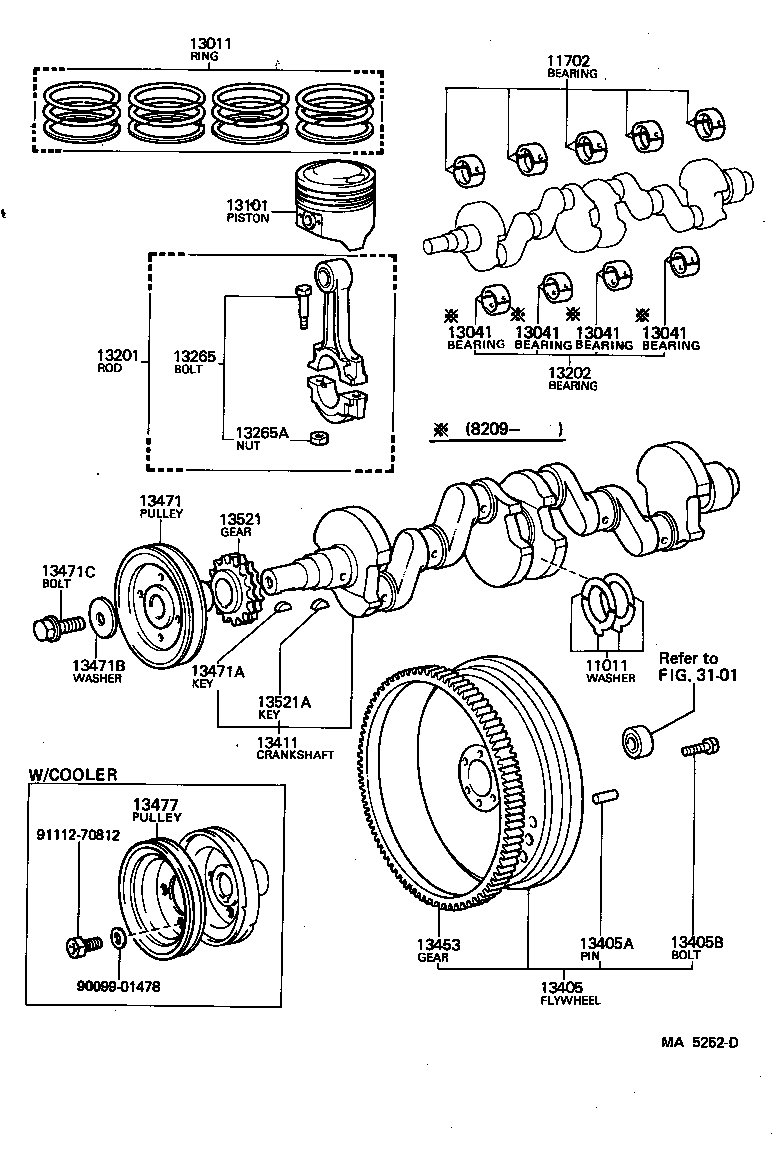

Click highlighted areas on diagram

diagram 11011 11702 13011 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13477 13521 13521A 3101 9009901478 9111270812
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-25010

12TJ,2TGEU,3TEU..TA6#

O/S 0.125

 1
11011-25010

12TJ,2TGEU,3T#..TA6#

STD,STD

 1
11013-25010

12TJ,2TGEU,3TEU..TA6#

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11703-88261

2TGEU..TA61

U/S 0.05

 1
11702-88261

2TGEU..TA61

STD

 1
11705-88261

2TGEU..TA61

U/S 0.50

 1
11704-88261

2TGEU..TA61

U/S 0.25

 1
13011 - RING SET, PISTON
13014-88262

2TGEU..TA61

O/S 0.75

 1
13011-88262

2TGEU..TA61

STD

 1
13015-88262

2TGEU..TA61

O/S 1.00

 1
13013-88262

2TGEU..TA61

O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-88262

2TGEU..TA61

STD

 4
13105-88262

2TGEU..TA61

O/S 1.00

 4
13104-88262

2TGEU..TA61

O/S 0.75

 4
13103-88262

2TGEU..TA61

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

12TJ,2TGEU,3TEU..TA6#

 4
13201-25010

2TGEU..TA61

 4
13201-71011

2TGEU..TA61

 4
13202 - BEARING SET, CONNECTING ROD
13202-88261

2TGEU..TA61

STD

 1
13204-88261

2TGEU..TA61

U/S 0.25

 1
13205-88261

2TGEU..TA61

U/S 0.50

 1
13203-88261

2TGEU..TA61

U/S 0.05

 1
13204-88280

2TGEU..TA61

U/S 0.25

 1
13203-88280

2TGEU..TA61

U/S 0.05

 1
13205-88280

2TGEU..TA61

U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29025

12TJ,2TGEU,3T#..TA6#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

12TJ,2TGEU,3T#..TA6#

 8
13405 - FLYWHEEL SUB-ASSY
13405-29067

12TJ,2TGEU..TA61,67..MTM

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

12TJ,2TGEU,3T#..TA6#..MTM

長さ=23,外径=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

12TJ,2TGEU,3TEU..TA6#..MTM

*10-1.25PX26-18

 6
13411 - CRANKSHAFT
13411-27904

2TGEU..TA61

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

12TJ,2TGEU,3T#..TA6#..MTM

 1
13471 - PULLEY, CRANKSHAFT
13471-88260

2TGEU..TA61

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

12TJ,2TGEU,3T#..TA6#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

12TJ,2TGEU,3T#..TA6#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12051

12TJ,2TGEU,3T#..TA6#

*12-1.25PX24-18

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-14020

2TGEU..TA61

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

12TJ,2TGEU,3T#..TA6#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

12TJ,2TGEU,3T#..TA6#

 1
Common parts
90099-01478
91112-70812
Linked diagrams
3101
