TA61-AEMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8305)2TGEU

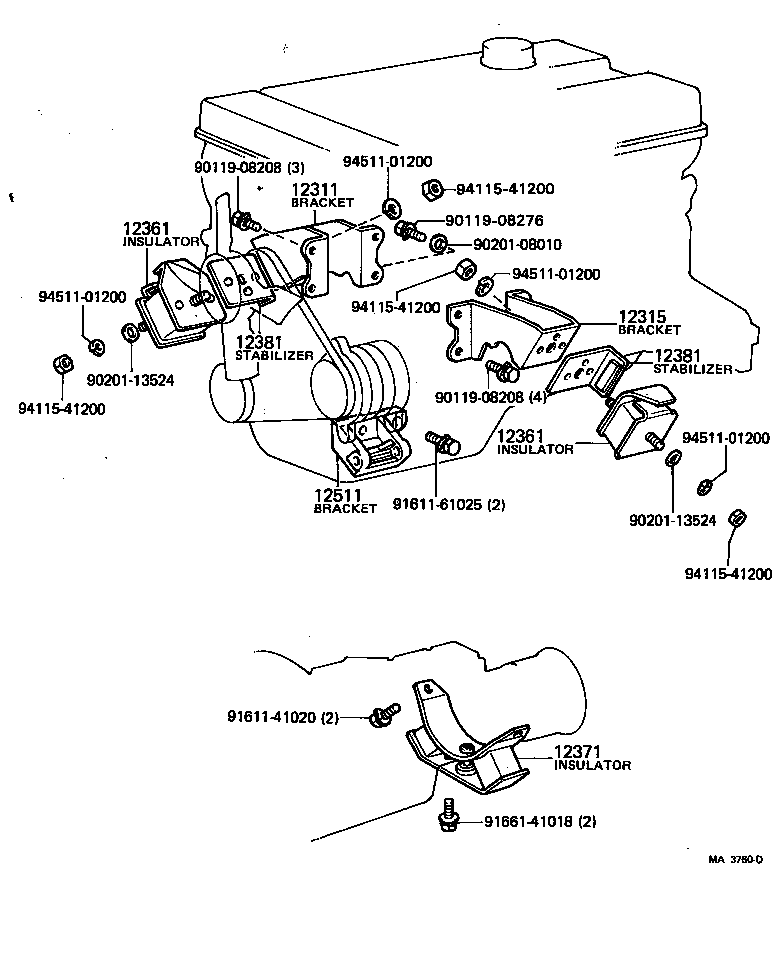

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011908208 9011908208 9011908276 9020108010 9020113524 9020113524 9161141020 9161161025 9166141018 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25051

12TJ,2TGEU,3T#..TA6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-25041

12TJ,2TGEU,3TEU..TA6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-25014

2TGEU..TA61

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-25014

2TGEU..TA61

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

12TJ,2TGEU,3TEU..TA6#..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2TGEU..TA61

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2TGEU..TA61

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

12TJ,2TGEU,3T#..TA6#

 1
Common parts
90119-08208
90119-08276
90201-08010
90201-13524
91611-41020
91611-61025
91661-41018
94115-41200
94511-01200
