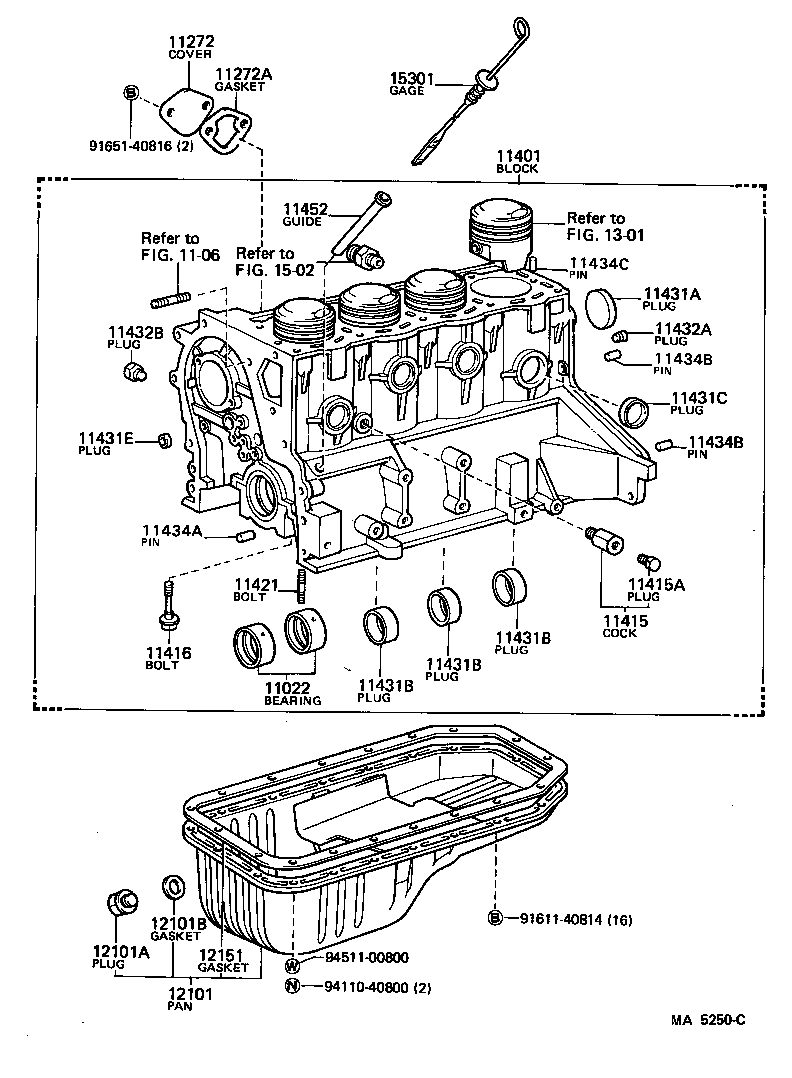

TA61-AEMQF (1981)
Toyota Carina Fr
(8109-8205)2TGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11022 - BEARING SET, PUMP DRIVE SHAFT | ||||
| 11022-27011 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11272 - COVER, CYLINDER BLOCK SIDE, NO.2 | ||||
| 11272-26010 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11272A - GASKET, CYLINDER BLOCK SIDE COVER, NO.2 | ||||
| 11274-88260 |
2TGEU..TA61 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-29286 |
2TGEU..TA61 |
1 | ||
| 11401-29285 |
2TGEU..TA61 |
1 | ||
| 11401-29287 |
2TGEU..TA61 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12TJ,2TGEU,3T#..TA6# L=28 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
12TJ,2TGEU,3T#..TA6# *12-1.25PX62-21 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08057 |
2TGEU,3TGTEU..TA61,63 L=28,S=13&13 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12TJ,2TGEU,3T#..TA6# OD=50 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90339-41001 |
2TGEU..TA61 OD=45.75 |
1 | ||
| 90339-41002 |
2TGEU..TA61 OD=45.50 |
1 | ||
| 90339-42001 |
2TGEU..TA61 OD=46.00 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90339-41001 |
2TGEU..TA61 OD=45.75 |
1 | ||
| 90339-41002 |
2TGEU..TA61 OD=45.50 |
1 | ||
| 90339-42001 |
2TGEU..TA61 OD=46.00 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90339-41001 |
2TGEU..TA61 OD=45.75 |
1 | ||
| 90339-41002 |
2TGEU..TA61 OD=45.50 |
1 | ||
| 90339-42001 |
2TGEU..TA61 OD=46.00 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
12TJ,2TGEU,3T#..TA6# OD=35 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
12TJ,2TGEU,3T#..TA6# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
12TJ,2TGEU,3TEU..TA6# |
1 | ||
| 90344-53011 |
2TGEU..TA61 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90072-34107 |
2TGEU..TA61 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
12TJ,2TGEU,3T#..TA6# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
12TJ,2TGEU,3T#..TA6# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 90250-08120 |
12TJ,2TGEU,3T#..TA6# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
12TJ,2TGEU,3T#..TA6# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 90250-08120 |
12TJ,2TGEU,3T#..TA6# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
12TJ,2TGEU,3T#..TA6# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-40010 |
2TGEU..TA61 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29105 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-25010 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-88260 |
2TGEU..TA61 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1301 | ||||
| 1502 | ||||
