TA61-AEMQF (1981)
Toyota Carina Fr
(8109-8305)2TGEU

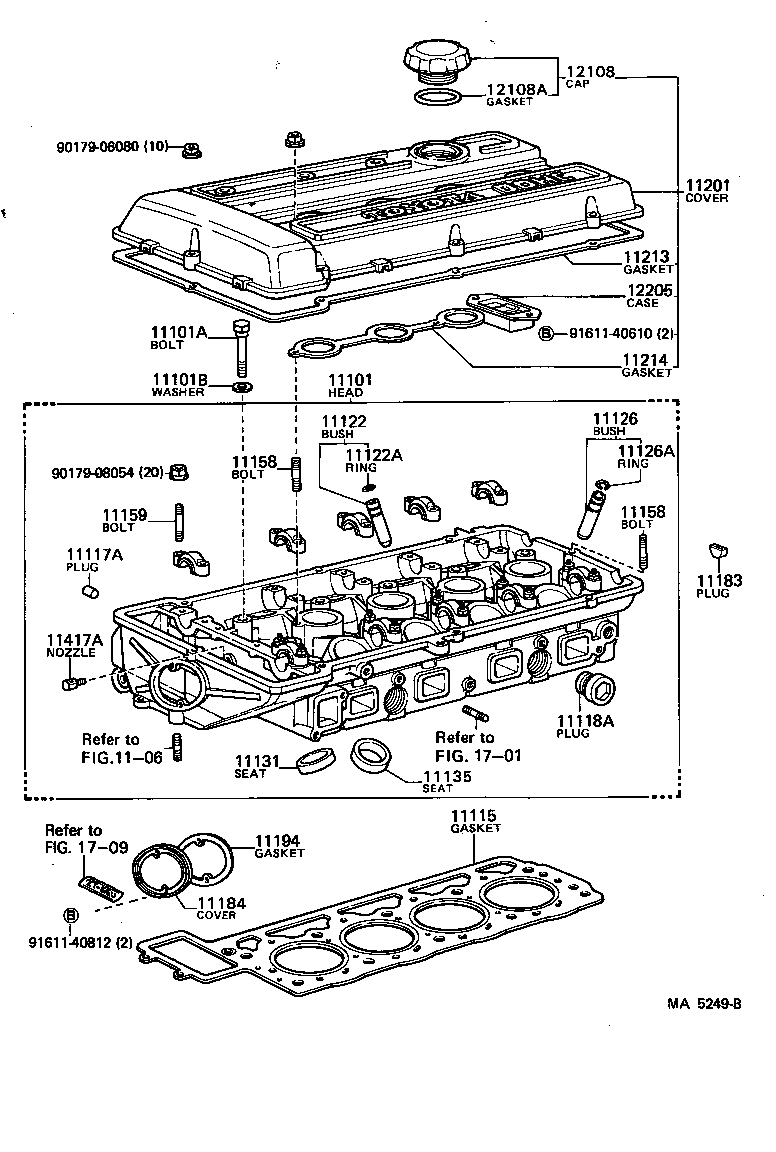

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29365 |
2TGEU..TA61 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90072-70103 |
2TGEU,3TGTEU..TA61,63 *12-1.25PX146-22 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2TGEU,3TGTEU..TA61,63 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88220 |
2TGEU..TA61 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90072-33614 |
2TGEU..TA61 |
3 | ||
| 90336-10002 |
2TGEU..TA61 |
3 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-32031 |
2TGEU..TA61 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-88250 |
2TGEU,3TGTEU..TA61,63 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-13092 |
2TGEU,3TGTEU..TA61,63 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-88250 |
2TGEU,3TGTEU..TA61,63 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-13092 |
2TGEU,3TGTEU..TA61,63 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-26021 |
2TGEU,3TGTEU..TA61,63 O/S 0.03 |
4 | ||
| 11131-26021 |
2TGEU,3TGTEU..TA61,63 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-26021 |
2TGEU,3TGTEU..TA61,63 O/S 0.03 |
4 | ||
| 11135-26021 |
2TGEU,3TGTEU..TA61,63 STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90072-11617 |
2TGEU..TA61 L=35,S=11&11 |
11 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90072-11617 |
2TGEU..TA61 L=35,S=11&11 |
11 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 92132-60835 |
2TGEU,3TGTEU..TA61,63 L=51,S=16&16 |
20 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88260 |
2TGEU,3TGTEU..TA61,63 |
2 | ||
| 11184 - COVER, CYLINDER HEAD, FRONT | ||||
| 11184-88260 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11194 - GASKET, CYLINDER HEAD FRONT COVER | ||||
| 11194-88260 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-29069 |
2TGEU..TA61 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88260 |
2TGEU..TA61 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-88260 |
2TGEU..TA61 |
1 | ||
| 11417A - NOZZLE, OIL | ||||
| 90072-73103 |
2TGEU,3TGTEU..TA61,63 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
12TJ,2TGEU,3TEU..TA6# |
1 | ||
| 12180-13010 |
12TJ,2TGEU,3TEU..TA6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
12TJ,2TGEU,3T#..TA6# |
1 | ||
| 12205 - CASE SUB-ASSY, VENTILATION | ||||
| 12205-88210 |
2TGEU..TA61 |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90179-08054 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 1709 | ||||
