TA61-ACMQF (1981)
Toyota Carina Fr
ILLUST NO. 2 OF 2(8109-8507)CP,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-12023 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=1400 |
2 | ||
| 90446-15011 |
RA63,TA61,63..CP L=1850 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-12023 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=1400 |
2 | ||
| 90446-15011 |
RA63,TA61,63..CP L=1850 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-12023 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=1400 |
2 | ||
| 90446-15011 |
RA63,TA61,63..CP L=1850 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-12023 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=1400 |
2 | ||
| 90446-15011 |
RA63,TA61,63..CP L=1850 |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) RH |
1 | ||
| 63268-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) LH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) RH |
1 | ||
| 63279-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) LH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=48X28,T=1.0 |
1 | ||
| 63277-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=91.5X55,T=1.0 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=48X28,T=1.0 |
1 | ||
| 63277-20010 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) L=91.5X55,T=1.0 |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06123 | ||||
| 90189-05043 | ||||
| 90333-25001 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90480-26004 | ||||
| 90959-01016 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||

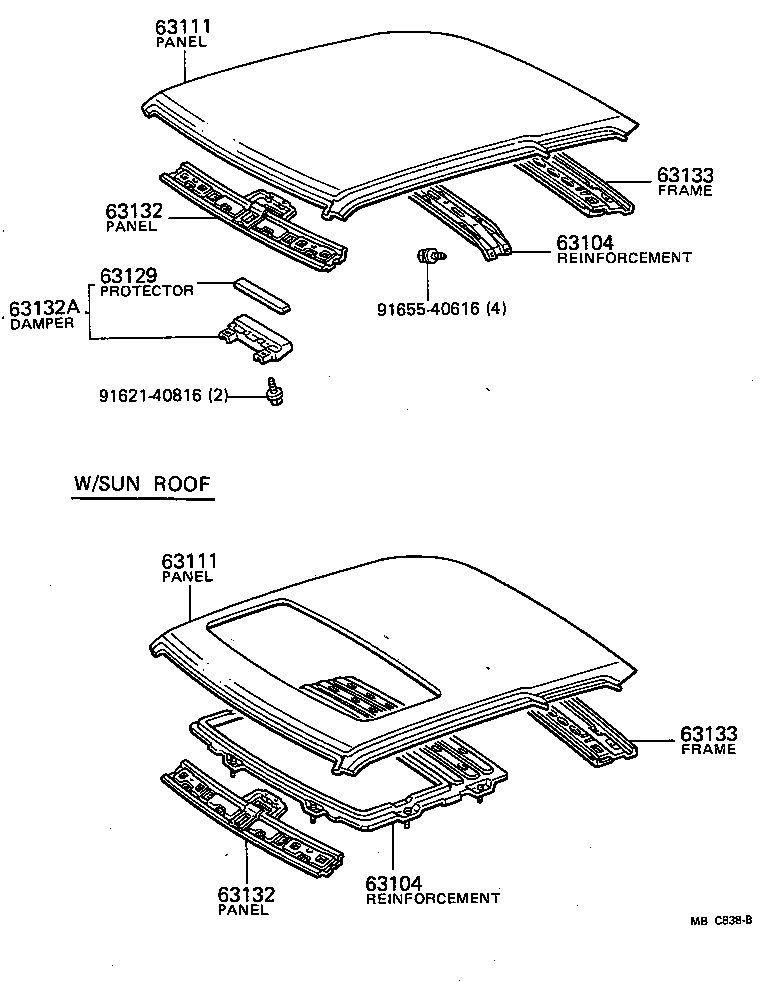

ILLUST NO. 1 OF 2(8109-8507)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63142-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) W/SUN ROOF |
1 | ||
| 63141-14070 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63142-14020 |
CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST) W/SUN ROOF |
1 | ||
| 63141-14070 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-14190 |
RA63,TA61,63..CP W/SUN ROOF |
1 | ||
| 63111-14180 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-14190 |
RA63,TA61,63..CP W/SUN ROOF |
1 | ||
| 63111-14180 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14040 |
AA63,RA63,TA61,63..CP..(GT,GTT,ST) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14040 |
AA63,RA63,TA61,63..CP..(GT,GTT,ST) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-14040 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-14040 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| Common parts | ||||
| 91621-40816 | ||||
| 91655-40616 | ||||
