Toyota Carina fr TA61 FLOOR PAN & LOWER BACK PANEL

Manufacturers Home
Toyota
JP
CARINA FR
TA61-ACMQF (1981)
5801 - FLOOR PAN & LOWER BACK PANEL

TA61-ACMQF (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983

Engine 2TGEU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

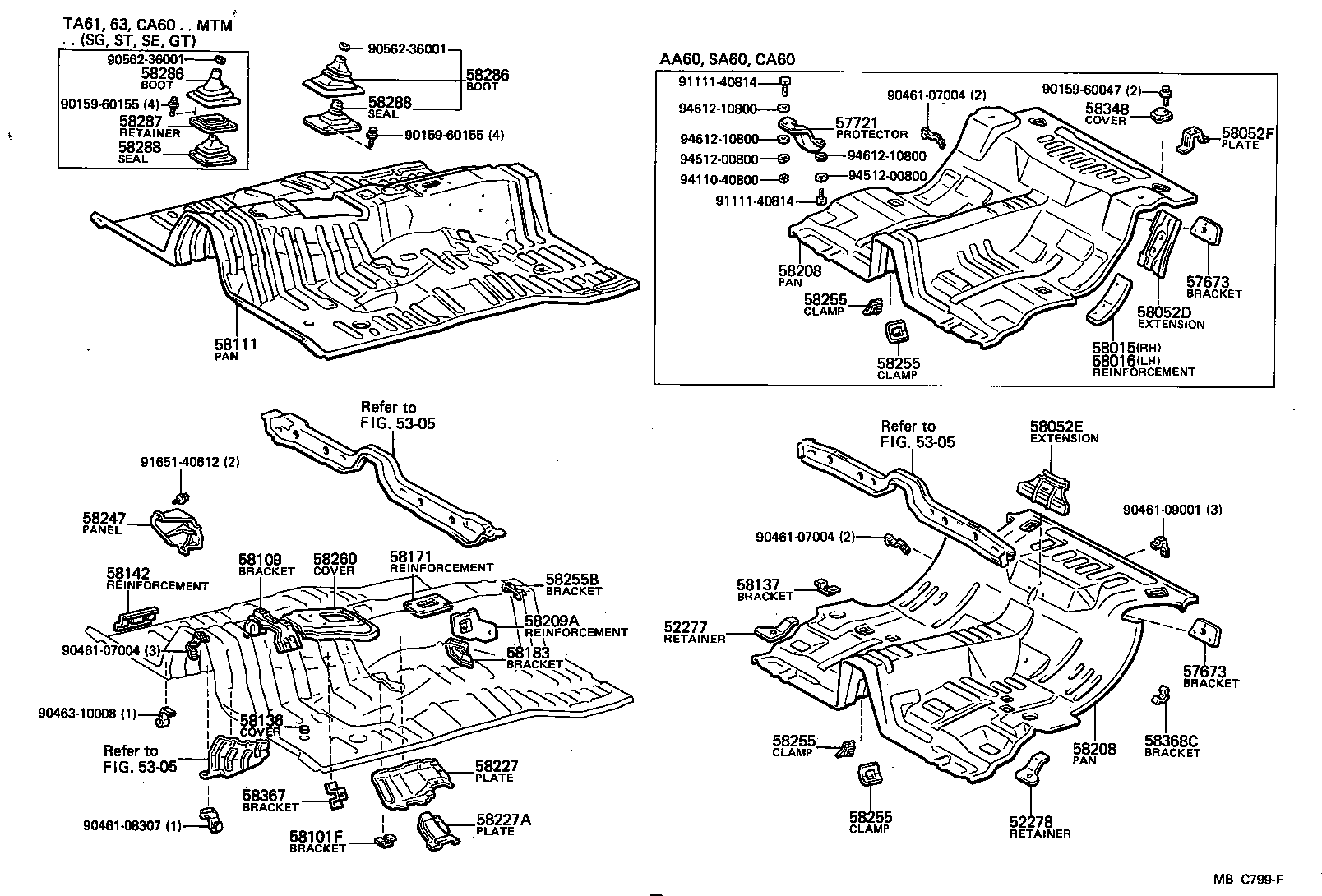

ILLUST NO. 1 OF 2(8109- )AA6#,CA60,RA63,SA60,TA61,63

Click highlighted areas on diagram

Part #	Description	Period	Qty
52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52277-14010	AA63,RA63,TA61,63	09/1981 - 07/1985	1
52278 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH
52278-14010	AA63,RA63,TA61,63	09/1981 - 07/1985	1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-14010	AA6#,RA63,SA60,TA61,63..CP,WG	09/1981 - 04/1988	1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-14010	AA6#,RA63,SA60,TA61,63..CP,WG	09/1981 - 04/1988	1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58131-12020	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	8
58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58193-24010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
58111 - PAN, FRONT FLOOR
58111-24010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
58136 - COVER, FRONT FLOOR HOLE
58136-24010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	2
58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58236-14010	AA63,RA63,TA61,63	09/1981 - 07/1985	1
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-24010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-24010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# LH	09/1981 - 04/1988	1
58183-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# RH	09/1981 - 04/1988	1
58208 - PAN, CENTER FLOOR
58211-14110	AA63,RA63,TA61,63..CP	09/1981 - 06/1984	1
58208 - PAN, CENTER FLOOR
58211-14110	AA63,RA63,TA61,63..CP	09/1981 - 06/1984	1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58278-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# LH	09/1981 - 04/1988	1
58205-14020	AA63,KA67,RA63,TA61,63 RH	09/1981 - 04/1988	1
58227 - PLATE, AIR GUIDE, OUTSIDE
58226-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# RH	09/1981 - 04/1988	1
58227-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# LH	09/1981 - 04/1988	1
58227A - PLATE, AIR GUIDE
58228-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# RH	09/1981 - 04/1988	1
58229-24010	AA6#,CA6#,KA67,RA63,SA60,TA6# LH	09/1981 - 04/1988	1
58247 - PANEL, FOOTREST, INSIDE
58191-24010	AA6#,CA60,RA63,SA60,TA61,63..DLX,GT,GTT,SE,SG,ST	09/1981 - 04/1988	1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14030	AA63,RA63,TA61,63 LH	09/1981 - 07/1985	1
58207-14030	AA63,RA63,TA61,63 RH	09/1981 - 07/1985	1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14030	AA63,RA63,TA61,63 LH	09/1981 - 07/1985	1
58207-14030	AA63,RA63,TA61,63 RH	09/1981 - 07/1985	1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14030	AA63,RA63,TA61,63 LH	09/1981 - 07/1985	1
58207-14030	AA63,RA63,TA61,63 RH	09/1981 - 07/1985	1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14030	AA63,RA63,TA61,63 LH	09/1981 - 07/1985	1
58207-14030	AA63,RA63,TA61,63 RH	09/1981 - 07/1985	1
58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58264-14010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-14080	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-14060	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-14060	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58287 - RETAINER, SHIFT LEVER BOOT
58287-14040	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58288 - SEAL, SHIFT LEVER BOOT
58288-14070	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58288 - SEAL, SHIFT LEVER BOOT
58288-14070	CA6#,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)	09/1981 - 04/1988	1
58367 - BRACKET, FUEL TUBE CLAMP
58266-14040	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 04/1988	1
58368C - BRACKET, FUEL TUBE, NO.3
58267-14030	AA63,RA63,TA61,63	09/1981 - 07/1985	1
Common parts
90159-60047
90159-60155
90461-07004
90461-08307
90461-09001
90463-10008
90562-36001
91111-40814
91651-40612
94110-40800
94512-00800
94612-10800
Linked diagrams
5305

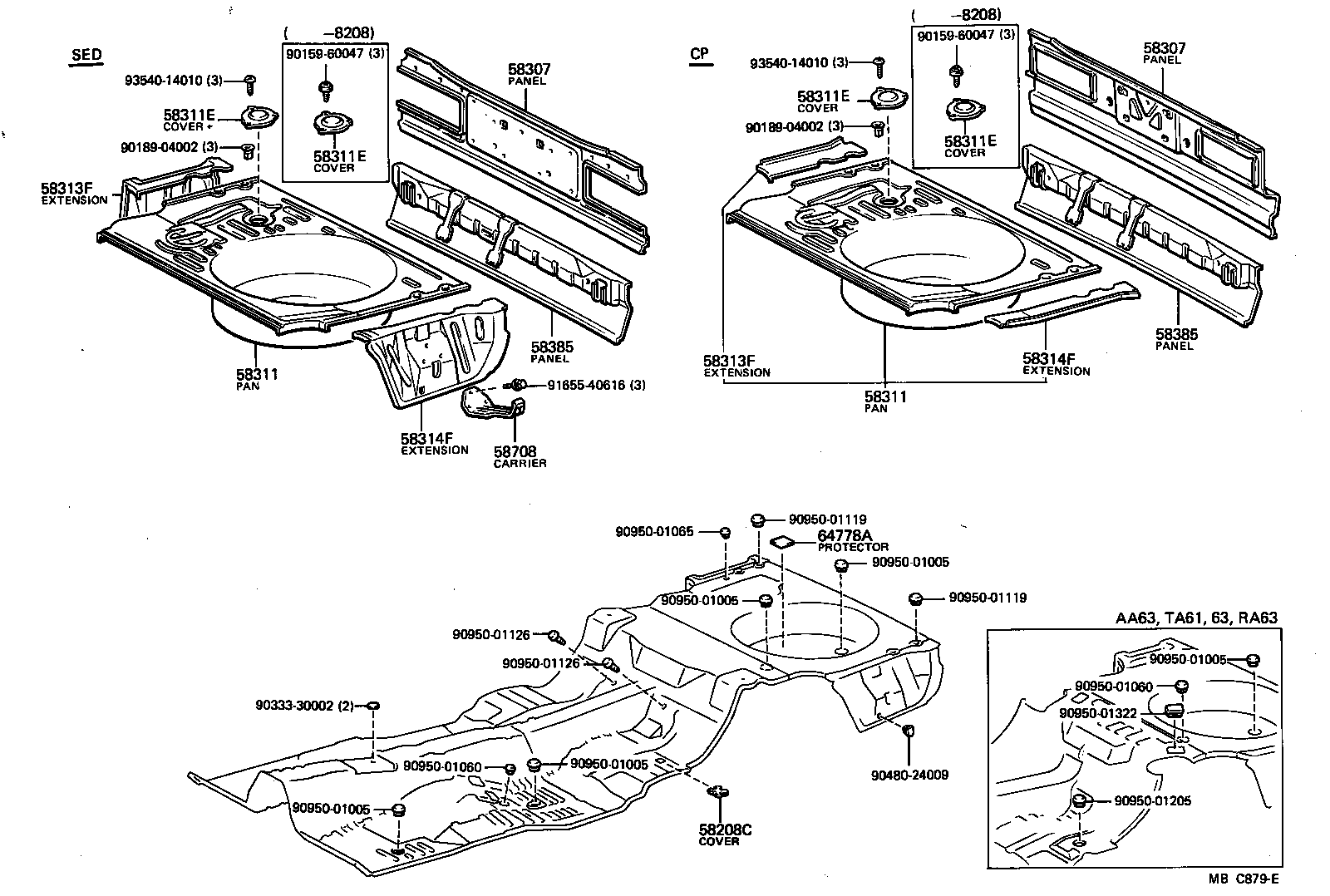

ILLUST NO. 2 OF 2(8109- )CP,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
58208C - COVER, CENTER FLOOR HOLE
58285-14010	AA6#,CA6#,KA67,RA63,SA60,TA6#	09/1981 - 02/1984	2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-14490	AA6#,RA63,SA60,TA61,63..CP	09/1981 - 07/1985	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-14490	AA6#,RA63,SA60,TA61,63..CP	09/1981 - 07/1985	1
58311 - PAN, REAR FLOOR
58301-14350	AA63,RA63,TA61,63..CP	09/1981 - 07/1985	1
58311 - PAN, REAR FLOOR
58301-14350	AA63,RA63,TA61,63..CP	09/1981 - 07/1985	1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020	AA6#,CA60,RA63,SA60,TA61,63	09/1981 - 04/1988	1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020	AA6#,CA60,RA63,SA60,TA61,63	09/1981 - 04/1988	1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020	AA6#,CA60,RA63,SA60,TA61,63	09/1981 - 04/1988	1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020	AA6#,CA60,RA63,SA60,TA61,63	09/1981 - 04/1988	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14180	AA63,RA63,TA61,63..CP	09/1981 - 07/1985	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14180	AA63,RA63,TA61,63..CP	09/1981 - 07/1985	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-14120	AA6#,RA63,SA60,TA61,63..CP	09/1981 - 07/1985	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-14120	AA6#,RA63,SA60,TA61,63..CP	09/1981 - 07/1985	1
58385 - PANEL, REAR VALANCE
58308-14060	AA6#,CA60,RA63,SA60,TA61,63..CP,SED	09/1981 - 04/1988	1
58385 - PANEL, REAR VALANCE
58308-14060	AA6#,CA60,RA63,SA60,TA61,63..CP,SED	09/1981 - 04/1988	1
Common parts
90159-60047
90189-04002
90333-30002
90480-24009
90950-01005
90950-01060
90950-01065
90950-01119
90950-01126
90950-01205
90950-01322
91655-40616
93540-14010

TA61-ACMQF (1981)

ILLUST NO. 1 OF 2(8109- )AA6#,CA60,RA63,SA60,TA61,63

ILLUST NO. 2 OF 2(8109- )CP,SED
