RA63-ACMQF (1981)
Toyota Carina Fr
Production
Sep 1981
-
Oct 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

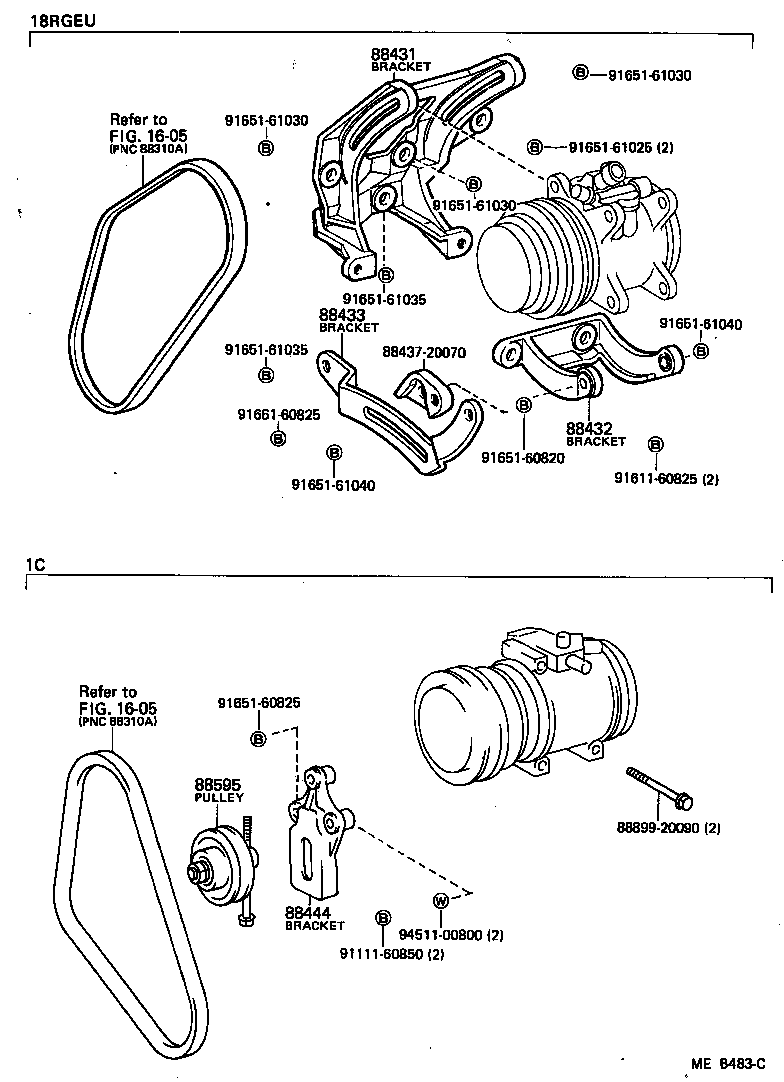

ILLUST NO. 3 OF 3(8109-8804)CA6#,RA63
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-20160 |
RA63 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88437-20100 |
RA63 |
1 | ||
| Common parts | ||||
| 88437-20070 | ||||
| 88899-20090 | ||||
| 91111-60850 | ||||
| 91611-60825 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
| 91661-60825 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 3(8109-8804)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
RA63 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
CA6#,KA67,RA63,SA60 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14260 |
RA63 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14090 |
RA63 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
AA63,CA6#,KA67,RA63,SA60 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
AA60,CA6#,RA63,SA60,TA6# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
AA63,CA6#,KA67,RA63,SA60 |
1 | ||
