RA63-ACMQF (1981)
Toyota Carina Fr
Production
Sep 1981
-
Oct 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8507)CP

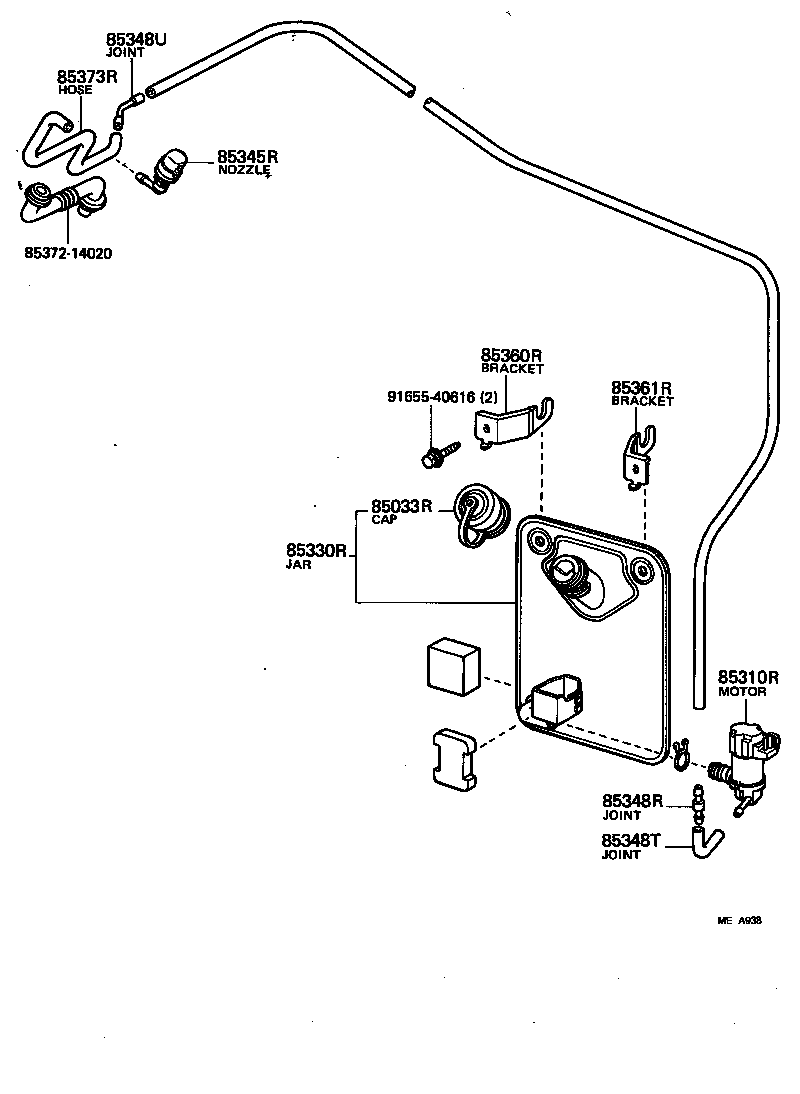

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85332-20070 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-20251 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-23030 |
AA60,RA63,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20070 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85355-14050 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85360R - BRACKET ASSY, REAR WASHER | ||||
| 85361-14410 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85361R - HOLDER, REAR WASHER | ||||
| 85362-14020 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE) *H,L=280 |
1 | ||
| Common parts | ||||
| 85372-14020 | ||||
| 91655-40616 | ||||
