RA63-ACMQF (1981)

Toyota Carina Fr

Production Sep 1981 - Oct 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)CP

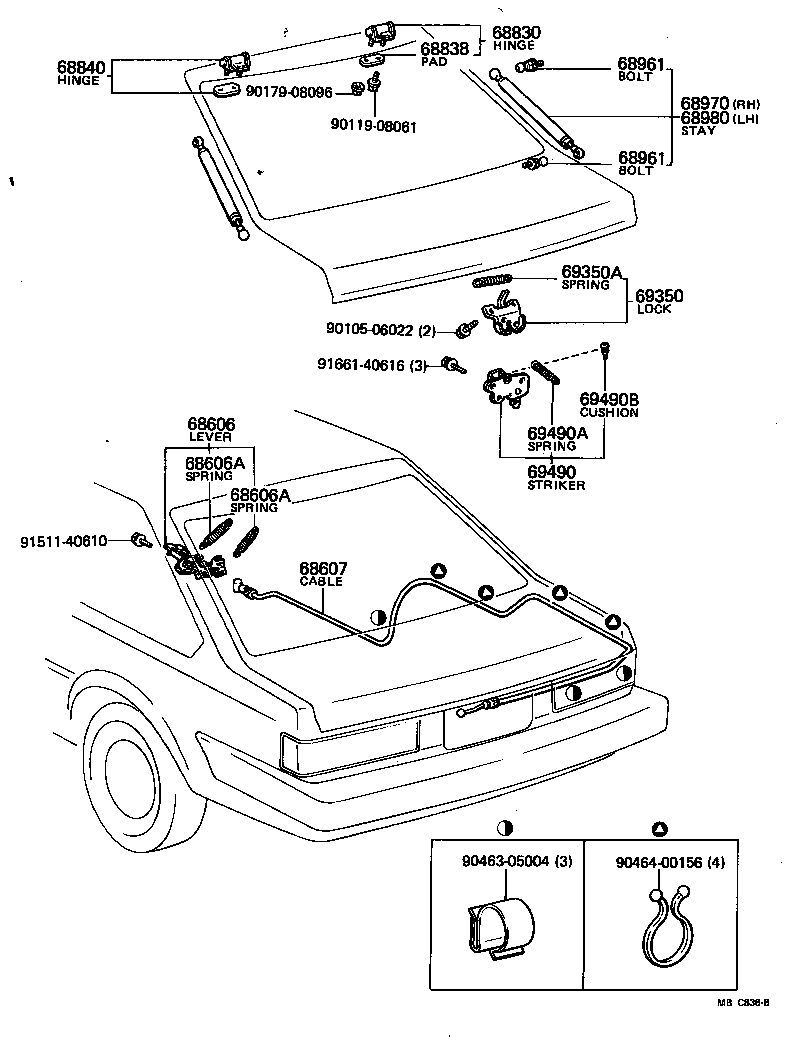

Click highlighted areas on diagram

diagram 68606 68606A 68606A 68607 68830 68838 68840 68961 68961 68970 68980 69350 69350A 69490 69490A 69490B 9010506022 9011908061 9017908096 9046305004 9046400156 9151140610 9166140616
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-14030

AA6#,RA63,SA60,TA61,63..CP

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AA6#,RA63,SA60,TA61,63..CP

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09004

AA6#,RA63,SA60,TA61,63..CP

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-14170

AA6#,RA63,SA60,TA61,63..CP

 1
68830 - HINGE ASSY, BACK DOOR, RH
68801-14030

AA60,RA63,SA60,TA61,63..CP

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AA6#,RA63,SA60,TA61,63..CP

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-14030

AA60,RA63,SA60,TA61,63..CP

 1
68961 - BOLT, BACK DOOR STAY
68961-14020

AA6#,RA63,SA60,TA61,63..CP

 4
68961 - BOLT, BACK DOOR STAY
68961-14020

AA6#,RA63,SA60,TA61,63..CP

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19195

AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

COLD SPEC

 1
68950-19205

AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
68980 - STAY ASSY, BACK DOOR
68950-19195

AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

COLD SPEC

 1
68950-19205

AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
69350 - LOCK ASSY, BACK DOOR
69350-14041

AA6#,RA63,SA60,TA61,63..CP

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90506-08020

AA6#,RA63,SA60,TA61,63..CP

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-14070

AA6#,RA63,SA60,TA61,63..CP

 1
69490A - SPRING(FOR BACK DOOR LOCK STRIKER)
90506-08001

AA6#,RA63,SA60,TA61,63..CP

WD=0.8

 1
90501-07484

AA6#,RA63,SA60,TA61,63..CP

WD=0.7

 1
69490B - CUSHION(FOR BACK DOOR LOCK STRIKER)
90541-06010

AA6#,RA63,SA60,TA61,63..CP

 1
Common parts
90105-06022
90119-08061
90179-08096
90463-05004
90464-00156
91511-40610
91661-40616
