RA63-ACMQF (1981)
Toyota Carina Fr
Production
Sep 1981
-
Oct 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8507)CP

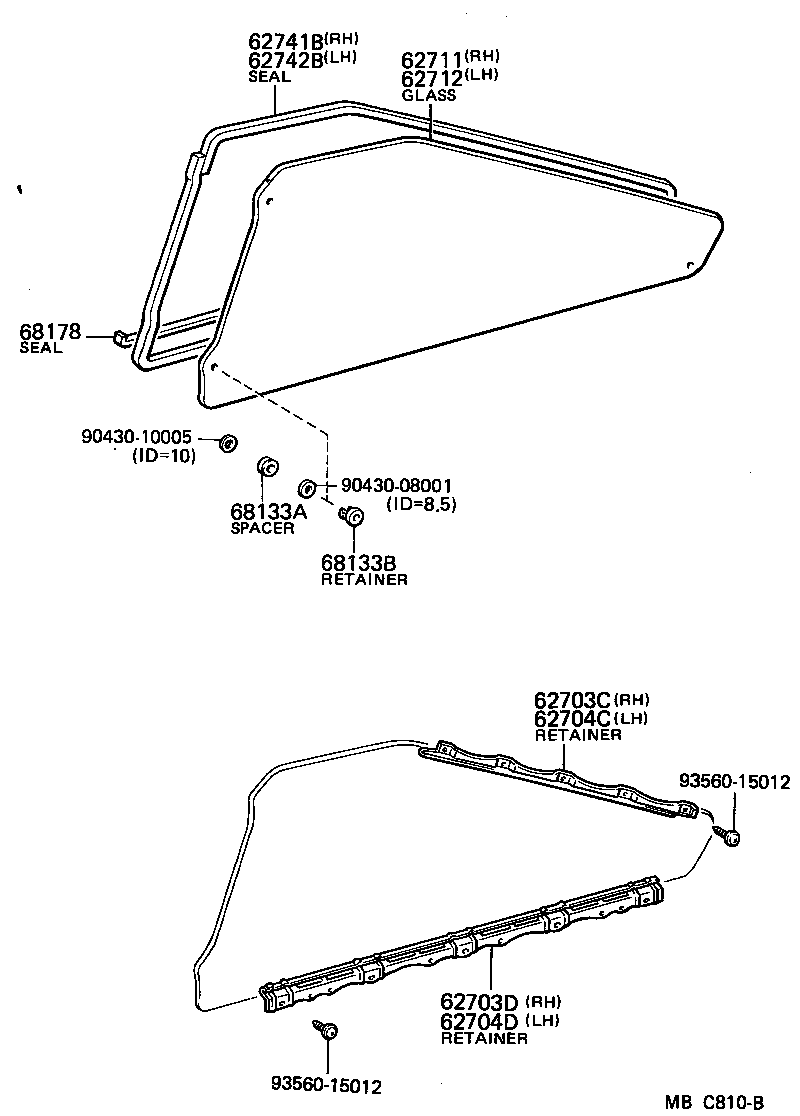

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62703C - RETAINER, QUARTER WINDOW GLASS, UPPER, RH | ||||
| 62763-14040 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 62703D - RETAINER, QUARTER WINDOW GLASS, LOWER, RH | ||||
| 62701-14010 |
AA60,RA63,SA60,TA61,63..CP |
1 | ||
| 62704C - RETAINER, QUARTER WINDOW GLASS, UPPER, LH | ||||
| 62764-14030 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 62704D - RETAINER, QUARTER WINDOW GLASS, LOWER, LH | ||||
| 62702-14010 |
AA60,RA63,SA60,TA61,63..CP |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 68133-14010 |
AA6#,RA63,SA60,TA61,63..CP T=3.5,*TT |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 68134-14010 |
AA6#,RA63,SA60,TA61,63..CP T=3.5,*TT |
1 | ||
| 62741B - SEAL, QUARTER WINDOW GLASS, RH | ||||
| 68177-14030 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 62742B - SEAL, QUARTER WINDOW GLASS, LH | ||||
| 68177-14030 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| 68133A - SPACER, QUARTER WINDOW NO.2 GLASS | ||||
| 68137-14020 |
AA6#,RA63,SA60,TA61,63..CP |
6 | ||
| 68133B - RETAINER, QUARTER WINDOW NO.2 GLASS | ||||
| 68144-14010 |
AA6#,RA63,SA60,TA61,63..CP |
6 | ||
| 68178 - SEAL, QUARTER WINDOW NO.2 GLASS | ||||
| 68178-14010 |
AA6#,RA63,SA60,TA61,63..CP |
2 | ||
| Common parts | ||||
| 90430-08001 | ||||
| 90430-10005 | ||||
| 93560-15012 | ||||
