RA63-ACMQF (1981)
Toyota Carina Fr
(8109- )AA60..SED ; (8109- )AA60..CP..SG,ST ; (8109- )AA63,CA60,RA63,SA60,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29225 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45460-19155 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19155 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45460-29225 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14020 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45514-14040 |
RA63 |
1 | ||
| 45514-14041 |
RA63 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45514-14040 |
RA63 |
1 | ||
| 45514-14041 |
RA63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45517-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14021 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=61.5 |
1 | ||
| 90461-10273 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=41.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=61.5 |
1 | ||
| 90461-10273 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=41.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14090 |
RA63,TA63 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 90106-10002 |
AA6#,CA60,RA63,SA60,TA61,63 L=31 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14090 |
RA63,TA63 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||

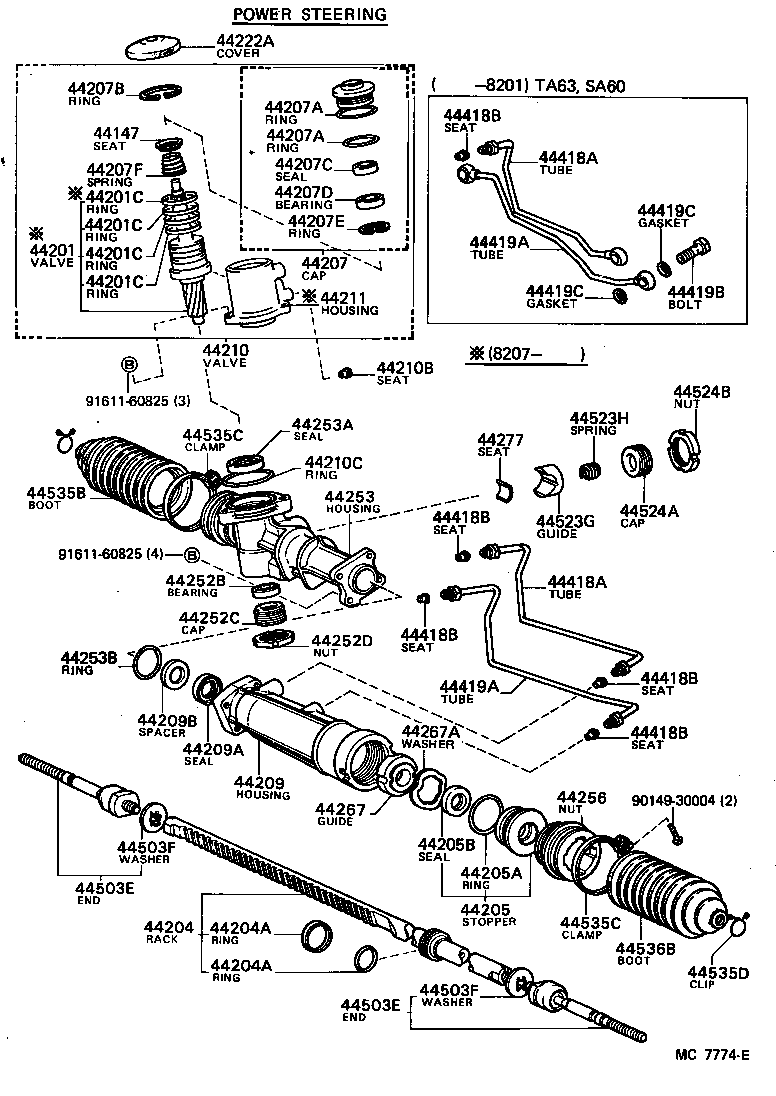

ILLUST NO. 2 OF 2(8109-8210)SA60,TA63 ; (8201-8507)AA63,TA63 ; (8202-8210)RA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14041 |
RA63,TA63 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-14011 |
RA63,TA63 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30002 |
RA63,TA63 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
CA60,RA63,SA60,TA63 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
CA60,RA63,SA60,TA63 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
CA60,RA63,SA60,TA63 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
CA60,RA63,SA60,TA63 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CA60,RA63,SA60,TA63 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
CA60,RA63,SA60,TA63 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CA60,RA63,SA60,TA63 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CA60,RA63,SA60,TA63 |
2 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||

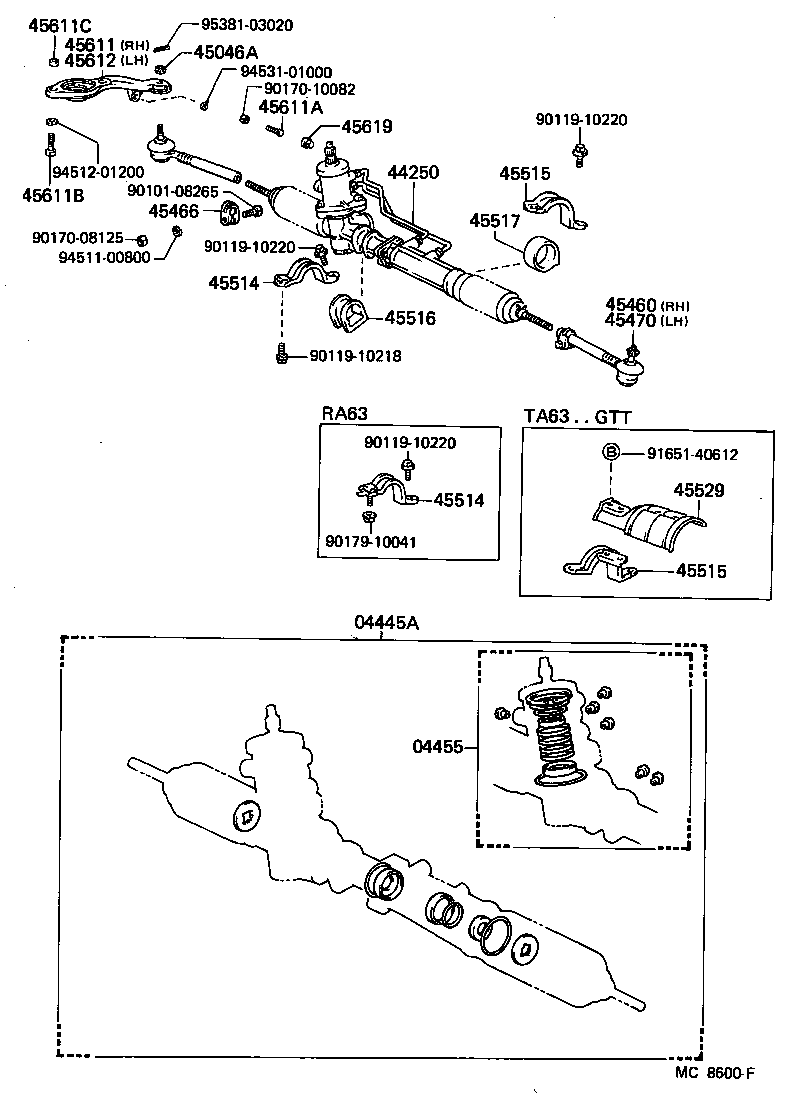

ILLUST NO. 1 OF 2(8109-8201)SA60,TA63 ; (8201-8507)AA63,TA63 ; (8202-8210)RA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-24010 |
RA63,TA63 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29225 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45460-19155 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19155 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45460-29225 |
TA63;CA60,RA63..GT,SG |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45514-14040 |
RA63 |
1 | ||
| 45514-14041 |
RA63 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45514-14040 |
RA63 |
1 | ||
| 45514-14041 |
RA63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
CA60,RA63,SA60,TA63 W/POWER STEERING |
1 | ||
| 45517-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14090 |
RA63,TA63 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 90106-10002 |
AA6#,CA60,RA63,SA60,TA61,63 L=31 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14090 |
RA63,TA63 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
