RA63-ACMQF (1981)

Toyota Carina Fr

Production Sep 1981 - Oct 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202-8210)RA63

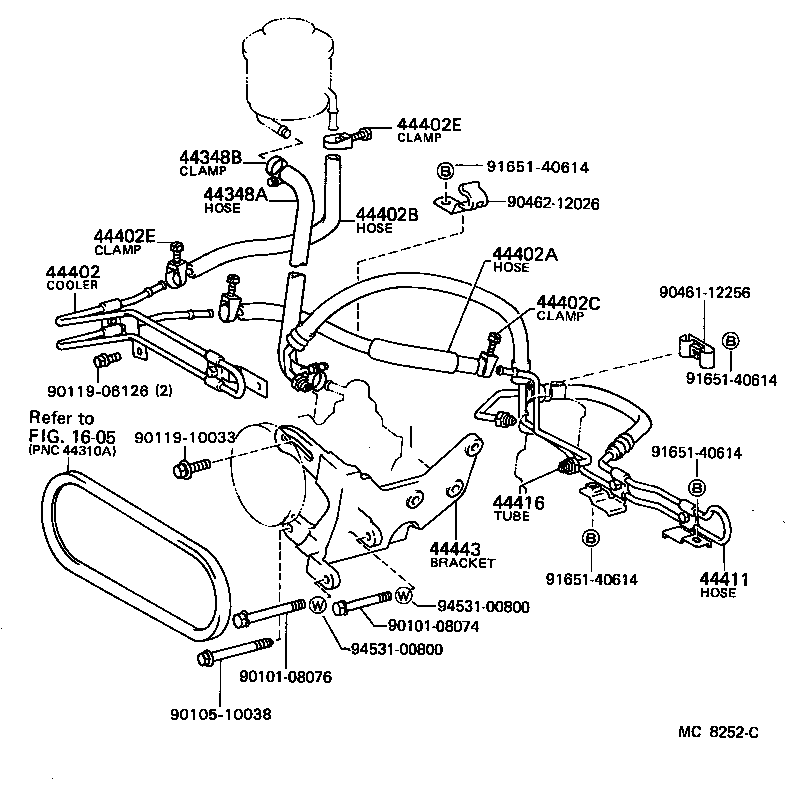

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44402 44402A 44402B 44402C 44402E 44402E 44411 44416 44443 9010108074 9010108076 9010510038 9010906126 9011910033 9046112256 9046212026 9165140614 9165140614 9165140614 9165140614 9453100800 9453100800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20040

RA63

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14050

CA60,RA63,SA60

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-20030

CA60,RA63,SA60

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-20040

RA63

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

CA60,RA63,SA60

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

CA60,RA63,SA60

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

CA60,RA63,SA60

 2
44411 - HOSE, PRESSURE FEED
44410-20050

RA63

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20030

RA63

 1
44443 - BRACKET, PUMP
44443-20040

RA63

 1
Common parts
90101-08074
90101-08076
90105-10038
90109-06126
90119-10033
90461-12256
90462-12026
91651-40614
94531-00800
Linked diagrams
1605
