RA63-ACMQF (1981)

Toyota Carina Fr

Production Sep 1981 - Oct 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )18RGEU

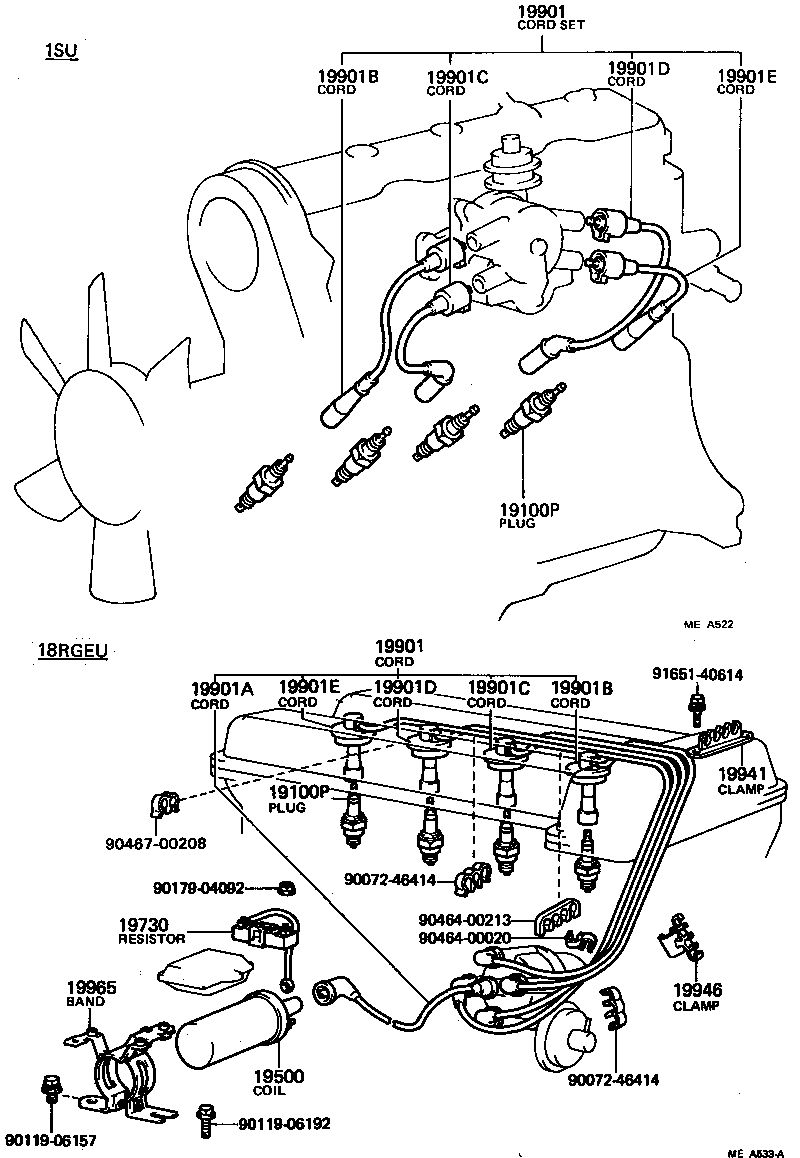

Click highlighted areas on diagram

MEA522,MEA533A

diagram 19100P 19100P 19500 19730 19901 19901 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19946 19965 9007246414 9007246414 9011906157 9011906192 9017904092 9046400020 9046400213 9046700208 9165140614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01113

18RGEU..RA63

J16AR−U11,J16AR-U11(DENSO)

 4
90919-01113

18RGEU..RA63

J16AR−U11,J16AR-U11(DENSO)

 4
90919-01114

18RGEU..RA63

BRE527Y−11,BRE527Y11(NGK)

 4
90919-01114

18RGEU..RA63

BRE527Y−11,BRE527Y11(NGK)

 4
19100P - PLUG, SPARK
90919-01113

18RGEU..RA63

J16AR−U11,J16AR-U11(DENSO)

 4
90919-01113

18RGEU..RA63

J16AR−U11,J16AR-U11(DENSO)

 4
90919-01114

18RGEU..RA63

BRE527Y−11,BRE527Y11(NGK)

 4
90919-01114

18RGEU..RA63

BRE527Y−11,BRE527Y11(NGK)

 4
19500 - COIL ASSY, IGNITION
90919-02083

18RGEU..RA63

 1
90919-02083

18RGEU..RA63

 1
19730 - RESISTOR, IGNITION COIL
90919-04030

18RGEU..RA63

 1
90919-04030

18RGEU..RA63

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21236

18RGEU..RA63

W/PS

 1
90919-21236

18RGEU..RA63

W/PS

 1
90919-21265

18RGEU..RA63

 1
90919-21265

18RGEU..RA63

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21236

18RGEU..RA63

W/PS

 1
90919-21236

18RGEU..RA63

W/PS

 1
90919-21265

18RGEU..RA63

 1
90919-21265

18RGEU..RA63

 1
19901A - CORD, COIL RESISTIVE
90919-13105

18RGEU..RA63

W/PS

 1
90919-13105

18RGEU..RA63

W/PS

 1
90919-13165

18RGEU..RA63

 1
90919-13165

18RGEU..RA63

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12238

18RGEU..RA63

 1
90919-12238

18RGEU..RA63

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12238

18RGEU..RA63

 1
90919-12238

18RGEU..RA63

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12239

18RGEU..RA63

 1
90919-12239

18RGEU..RA63

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12239

18RGEU..RA63

 1
90919-12239

18RGEU..RA63

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12240

18RGEU..RA63

 1
90919-12240

18RGEU..RA63

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12240

18RGEU..RA63

 1
90919-12240

18RGEU..RA63

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12241

18RGEU..RA63

 1
90919-12241

18RGEU..RA63

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12241

18RGEU..RA63

 1
90919-12241

18RGEU..RA63

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-88210

18RGEU..RA63

 1
19941-88210

18RGEU..RA63

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-88271

18RGEU..RA63

 1
19946-88271

18RGEU..RA63

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03075

18RGEU..RA63

 1
90919-03075

18RGEU..RA63

 1
Common parts
90072-46414
90119-06157
90119-06192
90179-04092
90464-00020
90464-00213
90467-00208
91651-40614
