RA63-ACMQF (1981)
Toyota Carina Fr
Production
Sep 1981
-
Oct 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

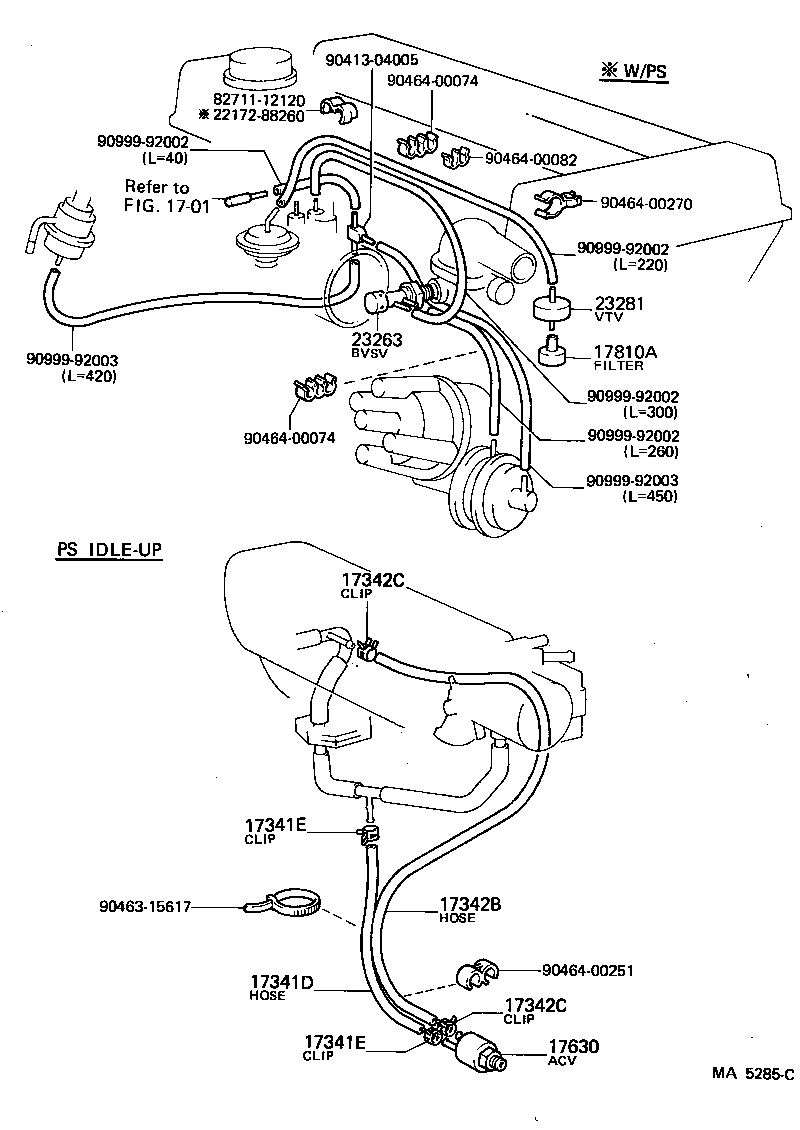

(8109-8210)18RGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-88270 |
18RGEU..RA63 W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
18RGEU..RA63 W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
18RGEU..RA63 W/PS |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-88270 |
18RGEU..RA63 W/PS |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
18RGEU..RA63 W/PS |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
18RGEU..RA63 W/PS |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28010 |
18RGEU..RA63 W/PS |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
18RGEU..RA63 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-34020 |
18RGEU..RA63 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
18RGEU..RA63 |
1 | ||
| Common parts | ||||
| 22172-88260 | ||||
| 82711-12120 | ||||
| 90413-04005 | ||||
| 90463-15617 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00251 | ||||
| 90464-00270 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(8109- )18RGEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
