RA63-ACMQF (1981)
Toyota Carina Fr

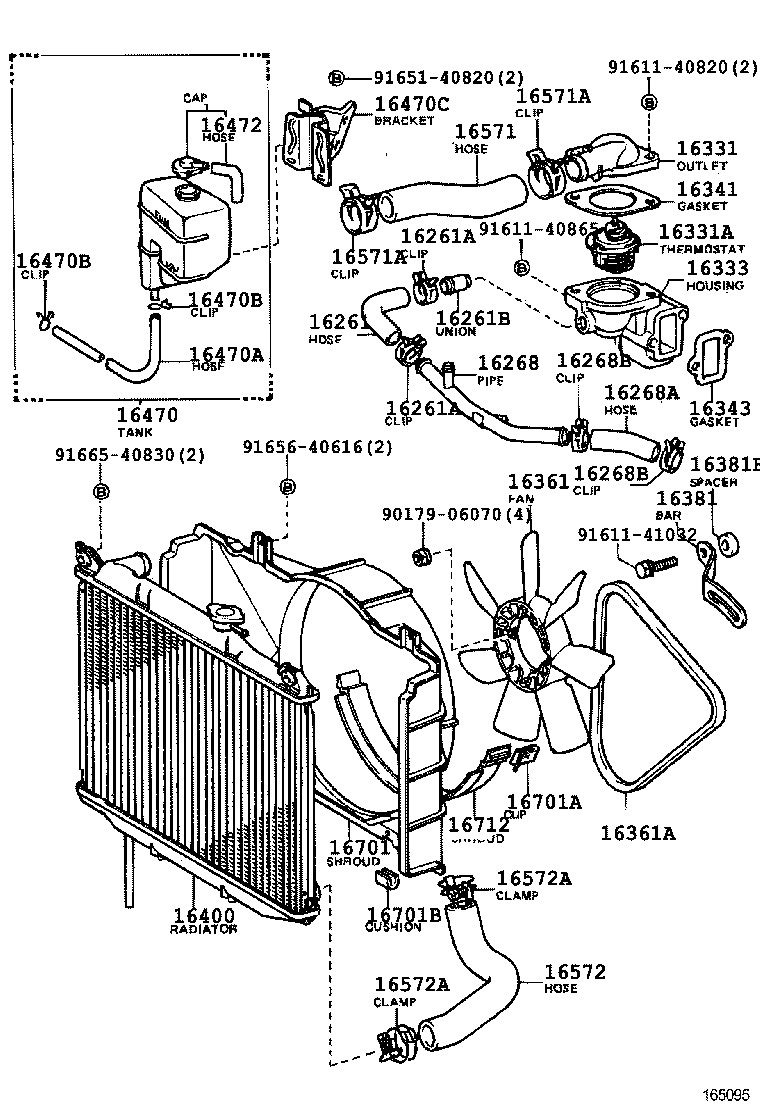

ILLUST NO. 3 OF 3(8109- )18RGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-37090 |
18RGEU..RA63 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37090 |
18RGEU..RA63 W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
18RGEU..RA63 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
18RGEU..RA63 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
18RGEU..RA63 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
18RGEU..RA63 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
18RGEU..RA63 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-37090 |
18RGEU..RA63 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
18RGEU..RA63 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35070 |
18RGEU..RA63 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
18RGEU..RA63 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
18RGEU..RA63 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
18RGEU..RA63 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35070 |
18RGEU..RA63 |
2 | ||
ILLUST NO. 1 OF 3(8109-8210)18RGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88271 |
18RGEU..RA63 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20134 |
18RGEU..RA63 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20134 |
18RGEU..RA63 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-14002 |
18RGEU..RA63 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88273 |
18RGEU..RA63 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16261-88210 |
18RGEU..RA63 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-20134 |
18RGEU..RA63 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-20134 |
18RGEU..RA63 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88270 |
18RGEU..RA63 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
18RGEU..RA63 *WAX 88-100,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-88271 |
18RGEU..RA63 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88260 |
18RGEU..RA63 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88210 |
18RGEU..RA63 |
1 | ||
| 16343-88270 |
18RGEU..RA63 |
1 | ||
| 16361 - FAN | ||||
| 16361-34030 |
18RGEU..RA63 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00850 |
18RGEU..RA63 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-34030 |
18RGEU..RA63 |
1 | ||
| 16381B - SPACER, FAN BELT ADJUSTING BAR | ||||
| 90560-10005 |
18RGEU..RA63 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37090 |
18RGEU..RA63 W/CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26080 |
18RGEU..RA63 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
18RGEU..RA63 *H,L=700 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
18RGEU..RA63 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
18RGEU..RA63 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-26010 |
18RGEU..RA63 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
18RGEU..RA63 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-34140 |
18RGEU..RA63 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
18RGEU..RA63 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
18RGEU..RA63 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-34090 |
18RGEU..RA63 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
18RGEU..RA63 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
18RGEU..RA63 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
18RGEU..RA63 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
18RGEU..RA63 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-34110 |
18RGEU..RA63 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
18RGEU..RA63 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
18RGEU..RA63 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
18RGEU..RA63 W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91611-40820 | ||||
| 91611-40865 | ||||
| 91611-41032 | ||||
| 91651-40820 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
